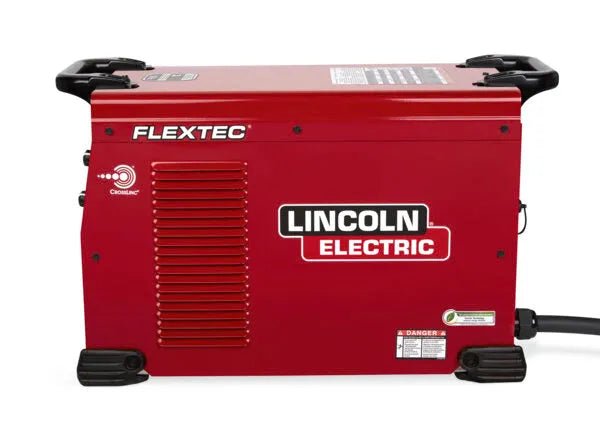

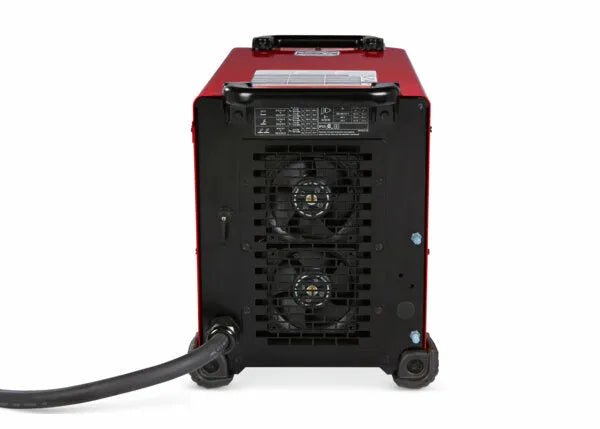

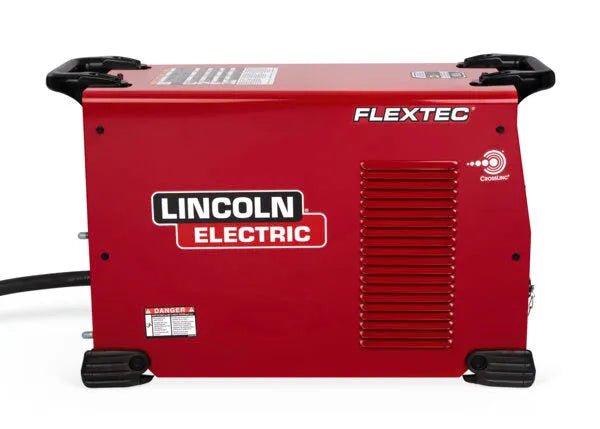

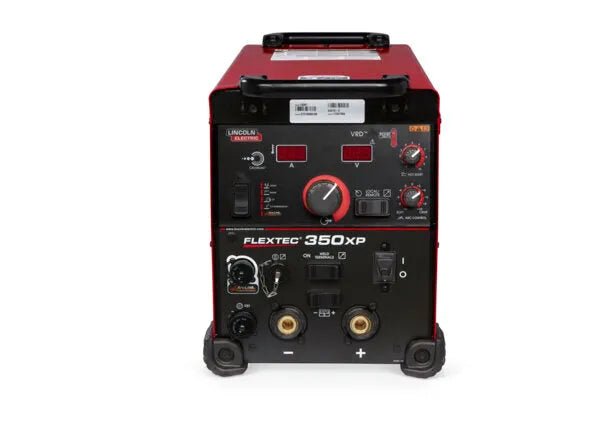

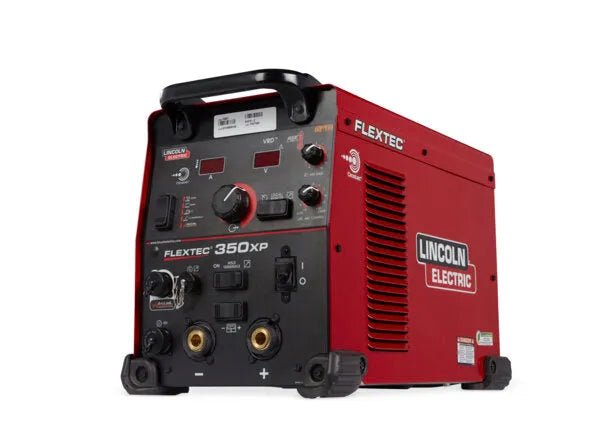

Lincoln Flextec 350XP - Power Feed 84 One-Pak - K3438-3

SKU: K3438-3
$12,915.89

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $587/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Industrial Pulsed MIG System
Overview

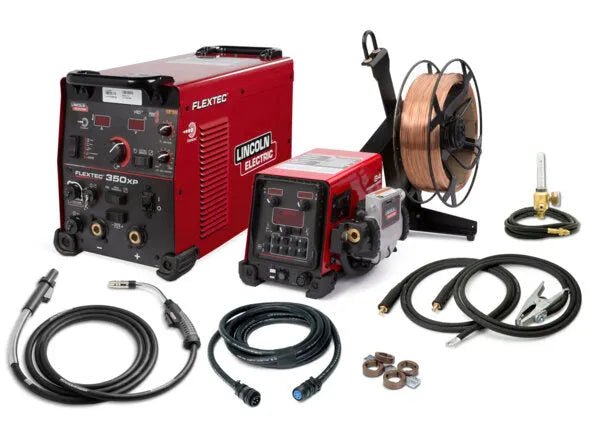

The Flextec® 350XP and Power Feed® 84 One-Pak® includes all of the features of the 350XP power source and the Power Feed® model wire feeder, along with the needed work and power leads, shielding gas regulator, and Lincoln Electric's most durable and ergonomic HDE weld gun. All of this comes in a single, easy-to-order part number. The 350XP and the digital ArcLink® Power Feed® 84 wire feeder make a system capable of supporting Pulsed MIG welding. This is the perfect solution for basic CV or Pulsed MIG in a fabrication shop setting.

Features
  • Power Feed® 84 feeder system unlocks built-in pulse programs for carbon steel, stainless steel, metal core and aluminum
  • Includes memory storage locations.
  • Ultimate process flexibility. Supports MIG, TIG, Stick, Flux-cored, and Carbon Carbon Arc Gouging
  • Proven Reliability. Based on the same proven platform as the previous Flextec machines and lab and field tested to perform in extreme environments
Specifications

Product Weights & Dimensions

Dimensions (H × W × D): 17 in × 13 in × 23 in (432 mm × 330 mm × 584 mm)
Net Weight: 159 lbs (72.1 kg)

General Specifications

Machine Processes:
• Stick (SMAW)
• Gouging (CAC-A)
• Flux-Cored (FCAW)
• TIG (GTAW)
• MIG (GMAW)
• Pulsed MIG (GMAW-P)
• Flux-Cored Self-Shielded (FCAW-S)
• Flux-Cored Gas-Shielded (FCAW-G)

Input Voltage: 380 / 460 / 575 / 3 / 50 / 60
Input Current: 18 / 17 / 17, 26 / 23 / 18
Input Hertz: 50 / 78 Hz
Input Phase: 3
Input Power: 380 / 460 / 575 / 3 / 50 / 60

Mode: CC / CV
Output Range: 5–425 A
Polarity: DC

Machine Technologies & Connections

Ingress Protection Rating: IP23
Output Range by Mode: 5–425 A

Machine Communication Technology:
• Analog
• Digital
• CrossLinc
• ArcLink

Wire Feeder Supply Voltage: 40 VDC

Amphenol Pins (Type of Connector):
• 5
• 12
• 14

Work Lead Connector Type: Tweco

Wire Feeding Specifications

Number of Driven Rolls: 4 Rolls
Feeder Type: Bench
Configuration: Single
Max Spool Diameter: 60 lb

Communication Technology: ArcLink
UI Type: Meters

Max Rated Output Capable: 500 A
Max Wire Diameter (Solid): 1/16 in (1.6 mm)
Max Wire Diameter (Cored): 5/64 in (2 mm)
Max WFS: 1200 IPM

Feedhead Configuration: Single
Wire Configuration: Single
Power Source to Feeder Communication Connector Type: 14-Pin
Accessories Communication Connector Type: None
Gun Bushing: Tweco #2–#4

Max Spool Size:
• 60 lbs
• 30 kg

Wire Feeder Processes:
• MIG
• Flux Cored

Applications

Typical Applications:
• General Fabrication

Warranty

Warranty: 5 Years
