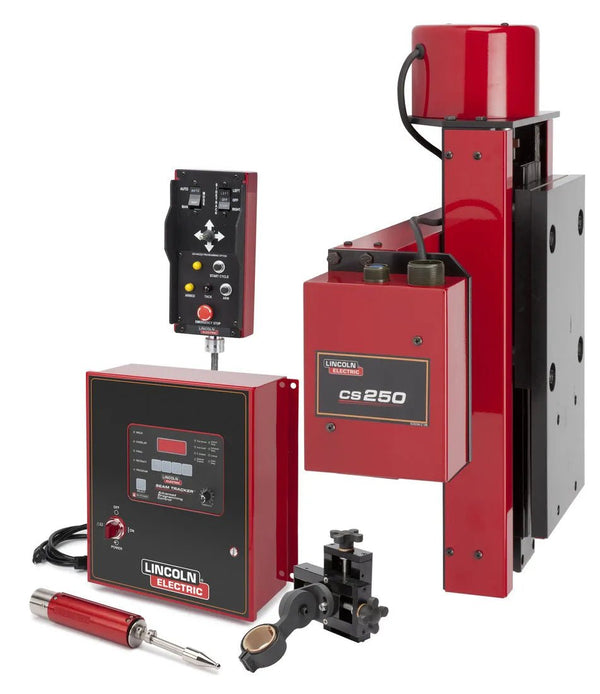

Lincoln K52008-1010-RHM ST250 10 X 10 RHM SYSTEM W/APC ONE PAK
PRECISE AUTOMATED SEAM TRACKING
Lincoln Electric tactile seam tracking systems provide accurate, automated seam tracking for submerged arc, GMAW, FCAW, and GTAW welding processes. Designed for high-volume, repetitive welding tasks, these systems offer a more consistent and cost-effective alternative to manual and semi-automatic methods. They enhance weld quality, improve process efficiency, and help reduce operational expenses. Whether you need a standard setup or a fully customized solution, these systems are built to perform in the most demanding production environments.
Specifications
Mechanized
| Mechanized Communication | analog |
| Axis 1 Name | Horizontal |
| Axis 1 Type | Linear |
| Axis 1 Length | 10 in. (254 mm) |
| Axis 1 Max Speed | 32 ipm (813 mm/min) |
| Axis 1 Max Weight Capacity | 250 lbs (114 kg) @ 12 in. (305 mm) |
| Axis 1 Control | Joystick/Seam Tracking |
| Axis 2 Name | Vertical |
| Axis 2 Type | Linear |
| Axis 2 Length | 10 in. (254 mm) |
| Axis 2 Max Speed | 32 ipm (813 mm/min) |
| Axis 2 Max Weight Capacity | 250 lbs (114 kg) @ 12 in. (305 mm) |
| Axis 2 Control | Joystick/Seam Tracking |
Application
| Typical Application | Heat Exchangers Heavy Equipment Heavy Fabrication High Pressure Piping Marine Fabrication & Repair Offshore Oil & Gas Petrochemical Petrochemical Industry Pressure Vessels Process Piping Railcar Fabrication Robotics/ Hard Automation Shipbuilding Structural Fabrication |
Warranty
| Warranty | Cross Slide, Controller - 3 Years; Probe - 1 Year; Pendant, Cables, Accessories - 90 Days |
