Lincoln Flextec 350X - PC / DLF-82 Ready-Pak (Tweco) - K5336-4

SKU: K5336-4
$13,008.71 $13,368.16
SAVE In-stock Factory Demo available — save $7,609.71 View Factory Demo - K4273-2 ›

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price

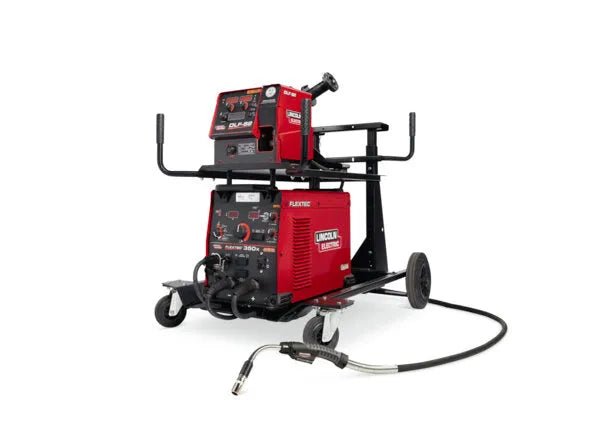

The Ready-Pak® comes with the Flextec® 350X PowerConnect® multi-process welder, DLF-82 bench wire feeder, Magnum® PRO Curve™ HDE™ 350 welding gun, and flowmeter regulator, all fully assembled on a compact cart.
Overview

The Flextec® 350X PowerConnect® / DLF-82 Ready-Pak® is the perfect 350A fabrication shop pulsed MIG system. Utilizing the tough and reliable Flextec® 350X PowerConnect® multi-process power source, the Ready-Pak® combines the DLF-82 wire feeder for a simple and reliable 350A system with the added benefit of pulsed MIG capability and true multi-process support.

Features
  • Lincoln Ready-Paks® are fully assembled. Just connect the power and add wire and shielding gas.
  • Includes assembled inverter / wire feeder cart
  • Simple to Use – For synergic setup, choose desired weld process, wire type, wire diameter and gas type.
  • Synergic weld modes = one knob control. Set higher wire feed speeds for thicker materials and lower wire feed speeds for thinner materials. Voltage is automatically adjusted.
  • Pulsed MIG Support – lower spatter, greater puddle control, more forgiving MIG process.
  • Supports input power ranging from 200-575V. Single or 3-phase.
Specifications

Product Weights & Dimensions

Dimensions (H × W × D): 58 in × 34 in × 53 in (1473.2 mm × 863.6 mm × 1346.2 mm)
Net Weight: 334 lbs (151.8 kg)

General Specifications

Machine Processes:
• Stick (SMAW)
• Gouging (CAC-A)
• Flux-Cored (FCAW)
• TIG (GTAW)
• MIG (GMAW)
• Flux-Cored Self-Shielded (FCAW-S)
• Flux-Cored Gas-Shielded (FCAW-G)

Input Voltage: 200–575 / 3 / 50 / 60
Input Current: 175 / 157 / 91 / 76 / 61
Input Hertz: 50 / 60
Input Phase: 1 / 3

Input Power:
3 Phase, 200–208 / 220–230 / 380–415 / 460 / 575 – 50 / 60 Hz
1 Phase, 380–415 / 460 / 575 – 50 / 60 Hz
1 Phase, 200–208 / 220–230 – 50 / 60 Hz

Mode Icon: CC / CV
Output Range: 5–425 A
Polarity: DC

Machine Technologies & Connections

Ingress Protection Rating: IP23
Output Range by Mode: 5–425 A

Machine Communication Technology:
• Analog
• Digital
• CrossLinc
• ArcLink

Wire Feeder Supply Voltage: 40 VDC

Amphenol Pins (Type of Connector):
• 5
• 12
• 14

Work Lead Connector Type: Tweco

Wire Feeding Specifications

Number of Driven Rolls: 2 Rolls
Feeder Type: Bench
Configuration: Single
Max Spool Diameter: 60 lb
Communication Technology: ArcLink
UI Type: Meters

Max Rated Output Capable: 600 A
Max Wire Diameter (Solid): 1/16 in (1.6 mm)
Max Wire Diameter (Cored): 5/64 in (2 mm)
Max WFS: 800 IPM

Feedhead Configuration: Single
Wire Configuration: Single
Power Source to Feeder Communication Connector Type: 5-pin
Accessories Communication Connector Type: None
Gun Bushing: Tweco #2–#4

Max Spool Size (lbs): 60
Max Spool Size (kg): 30

Wire Feeder Processes:
• MIG
• Pulsed MIG
• Flux Cored

Applications

Typical Applications:
• General Fabrication

Warranty

Warranty: 5 Years
