Why use a spool gun like the Lincoln Magnum 550 Welding Guns K598-7 for aluminum welding?

Spool guns mount a small 1 lb spool of wire directly at the gun, eliminating the long wire conduit run that causes soft aluminum wire to bird-nest in standard feeders. They are the most common solution for aluminum MIG welding on wire feeders and power sources that don't support a push-pull system.

What power source is the Lincoln Magnum 550 Welding Guns K598-7 compatible with?

The Lincoln Magnum 550 Welding Guns K598-7 is designed for use with compatible Lincoln Electric power sources. Confirm your power source has a spool gun-ready output (typically a 4-pin or similar dedicated connector) before purchasing. Not all MIG power sources support spool gun operation — check your power source's documentation or contact WeldingMart.com for compatibility confirmation.

What wire size and alloy should I use with the Lincoln Magnum 550 Welding Guns K598-7?

Spool guns most commonly use 0.030 in or 0.035 in aluminum wire (ER4043 for general purpose aluminum, ER5356 for higher-strength applications). Some models support 0.047 in (3/64 in) wire for higher deposition. Always use drive rolls sized and profiled for aluminum wire — knurled rolls will shred soft aluminum wire.

How do I maintain the Lincoln Magnum 550 Welding Guns K598-7?

Keep the Lincoln Magnum 550 Welding Guns K598-7 clean by blowing out the wire path with compressed air, inspecting the liner for kinks, and replacing contact tips when worn (aluminum wears tips faster than steel). Check cable connections for secure fit after every use. Avoid dragging the cable over sharp edges or leaving it kinked, which can damage the internal conduit.

What warranty does the Lincoln Magnum 550 Welding Guns K598-7 carry?

The Lincoln Magnum 550 Welding Guns K598-7 is backed by a 90 Days warranty from Lincoln Electric. Consumable items such as contact tips, nozzles, and liners are not covered. Register your product and retain your purchase documentation for warranty claims.

Lincoln Magnum 550 Welding Guns K598-7

SKU: K598-7

$1,015.21 ~~$1,196.70~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

Magnum® Semi-Automatic MIG welding gun with 60% Duty Cycle at 550A.

Overview

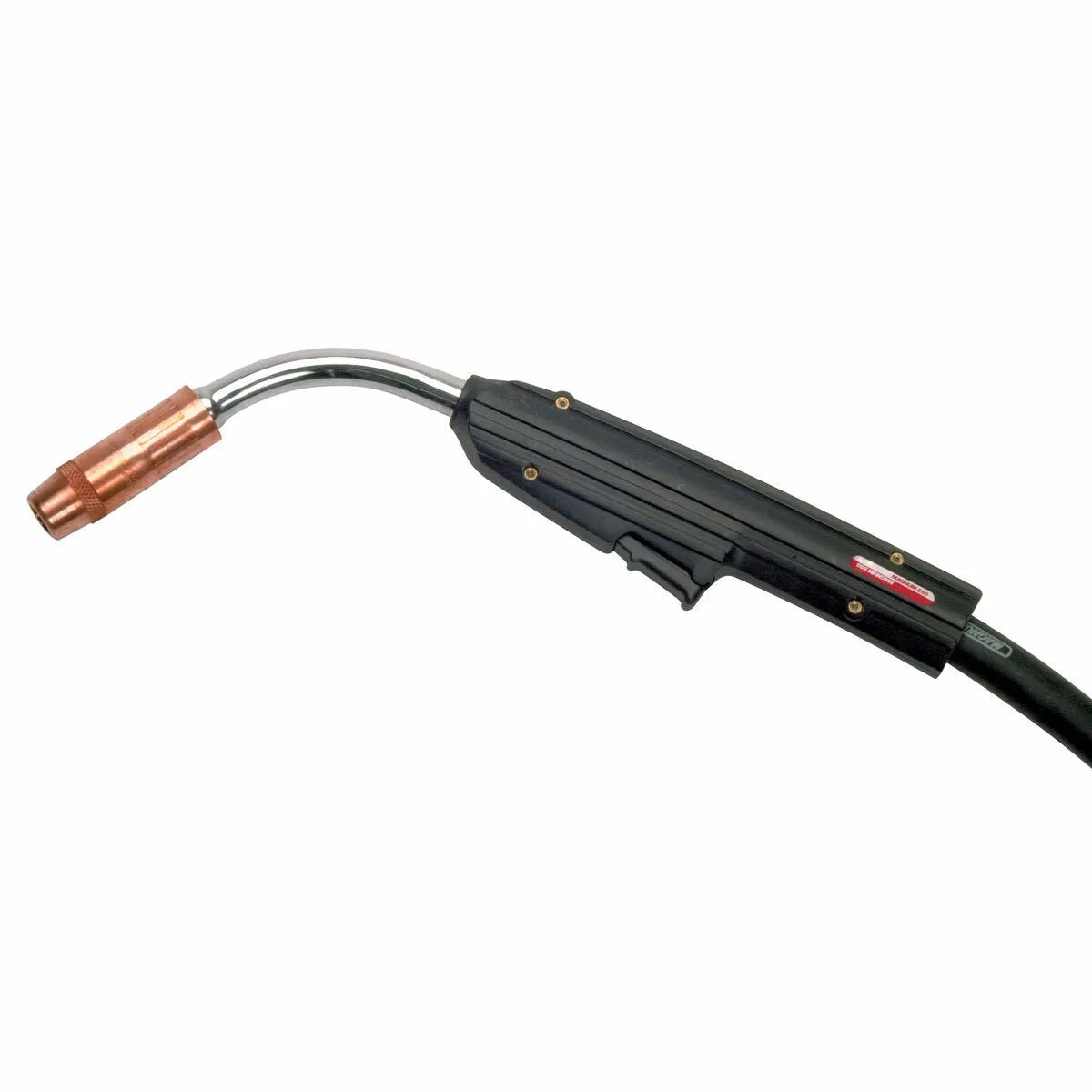

Lincoln Magnum 550 Welding Guns K598-7

Magnum guns for MIG or flux-cored welding feature our classic curved handle and are available in a number of amperage ranges for use in many applications.

Features

Heavy duty applications including up to .052 in. and .062 in. (1.3 and 1.6 mm) MIG or 3/32-1/8 in. (2.4-3.2 mm) gas-shielded flux-cored applications.
One-piece modular trigger assembly Molded out of high heat resistant material to withstand head and spatter and ensure long life.
Gun tube design Armored with an electrically insulated metal jacket optimizing fine wire welding performance.
Abrasion-resistant, extruded rubber jacket - Adds strength and long life to the cable.
Classic curved handle Lightweight and balanced, providing a comfortable grip to reduce fatigue.

Specifications

Feature	Value
Processes	Flux-Cored (FCAW) MIG (GMAW)

Includes

Contact Tip Gas Diffuser Gas Nozzle Insulator Cable Liner Gun Tube (60°)
