What wire size and alloy should I use with the Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1?

Spool guns most commonly use 0.030 in or 0.035 in aluminum wire (ER4043 for general purpose aluminum, ER5356 for higher-strength applications). Some models support 0.047 in (3/64 in) wire for higher deposition. Always use drive rolls sized and profiled for aluminum wire — knurled rolls will shred soft aluminum wire.

Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1

Q: Why use a spool gun like the Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1 for aluminum welding?

Spool guns mount a small 1 lb spool of wire directly at the gun, eliminating the long wire conduit run that causes soft aluminum wire to bird-nest in standard feeders. They are the most common solution for aluminum MIG welding on wire feeders and power sources that don't support a push-pull system.

Q: What power source is the Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1 compatible with?

The Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1 is designed for use with compatible Lincoln Electric power sources. Confirm your power source has a spool gun-ready output (typically a 4-pin or similar dedicated connector) before purchasing. Not all MIG power sources support spool gun operation — check your power source's documentation or contact WeldingMart.com for compatibility confirmation.

Q: How do I maintain the Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1?

Keep the Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1 clean by blowing out the wire path with compressed air, inspecting the liner for kinks, and replacing contact tips when worn (aluminum wears tips faster than steel). Check cable connections for secure fit after every use. Avoid dragging the cable over sharp edges or leaving it kinked, which can damage the internal conduit.

Q: What warranty does the Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1 carry?

The Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1 is backed by a 90 Days warranty from Lincoln Electric. Consumable items such as contact tips, nozzles, and liners are not covered. Register your product and retain your purchase documentation for warranty claims.

SKU: K4871-1

$286.36 ~~$388.29~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

Magnum® PRO Semi-Automatic MIG welding gun with 100A 100% mixed gas duty cycle with 10 ft. cable and is a direct replacement for the MDX™-100 and M-100.

Overview

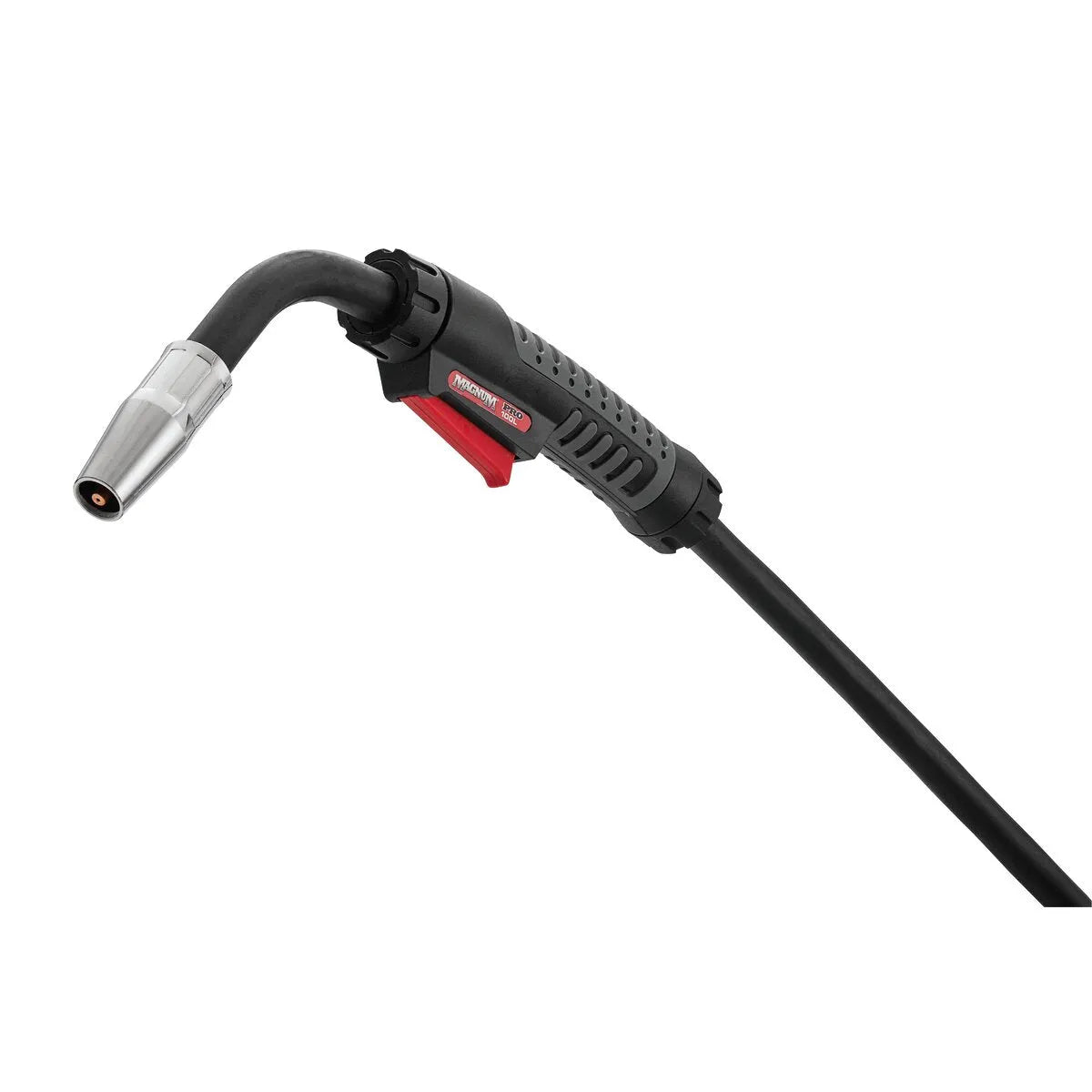

Lincoln Magnum PRO 100L Welding Gun Miller Connector, 10 ft (3 m) K4871-1

The Magnum PRO 100L is the most lightweight and compact gun in the Magnum PRO L-series family. It is ideal for most home, farm, and small shop projects, as well as auto body work and light maintenance and repair applications.

Features

Premium Tip Performance The large mass of the Magnum PRO Copper Plus°Contact tips help disperse heat, keeping tips cooler and expanding their life. TheAnti-Seize threads prevent tips from seizing in the diffuser
Comfortable Grip The lightweight curved handle with soft rubber over moldingenhances comfort and allows for an easier grip of the gun
100% Duty Cycle The 100L runs at 100% duty cycle using mixed gas, helping itwithstand tough jobs
Wire Diameter Range 0.25-0.45 in (0.6 1.2 mm)
Competitive Machine Compatibility The Magnum PRO 175L Welding Gun with Miller connector allows for direct connection to a number of Miller retail machines

Includes

(1) Welding Gun with 10 ft (3m) Cable
(1) KP2744-025T Tapered Contact Tip 0.025 in
(1) KP2744-035T Tapered Contact Tip 0.035 in
(1) KP3076-1 Gas Diffuser
(1) KP3075-1-50F Gas Nozzle
(1) KP35-40-15 Gun Liner
(1) Integrated Gun Connector (Miller)
