What wire size and alloy should I use with the Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2?

Spool guns most commonly use 0.030 in or 0.035 in aluminum wire (ER4043 for general purpose aluminum, ER5356 for higher-strength applications). Some models support 0.047 in (3/64 in) wire for higher deposition. Always use drive rolls sized and profiled for aluminum wire — knurled rolls will shred soft aluminum wire.

How do I maintain the Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2?

Keep the Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2 clean by blowing out the wire path with compressed air, inspecting the liner for kinks, and replacing contact tips when worn (aluminum wears tips faster than steel). Check cable connections for secure fit after every use. Avoid dragging the cable over sharp edges or leaving it kinked, which can damage the internal conduit.

Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2

Q: Why use a spool gun like the Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2 for aluminum welding?

Spool guns mount a small 1 lb spool of wire directly at the gun, eliminating the long wire conduit run that causes soft aluminum wire to bird-nest in standard feeders. They are the most common solution for aluminum MIG welding on wire feeders and power sources that don't support a push-pull system.

Q: What power source is the Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2 compatible with?

The Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2 is designed for use with compatible Lincoln Electric power sources. Confirm your power source has a spool gun-ready output (typically a 4-pin or similar dedicated connector) before purchasing. Not all MIG power sources support spool gun operation — check your power source's documentation or contact WeldingMart.com for compatibility confirmation.

Q: What warranty does the Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2 carry?

The Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2 is backed by a 90 Days warranty from Lincoln Electric. Consumable items such as contact tips, nozzles, and liners are not covered. Register your product and retain your purchase documentation for warranty claims.

SKU: K4874-2

$476.01 ~~$651.39~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

Magnum® PRO Semi-Automatic MIG welding gun with 250A 100% mixed gas duty cycle.

Overview

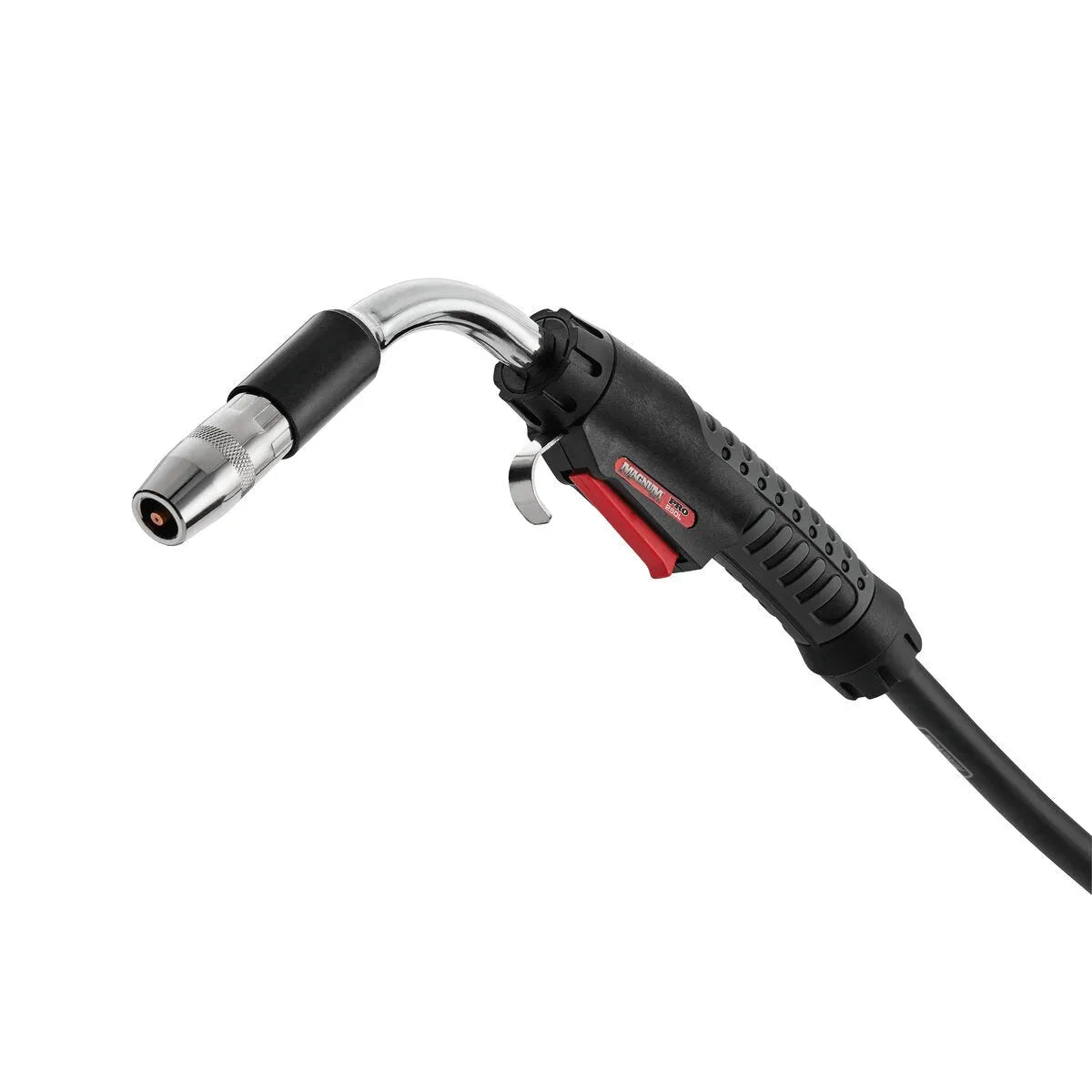

Lincoln Magnum PRO 250L Welding Gun K466-10 Connector, 15 ft K4874-2

The Magnum PRO 250L is the most durable gun of the Magnum PRO L-series family. With sufficient amperage for bigger jobs, the Magnum PRO 250L is recommended for mediumduty job shop and production applications.

Features

Premium Tip Performance The large mass of the Magnum PRO Copper Plus contacttips help disperse heat, keeping tips cooler and expanding their life. The Anti-Seize threads prevent tips from seizing in the diffuser
Comfortable Grip The lightweight curved handle with soft rubber over molding enhances comfort and allows for an easier grip of the gun
100% Duty Cycle The 250L runs at 100% duty cycle using mixed gas, helping it withstand tough jobs
Chrome Plated Gun Tube The chrome plating prevents spatter from adhering to thegun tube, making it last longer
Wire Diameter Range 0.25-0.45 in (0.6 1.2 mm)
Compatible with the LF-72, LF-74, Flex Feed 74HT, Flex Feed 84, LN-25 PRO, LN-25X, Activ8, Activ8X, and Power Feed 10, 10M, 25M & 84.

Includes

(1) Welding Gun with 15 ft Cable
(1) KP2744-025T Tapered Contact Tip 0.025 in
(1) KP2744-035T Tapered Contact Tip 0.035 in
(1) KP2746-1 Gas Diffuser
(1) KP2742-1-50F Flush Thread-On Gas Nozzle 0.5 in
(1) KP42-4045-15 Gun Liner
(1) K466-10 Connector
