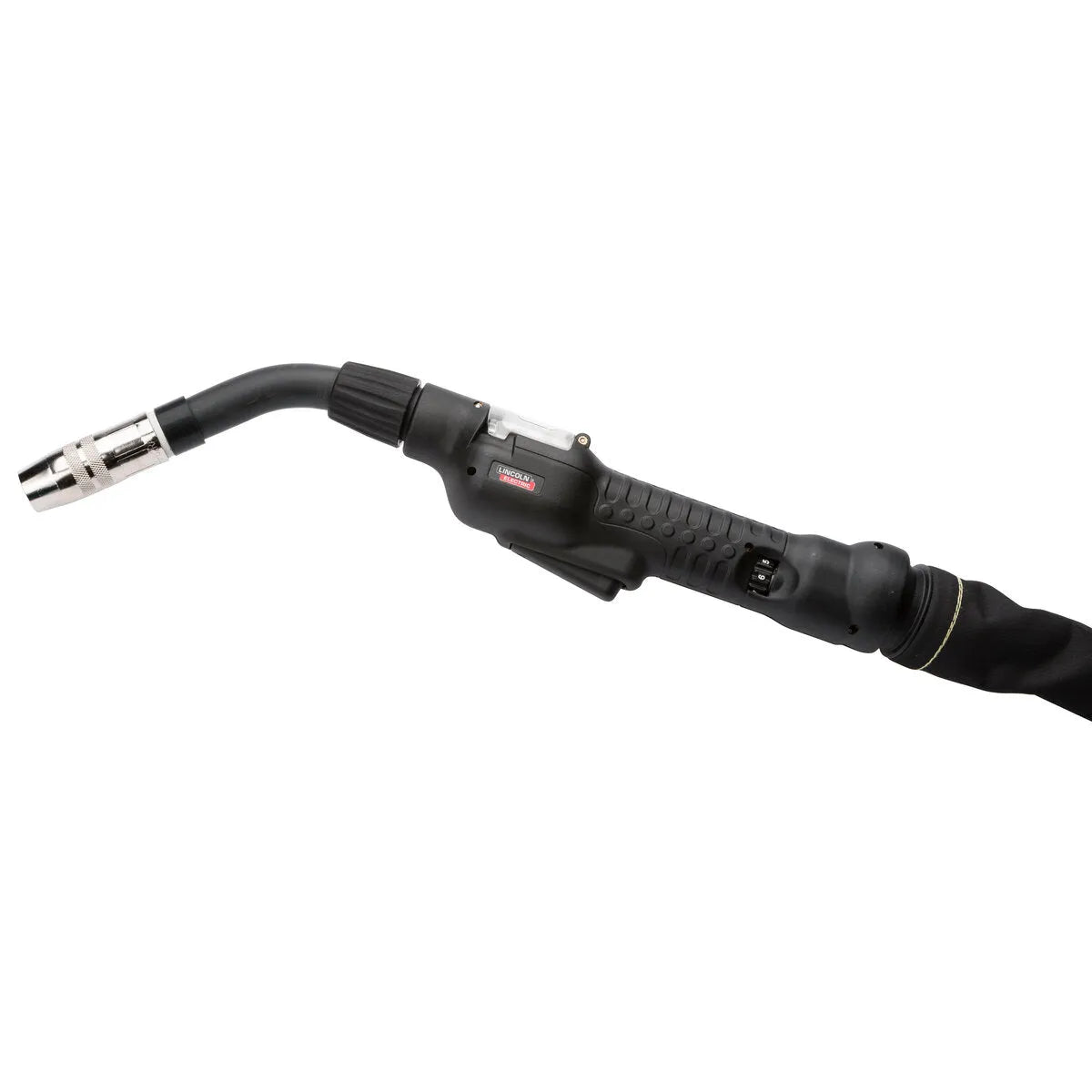

The Lincoln Electric Magnum PRO AL FC 450 Water-Cooled Front Trigger MIG Welding Gun is a 450-amp heavy-duty gun for high-duty-cycle aluminum MIG/GMAW and FCAW production welding. Water cooling sustains safe gun and cable temperatures at amperage levels and arc-on times that would quickly overheat an air-cooled gun. The front trigger positions the switch at the front of the handle — ergonomically preferred for overhead, vertical, and high-repetition welding positions.
Available with a 12-pin Lincoln Electric feeder connection in cable lengths of 15 ft, 25 ft, 35 ft, and 50 ft, the Magnum PRO AL FC 450 FT adapts to close-proximity and extended-reach production setups. Field-replaceable consumables — tips, nozzles, and liners — keep the gun in service without full replacement.
- K4798-1 – Magnum PRO AL FC 450 Water-Cooled, 12-Pin, Front Trigger, 15 ft
- K4798-2 – Magnum PRO AL FC 450 Water-Cooled, 12-Pin, Front Trigger, 25 ft
- K4798-3 – Magnum PRO AL FC 450 Water-Cooled, 12-Pin, Front Trigger, 35 ft
- K4798-4 – Magnum PRO AL FC 450 Water-Cooled, 12-Pin, Front Trigger, 50 ft
- 450-amp water-cooled rating — sustained high-duty-cycle capability beyond air-cooled gun limits
- Front trigger ergonomics — preferred for overhead, out-of-position, and high-repetition welding
- 12-pin connection — full compatibility with Lincoln Electric wire feeders and power sources
- Aluminum and flux-cored wire capable — GMAW aluminum and FCAW structural processes from one gun
- Four cable lengths: 15 ft, 25 ft, 35 ft, 50 ft — close-in and extended-reach production layouts
- Water cooling circuit — maintains safe temperatures during sustained 450A production welding
- Field-replaceable consumables — tips, nozzles, and liners serviceable for continuous uptime
- High-duty-cycle aluminum GMAW in shipbuilding, aerospace, and heavy transportation manufacturing
- Heavy FCAW structural welding on construction, bridge, and offshore applications
- Pressure vessel and heat exchanger fabrication at sustained high amperage
- Production lines where cycle times exceed air-cooled gun capacity
- Robotic-adjacent manual high-deposition welding requiring extended arc-on time
The Lincoln Electric Magnum PRO AL FC 450 Front Trigger MIG gun delivers 450-amp water-cooled performance for high-deposition aluminum GMAW and FCAW environments where air-cooled guns cannot keep pace. Front trigger ergonomics, 12-pin feeder compatibility, four cable length options, and field-replaceable consumables make the Magnum PRO AL FC 450 FT the engineered solution for the most demanding high-duty-cycle production welding.
