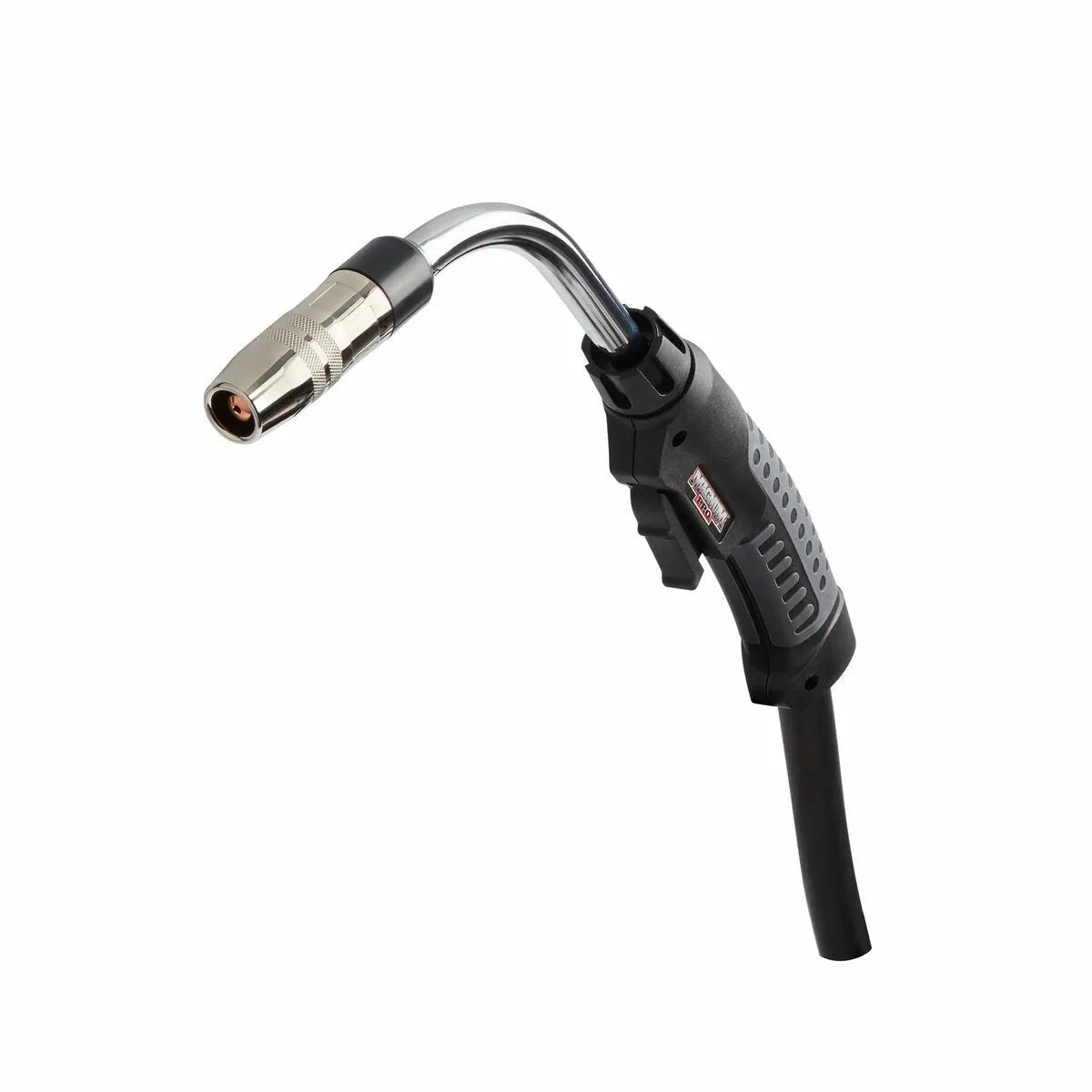

The Lincoln Electric Magnum PRO Curve HDE 450 is a heavy-duty MIG/GMAW welding gun rated for 450 amperes, built for high-deposition operations in structural, shipbuilding, heavy equipment, and industrial fabrication environments. The K4533 series handles large-diameter solid and cored wire electrodes — including 5/64 in (2.0 mm) and 3/32 in (2.4 mm) — that drive the highest semi-automatic GMAW and FCAW-G deposition rates. Like its 250A and 350A siblings, the 450 features Lincoln Electric's ergonomic curved HDE handle for reduced wrist fatigue and improved torch control during demanding structural passes and heavy plate work.
- K4533-1 – Magnum PRO Curve HDE 450 welding gun, 10 ft cable
- K4533-2 – Magnum PRO Curve HDE 450 welding gun, 15 ft cable
- K4533-3 – Magnum PRO Curve HDE 450 welding gun, 20 ft cable
- K4533-4 – Magnum PRO Curve HDE 450 welding gun, 25 ft cable
- K4533-2-10-564 – Ready-Pak, 5/64 in wire, K466-10 connector, 15 ft
- K4533-2-3-332 – Ready-Pak, 3/32 in wire, K466-3 connector, 15 ft
- K4533-2-3-564 – Ready-Pak, 5/64 in wire, K466-3 connector, 15 ft
- K4533-2-7-332 – Ready-Pak, 3/32 in wire, K466-7 connector, 15 ft
- 450-ampere rating for maximum-output GMAW and FCAW-G operations
- Supports large-diameter wire: 5/64 in (2.0 mm) and 3/32 in (2.4 mm) for the highest semi-automatic deposition rates
- Heavy-gauge cable and power conductor engineered for sustained high-current production use
- Curved HDE handle reduces wrist strain when operating a heavier-gauge cable assembly
- Ergonomic trigger placement for comfortable activation with gloved hands in all positions
- Ready-Pak configurations include liner pre-matched to 5/64 in or 3/32 in wire with K466-3, K466-7, or K466-10 feeder connector
- Eliminates liner sizing errors and feeder connection mismatches in high-production environments
- Compatible with Magnum PRO 450A contact tips, heavy-duty nozzles, and gas diffusers
- Heavy structural steel fabrication with large-diameter MIG/GMAW solid wire
- High-deposition FCAW-G production welding on thick plate
- Shipbuilding and offshore platform construction
- Bridge and infrastructure construction requiring maximum semi-automatic deposition
- Heavy equipment manufacturing and pressure vessel fabrication
When production demands maximum deposition with 5/64 in and 3/32 in wire, the Magnum PRO Curve HDE 450 is the purpose-built solution. Eight K4533 configurations combine Lincoln Electric's ergonomic HDE handle with the thermal and electrical capacity for 450A GMAW and FCAW-G, with Ready-Pak assemblies that take the guesswork out of liner and connector selection for large-diameter wire applications.
