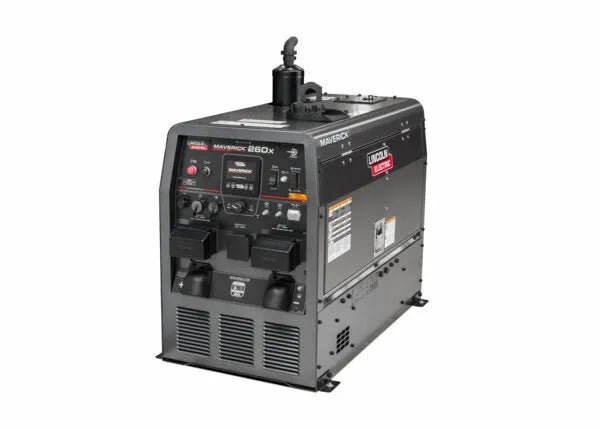

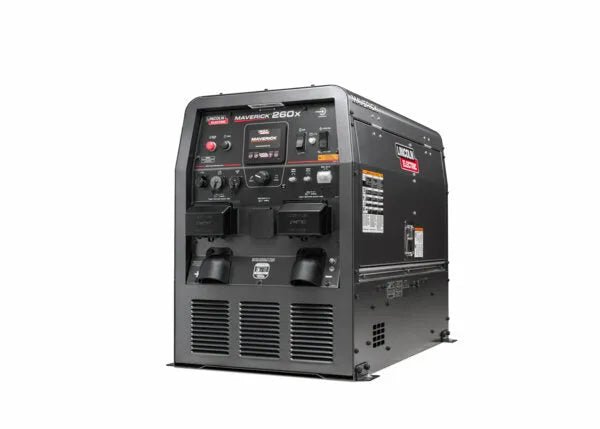

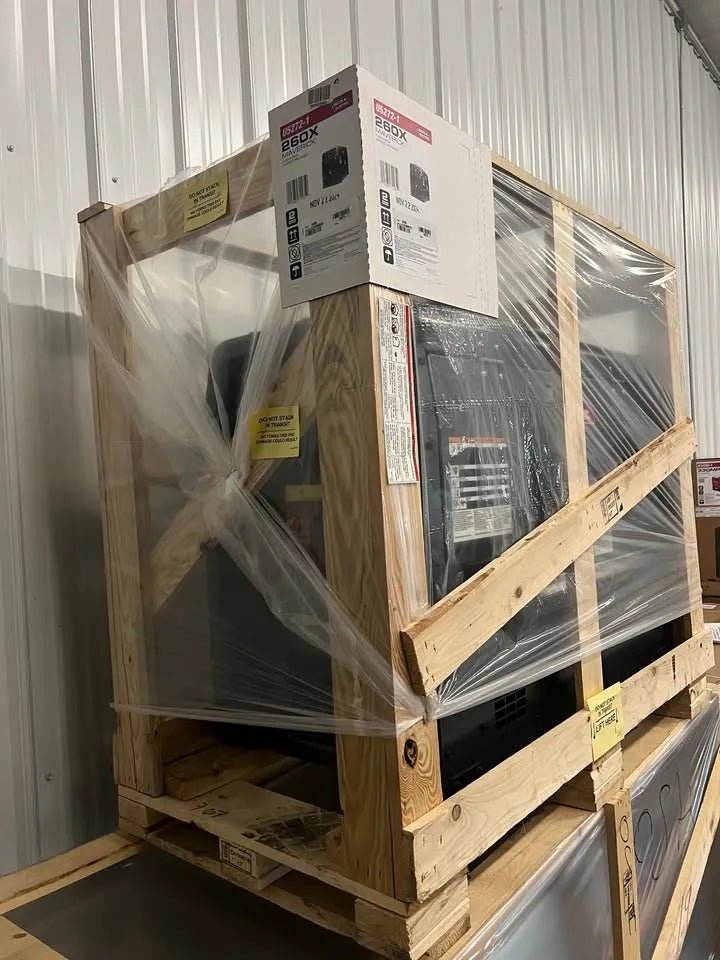

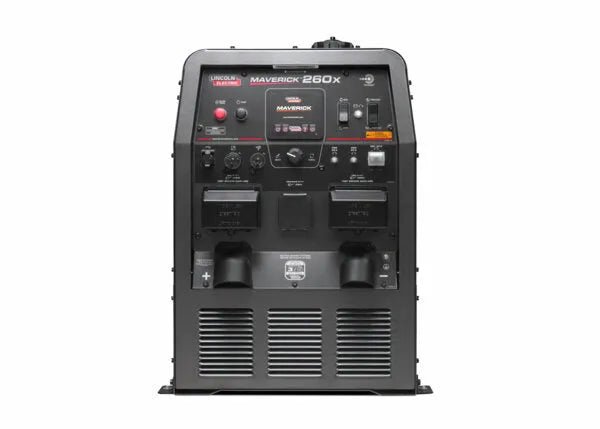

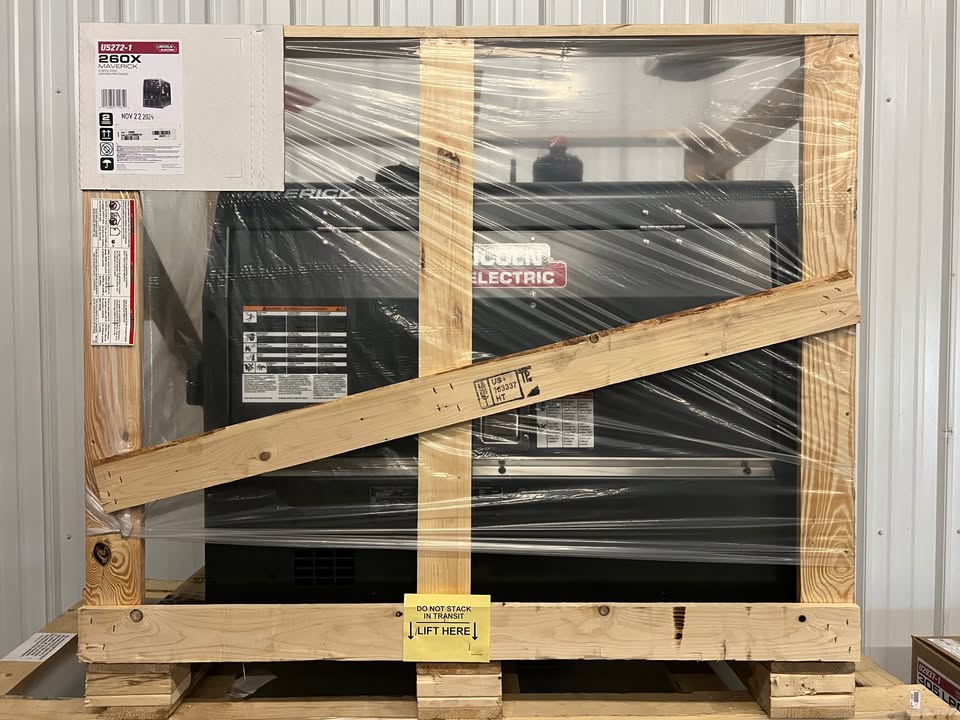

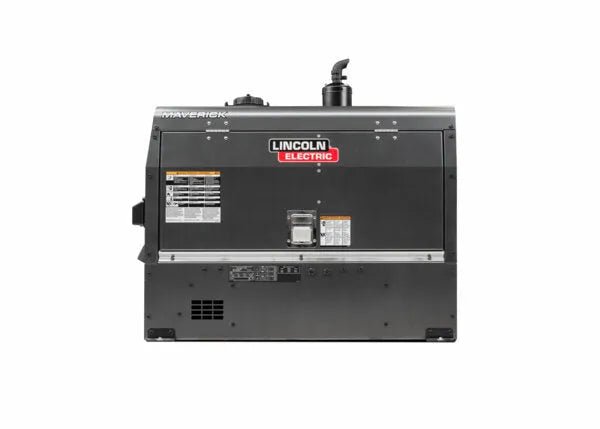

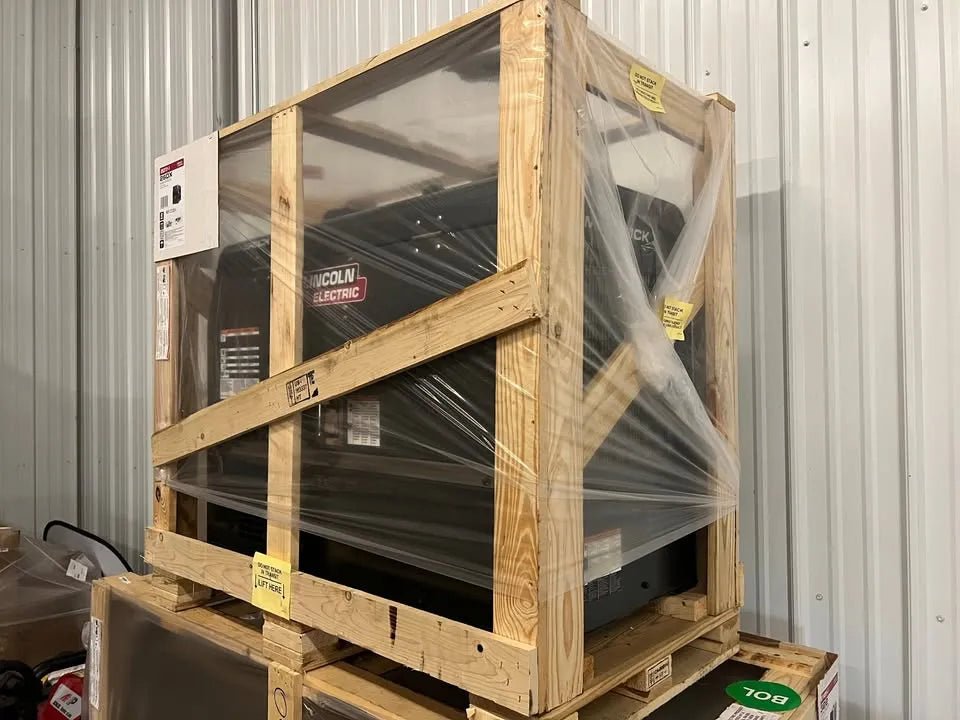

Lincoln Maverick 260X Low Hour Factory Demo Model Welder/Generator Engine Drive - U5272-1
Compare With K2937-1
Full Three Year Factory Warranty
The Lincoln Maverick 260X represents the next generation of engine-driven welding technology, delivering an unmatched combination of power, efficiency, and digital intelligence in a compact footprint. This advanced welding system redefines jobsite productivity with its innovative CrossLinc technology, allowing welders to make parameter adjustments directly at the weld location without returning to the power source or running additional control cables. The result is dramatically improved workflow efficiency, enhanced workplace safety, and superior weld quality across construction sites, pipeline operations, and maintenance applications.
At the core of the Maverick 260X is a sophisticated digital control system featuring a rugged 4.6-inch weatherproof LCD interface that provides unprecedented control over welding parameters, machine diagnostics, and operational settings. This industrial-grade display withstands harsh environments while delivering intuitive access to process setup menus, maintenance scheduling, and PIN authorization features that prevent unauthorized use. The intelligent control system integrates seamlessly with the machine's auto start/stop technology, which automatically idles down the engine when welding isn't being performed and instantly restarts when welding is needed, significantly reducing fuel consumption, minimizing noise pollution, and extending engine life.

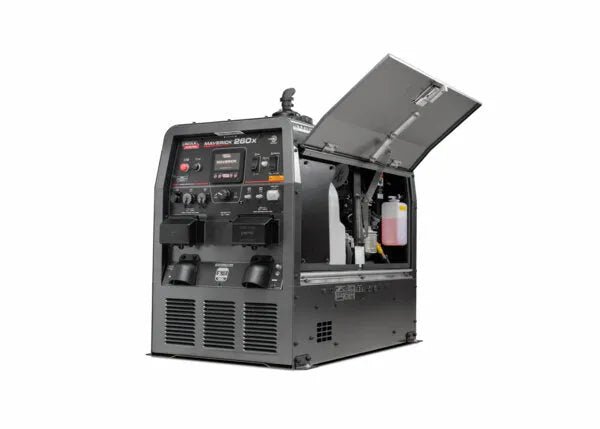

The Maverick 260X is engineered around a powerful Kubota Z602 diesel engine that combines exceptional reliability with remarkable fuel efficiency. This advanced 2-cylinder water-cooled power plant meets stringent EPA Tier 4 Final emissions standards while delivering consistent performance in demanding environments. The engine's efficient design works in harmony with the machine's advanced auto start/stop system to maximize operational runtime while minimizing fuel consumption and maintenance requirements. With a generous 12-gallon fuel capacity, the Maverick 260X provides extended operation between refueling, maximizing productivity on remote jobsites where time is critical.
Professional welders will appreciate the Maverick 260X's exceptional multi-process capabilities, delivering up to 300 amps of welding output for stick, TIG, MIG, and flux-cored applications. The system excels in specialized stick welding applications with optimized arc characteristics for various electrode types, while its precision-engineered CV wire welding performance supports both solid and flux-cored wires with superior arc stability. The direct-connect spool gun compatibility enhances aluminum welding performance without additional interface modules, creating a truly versatile welding platform capable of handling virtually any jobsite requirement with ease.
Beyond its impressive welding capabilities, the Maverick 260X functions as a powerful 9kW generator, providing clean, stable single-phase power for jobsite tools, lighting, and auxiliary equipment. This substantial auxiliary power remains consistent regardless of welding operations, ensuring reliable performance for critical power needs. The comprehensive connection panel features both NEMA 5-20R and NEMA 14-50R receptacles for maximum versatility, while the integrated USB port facilitates software updates and data transfer capabilities. With its industry-leading combination of welding performance, digital intelligence, and fuel-saving technology, the Lincoln Maverick 260X establishes a new benchmark for professional engine-driven welding systems.
Features
- Compact Power – Plenty of power for your work truck or job site with up to 300A of welding output and 9kW of clean, single-phase power.
- Optimized Performance – A multi-process workhorse with specialized stick, wire welding, and direct-connect spool gun capabilities for all your jobsite needs.
- Greater Machine Control – Durable, 4.6 inch digital display for full machine control - including process setup, maintenance reminders, and PIN authorization.
- CrossLinc Enabled – Change welding parameters at the arc without an additional control cable - helping to increase productivity, promote safety, and improve weld quality.
- Auto-Stop/Start Technology – Save on fuel, avoid excess idling and reduce engine wear.
Specifications
| Dimensions (H x W x D) | 39.25 in x 21.25 in x 42.34 in (997 mm x 540 mm x 1076 mm) |
| Net Weight | 620 lbs (281 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Open Circuit Voltage | 80 Peak OCV at 3600 RPM |
| IEC Rating | 260A / 30.4V / 100% @ 104°F (40°C) |
| Output Range by Mode | Stick (SMAW): 35 - 300 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 13 - 40 Volts DC TIG (GTAW): 25 - 300 Amps Arc Gouging (CAC-A): 100 - 300 Amps |
| Rated Gouging Carbon Diameter | 3/16 in (5.0 mm) |
| Data Technologies | USB |
| Machines Communication Technology | CrossLinc |
| Amphenol Pins (type of connector) | 6 7 |
| Single Phase Auxiliary Output | 9,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R |
| Engine Brand & Model | Kubota Z602 |
| Engine Description | 2 Cylinder Naturally Aspirated Water Cooled Diesel Engine |
| Engine Horsepower | 16.8 hp (12.36 kW) |
| Engine Block Size & Displacement | 36.55 cu. in (599 L) Bore x Stroke - 2.83 in x 2.90 in (72 mm x 73.6 mm) |
| Emissions Rating | US EPA Tier 4 Final |
| High Idle Operating Speed @ Rated Output | 3600 |
| Low Idle Operating Speed | 2500 |
| Sound Rating @23 ft. (7m) | Idle: 77.1 dB Max Load: 82.6 dB |
| Fuel Tank Size (US gal.) | 12 US gal. |
| Fuel Tank Size (L) | 45.4 L |
| Oil Capacity (qts.) | 2.64 qts. |
| Oil Capacity (L) | 2.5 L |
| Coolant Capacity (US gal.) | 0.74 US gal. |
| Coolant Capacity (L) | 3.1 L |
| Max OCV | 80 OCV |
| Typical Application | Construction Repair Welding Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
