The Lincoln Electric Maverick™ 325X Engine-Driven Welder Generator is a Kubota diesel-powered welding system delivering 325 amps for field MIG/GMAW, Stick/SMAW, TIG/GTAW, and FCAW operations away from utility power. Built for pipeline contractors, structural ironworkers, and field maintenance crews, the Maverick 325X combines Kubota diesel reliability with Lincoln Electric welding arc technology in a truck-transportable package.
Available in base, factory demo, and Ready-Pak 1, 2, and 3 configurations, the Maverick 325X simplifies field procurement and ensures crews arrive with matched accessories ready to weld.
- K3581-1 – Maverick 325X Kubota Engine-Driven Welder/Generator
- U3581-1 – Factory Demo Maverick 325X Engine-Driven Welder Kubota (Factory Demo Unit)
- K3581-1-RP1 – K3581-1-RP1 Maverick 325X Ready Pak 1
- K3581-1-RP2 – K3581-1-RP2 Maverick 325X Ready Pak 2
- K3581-1-RP3 – K3581-1-RP3 MAVERICK 325X READY PAK 3
- Kubota diesel engine — proven fuel efficiency and service reliability for sustained remote operation
- Integrated AC generator output for tools, lighting, and auxiliary equipment on-site
- Truck-transportable compact footprint for flatbed, service truck, and trailer mounting
- 325A DC welding output — MIG/GMAW, Stick/SMAW, TIG/GTAW, and FCAW capable
- Smooth, stable DC arc for pipe welding, structural steel, and maintenance repair
- Suitable for carbon steel, stainless steel, and a broad range of structural alloys
- K3581-1-RP1 Ready-Pak 1 — pre-selected accessories for common field welding setups
- K3581-1-RP2 Ready-Pak 2 — alternate accessory bundle for varied field requirements
- K3581-1-RP3 Ready-Pak 3 — third configuration for specialized field deployment
- U3581-1 Factory Demo — certified refurbished unit at reduced cost
- Pipeline construction and field girth weld operations
- Structural steel erection and ironwork on commercial and industrial projects
- Oil and gas facility maintenance and turnaround welding
- Bridge and infrastructure repair in remote locations
- Heavy equipment and off-highway vehicle field repair
The Lincoln Electric Maverick 325X delivers 325-amp multi-process welding capability, Kubota diesel reliability, and field-deployment flexibility in a single engine-driven package. Base, demo, and three Ready-Pak configurations give contractors the right acquisition and bundling option for every field project — backed by Lincoln Electric engineering and Kubota's proven diesel engine performance.
Our certified reconditioned engine-driven welders include the same Lincoln reliability with significant savings. Recon inventory fluctuates — check current availability.
Shop Reconditioned Engine-Driven Welders →Lincoln lists the welding processes for the Maverick 325X as: SMAW, FCAW, GMAW, GTAW, CAC-A. Lincoln also lists a direct-connect spool gun for pulsed aluminium. Source: Lincoln spec sheet E6.211.2.
Yes. Lincoln publishes the auxiliary AC generator output for the Maverick 325X as: Single Phase: 10 kW Continuous, 11.5 kW Peak, 120V/240V @ 60 Hz. Lincoln publishes these receptacles for this machine:
- NEMA 5-20R — 120V, 20A, NEMA 5-20R (120V / 20A / 1~)
- NEMA 14-50R — 120/240V, 50A, NEMA 14-50R (120/240V / 50A / 1~)
Source: Lincoln spec sheet E6.211.2.
The Maverick 325X on this listing is powered by a Kubota D902 diesel engine, 24.8 hp. Kubota engines in this line are diesel only. Source: Lincoln spec sheet E6.211.2.
Duty cycle varies by output setting. The Maverick 325X is 100% duty cycle at its 325 A / 33 V IEC rating, and 60% duty cycle at both 350 A / 34 V and its 400 A / 29 V maximum rating — so its top output is not continuous duty. All ratings are at 104°F (40°C).
| Welding process / output mode | Rating basis | Amperes | Volts | Duty cycle | As printed by Lincoln |
|---|---|---|---|---|---|
| Rated output (mode not broken out) | IEC Rating | 325A | 33V | 100% | IEC Rating - 325A / 33V / 100%, |
| Rated output (mode not broken out) | IEC Rating | 350A | 34V | 60% | 350A / 34V / 60%, |
| Rated output (mode not broken out) | Max Rating | 400A | 29V | 60% | Max Rating - 400A / 29V / 60% |
| Mode / parameter | Range |
|---|---|
| Stick / Pipe | 35 - 400 Amps |
| DC TIG | 25 - 250 Amps |
| MIG / FCAW | 13 - 40 Volts |
| Arc Gouging | 60 - 400 Amps |
| Open circuit voltage | Peak 80 OCV @ 3600 RPM |
| Rated ambient temperature | Column header: "Rated Output @104°F (40°C)" |
| Specification | As printed by Lincoln |
|---|---|
| Peak / surge output | 11.5 kW Peak |
| Continuous output | 10 kW Continuous |
| Single-phase | Single Phase: 10 kW Continuous, 11.5 kW Peak, 120V/240V @ 60 Hz |
| Three-phase | NONE PRESENT (single-phase machine) |
| Frequency / phase | 120V/240V @ 60 Hz |
| Receptacle | Voltage | Amperage | NEMA type |
|---|---|---|---|
| NEMA 5-20R | 120V | 20A | NEMA 5-20R (120V / 20A / 1~) |
| NEMA 14-50R | 120/240V | 50A | NEMA 14-50R (120/240V / 50A / 1~) |
Source: Lincoln Electric publication E6.211.2 (Issue Date 10/24) — view the Lincoln spec sheet PDF. Figures are Lincoln's own; “NOT STATED” means Lincoln does not publish that value for this machine.

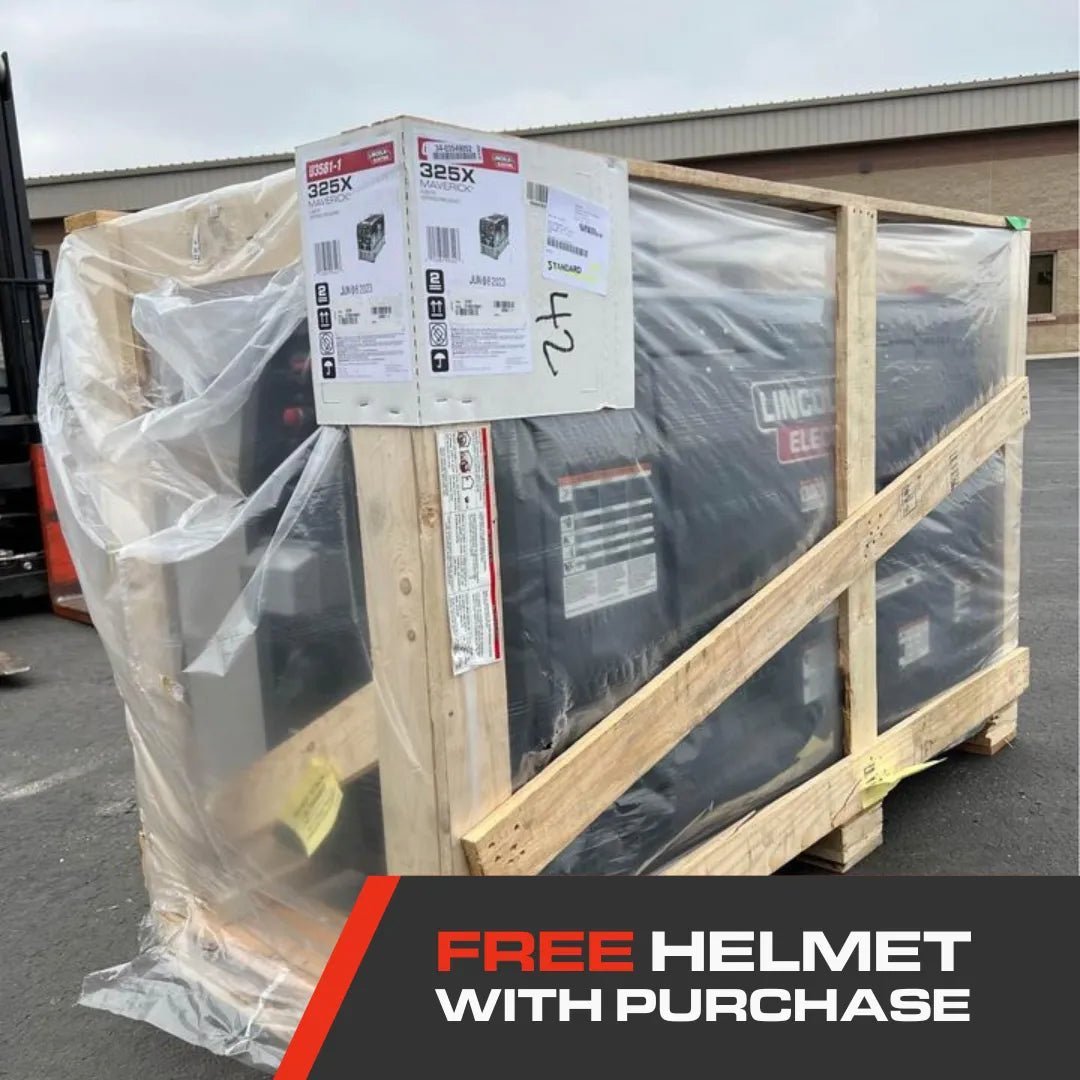

Yes — this is a factory demo or low-hour unit directly from Lincoln Electric. Units may show light cosmetic marks from display use but are mechanically sound. The warranty on this unit is the same as on a new machine. Lincoln’s Industrial Limited Warranty (form IMWS1, Apr-2026) lists a 3-year warranty period for “All Lincoln welding machines, wirefeeders & plasma cutting machines”, and Lincoln states: “Lincoln will assume both the parts and labor expense of correcting defects during the warranty period.” As on a new machine, the engine is not covered by Lincoln’s warranty — Lincoln states: “All engines and engine accessories are warranted by the engine or engine accessory manufacturer and are not covered by this warranty.” This machine’s Kubota D902 engine is warranted by Kubota: “USA - 2 Year/2000 Hours and 3rd Year Major Components.”, and that term “BEGINS ON DATE OF PURCHASE BY END USER.” Lincoln directs buyers to the engine maker — WWW.KUBOTAENGINE.COM. See Lincoln Engine Drive Motors Warranty Contacts. Source: Lincoln Electric Industrial Limited Warranty (form IMWS1, Apr-2026).
Lincoln’s own included-items list for K3581-1 is: Machine Only (Lincoln K3581-1). This factory demo unit is supplied the same way. Not included: welding leads (electrode and work cable), electrode holder, work clamp, and accessory kits. No printed operator’s manual, WeldingMart demo-prep certification document or Lincoln warranty registration paperwork ships with the machine. Consumables (electrodes, gas cylinders) are not included. Leads, holders, clamps, cable connectors, undercarriages, spark arrestors, remote controls and wire feeders are sold separately — contact WeldingMart and we will quote the exact set you need.
