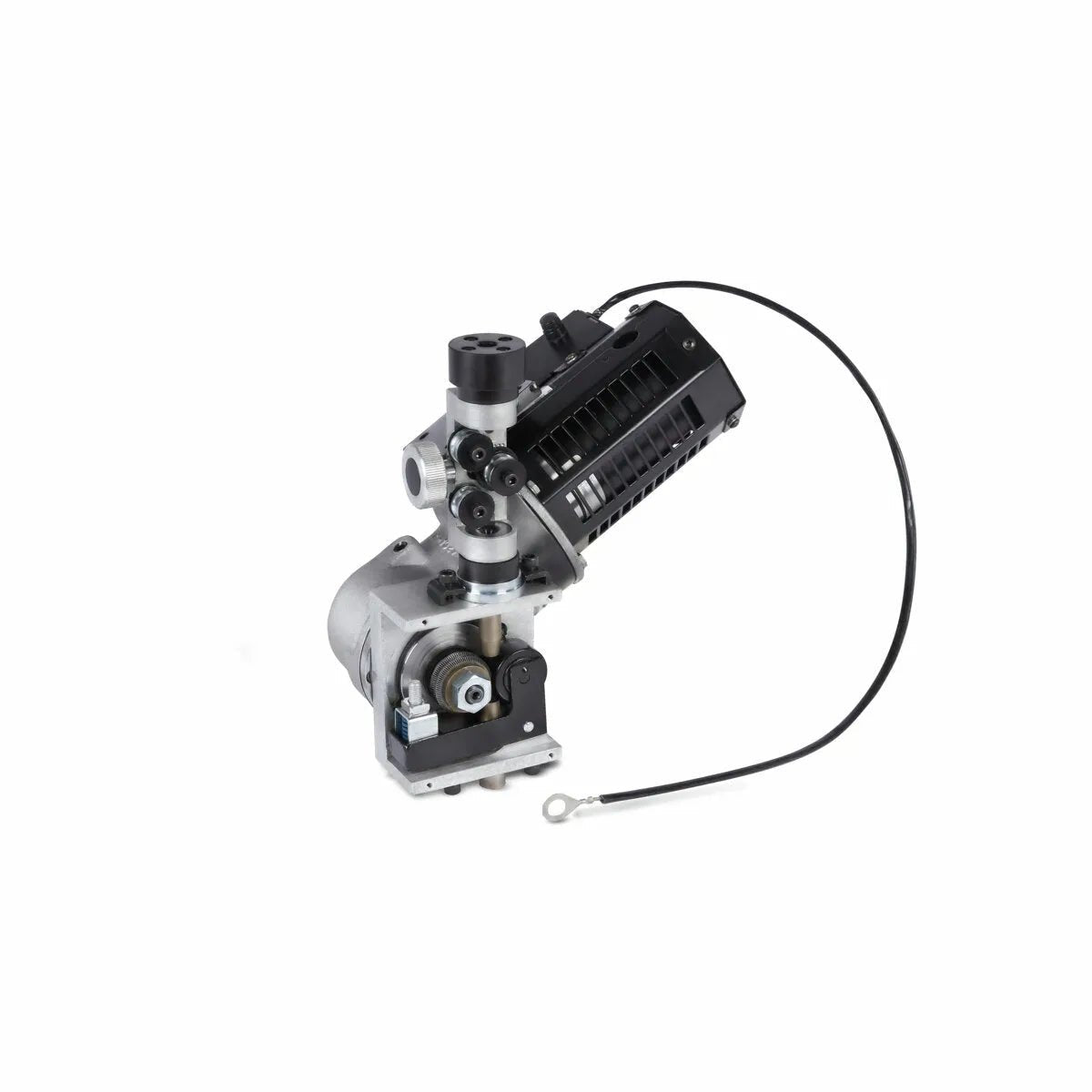

Lincoln Electric — Lincoln MAXsa 29 Feed Head K2312-2
Submerged Arc Full Automation and Hard Automation Feed Head.
Specifications
- Typical Applications: Heavy Fabrication
- Processes: Submerged Arc (SAW), Robotic Welding, Automated Welding
- Equipment Classification: Advanced
- Welding Technology: Inverter/Chopper
- Product Height (in): 13
- Product Height (mm): 330
- Product Width (in): 16
- Product Width (mm): 406.4
- Product Length (in): 10
- Product Length (mm): 254
- Product Weight (lb): 35
- Product Weight (kg): 15.87
- Max Rating: 1000
- Part number: K2312-2
- UPC/EAN: 015082891248

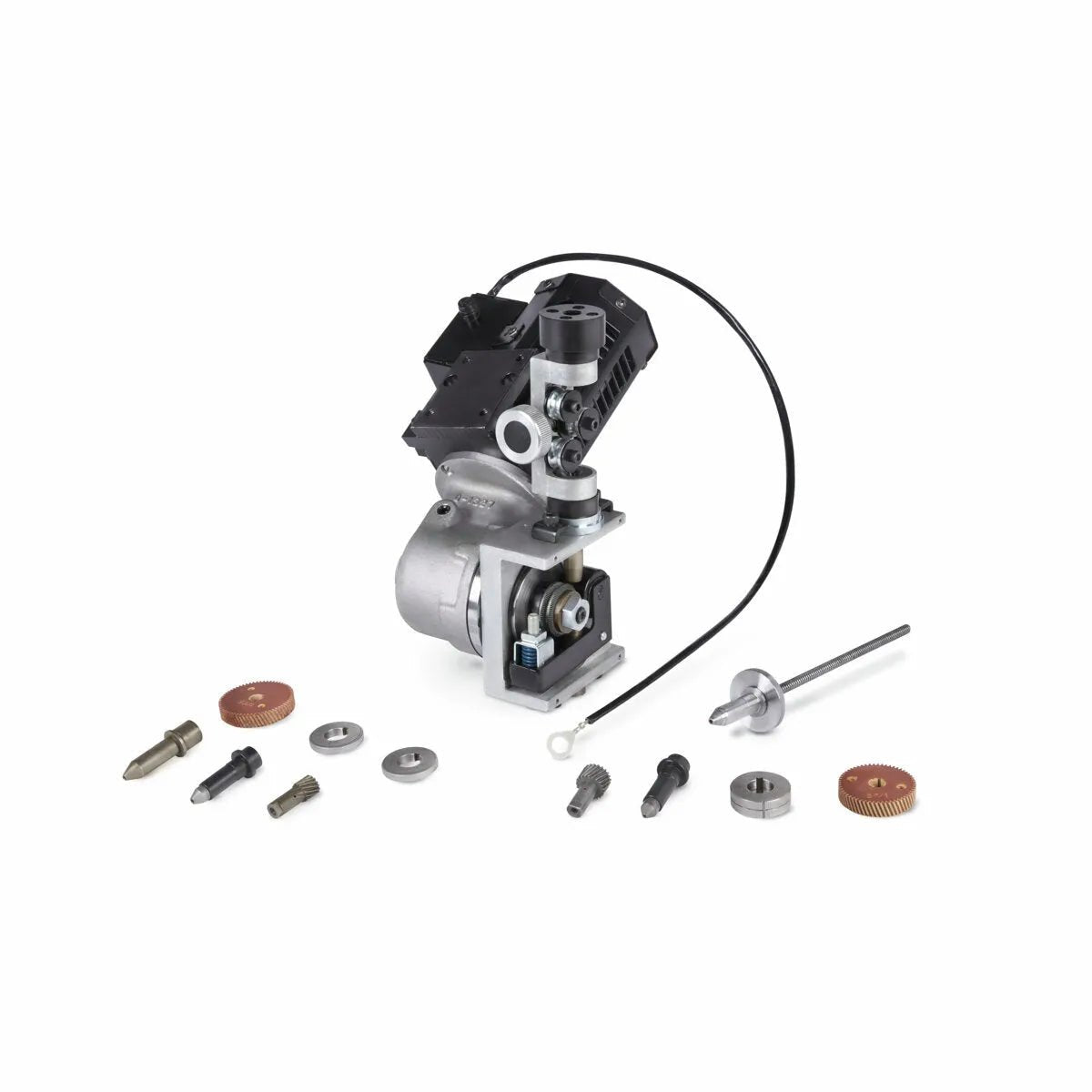

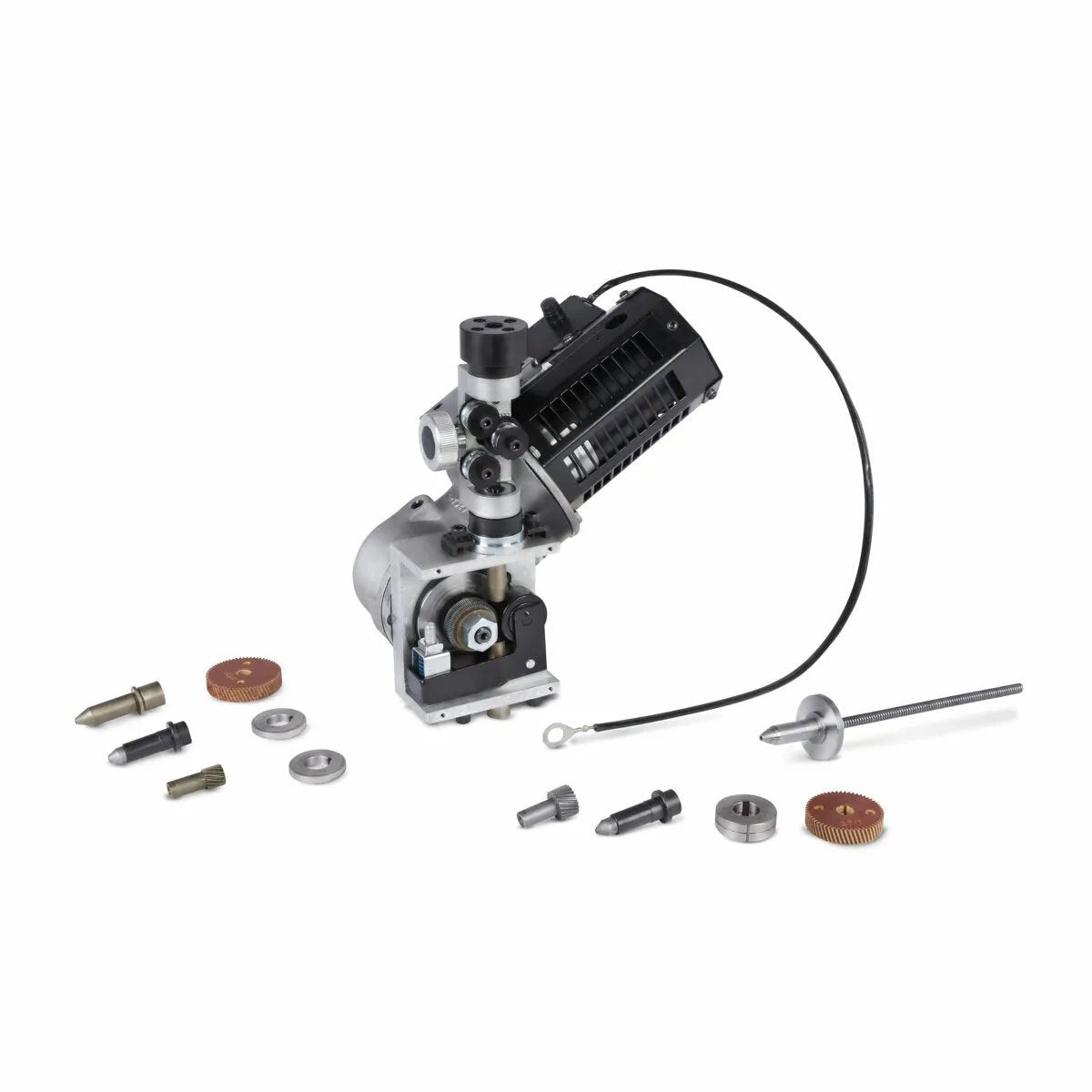

What's in the box
- MAXsa® 29 Feed Head
- Adjustable wire straightener
- 1/16" (1.6 mm) Drive Rolls
- 5/64" (2.0 mm) Drive Rolls
- 3/32" (2.4 mm) Drive Rolls
Compatibility & sizing
- Lincoln category: Welding Equipment - Advanced Process Wire Feeders
- Compatible families: MAXsa
Why pros choose this
A wire feeder must match the wire-size range, drive-roll configuration, and voltage class of the power source. Boom and bench feeders trade off portability against duty cycle.
Warranty
5 Years
From the manufacturer
The compact MAXsa 29 Feed Head is intended for integrator solutions as well as the latest submerged arc full automation and hard automation applications.Features
- Closed Loop Speed Control – Facilitates full control over starting, running and stopping wire feed speed.
- Wide Range of Wire Feed Speed – Gear ratio conversion kits allow for a wide range of WFS capabilities to match the requirements of your application.
- Rotatable feed head allows flexible, accurate setup for fixturing.

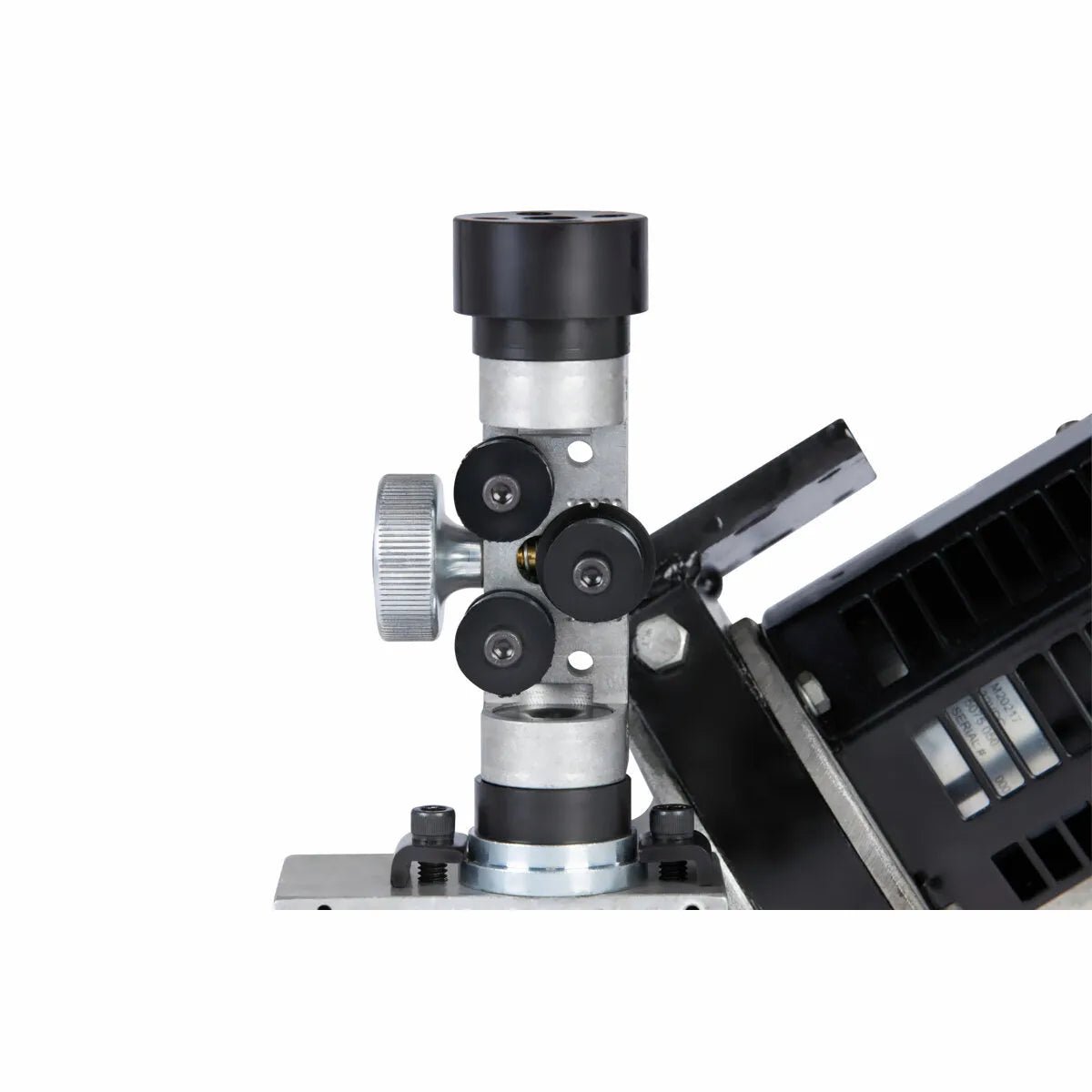

- Features adjustable wire straightener.
- Includes drive rolls for 1/16, 5/64 and 3/32 (1.6, 2.0 and 2.4 mm)
