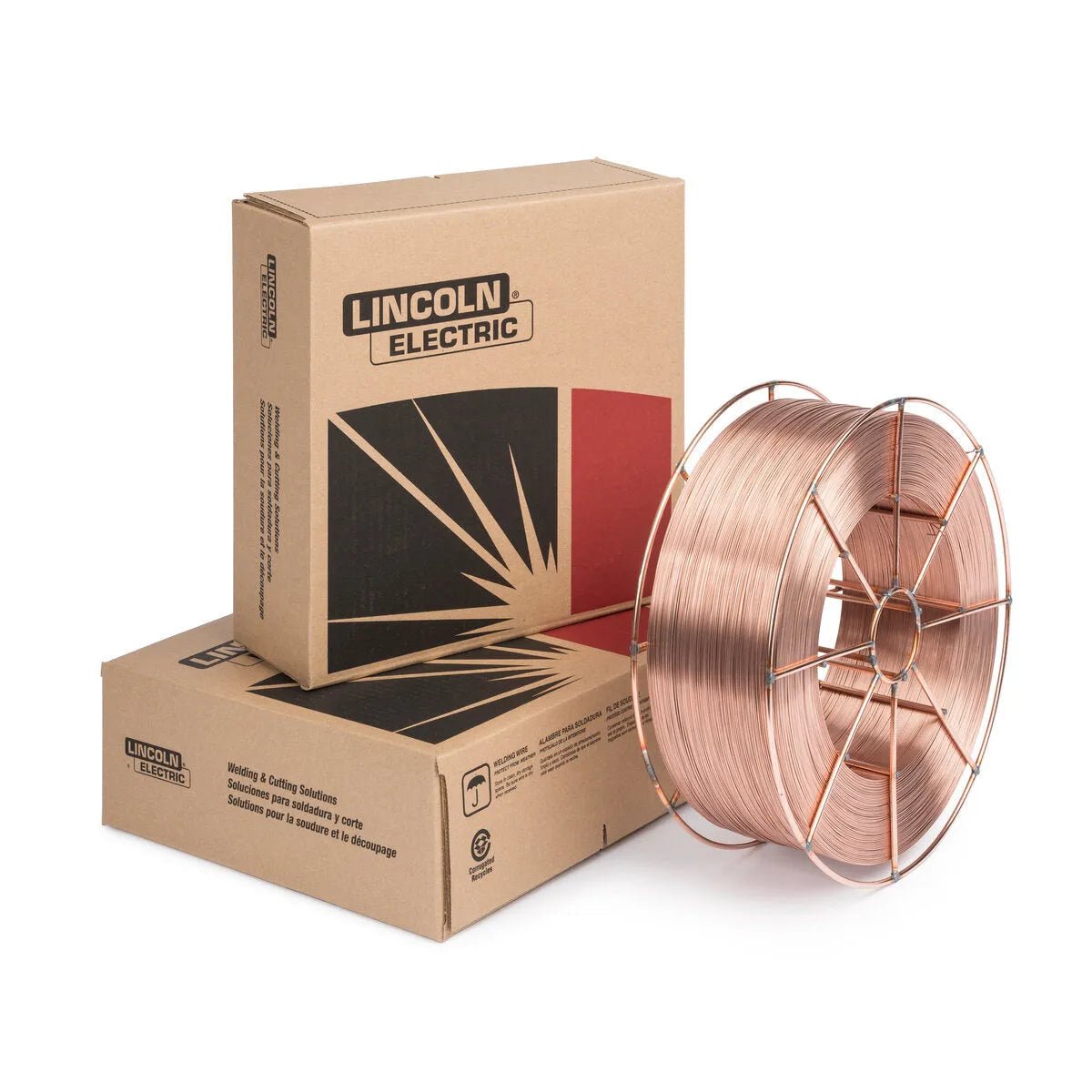

Lincoln MG4130045659 Techalloy 4130 MIG GMAW Welding Wire, 0.045 in, 33 lb Spool

SKU: MG4130045659
$810.48

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
Techalloy® 4130 is a high strength, low alloy welding wire for joining steels of similar chemical composition, as well as for overlays where moderate hardness is required
Overview
Lincoln MG4130045659 Techalloy 4130 MIG GMAW Welding Wire, 0.045 in, 33 lb Spool

Techalloy® 4130 is a high strength, low alloy welding wire for joining steels of similar chemical composition, as well as for overlays where moderate hardness is required - Offered in TIG, MIG, and SAW welding products

Features
  • High strength, low alloy
  • Preheat and inter-pass temperature of 400°F (204.4°C) is required
  • Overlays where moderate hardness is required

Specifications
FeatureValue
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %
Typical Result 900 (130)1000 (145)11
Classification %C%Cr%Mn%Mo%Si%Fe
Typical Result 0.310.930.520.200.28Balance
Diameter Transfer ModeShielding GasVoltage, voltsApprox. Current, amps
.035" (0.9 mm) Spray Transfer98% Ar, 2% O228-32165-200
.045" (1.1 mm) Spray Transfer98% Ar, 2% O230-34180-220
1/16" (1.6 mm) Spray Transfer98% Ar, 2% O230-34350-400
.035" (0.9 mm) Short Circuit Transfer75% Ar, 25% CO222-25100-140
.045" (1.1 mm) Short Circuit Transfer75% Ar, 25% CO223-26120-150
LECO Diameter 0.045 in (1.1 mm)
LECO Package 33 lb Spool
Diameter (in) 0.045
Includes
  • (1) 33 lb Spool
