How does the Lincoln MS450 5 x 5 Motorized Slide System One-Pak K52012-0505 integrate with existing welding equipment?

Robotic welding systems from Lincoln Electric are engineered to integrate with Lincoln welding power sources and wire feeders via standard communication protocols (including DeviceNet, EtherNet/IP, and analog interfaces). Third-party robot arms and controllers may be integrated using the Lincoln Electric Power Wave interface standard. Consult Lincoln Electric's automation division or WeldingMart.com for system integration guidance specific to your application.

What consumable maintenance does the Lincoln MS450 5 x 5 Motorized Slide System One-Pak K52012-0505 require?

Key consumable items in robotic MIG welding systems require more frequent maintenance than manual setups due to higher arc-on time: contact tips (check every 4–8 hours of arc time in high-cycle applications), nozzles (clean or replace when spatter restricts gas flow), liners (replace every 3 months or when feeding becomes erratic), and anti-spatter compound (reapply to nozzle/diffuser regularly to minimize spatter buildup).

What consumables and torch packages are compatible with the Lincoln MS450 5 x 5 Motorized Slide System One-Pak K52012-0505?

Robotic welding consumables and torch packages have specific dimensional requirements for reach, clearance, and process performance within the robot's work envelope. Using consumables that are not rated for the system's amperage or that don't match the torch's throat geometry can cause arc instability, contact tip failures, and robot programming errors from unexpected wire position deviations.

What warranty and service support does the Lincoln MS450 5 x 5 Motorized Slide System One-Pak K52012-0505 carry?

The Lincoln MS450 5 x 5 Motorized Slide System One-Pak K52012-0505 carries a Cross Slide, Controller - 3 Years; Pendant, Cables, Accessories - 90 Days warranty from Lincoln Electric. Warranty coverage, service, and installation support for robotic welding systems requires coordination with a Lincoln Electric automation distributor. Contact WeldingMart.com or your regional Lincoln Electric distributor for system warranty registration and service procedures.

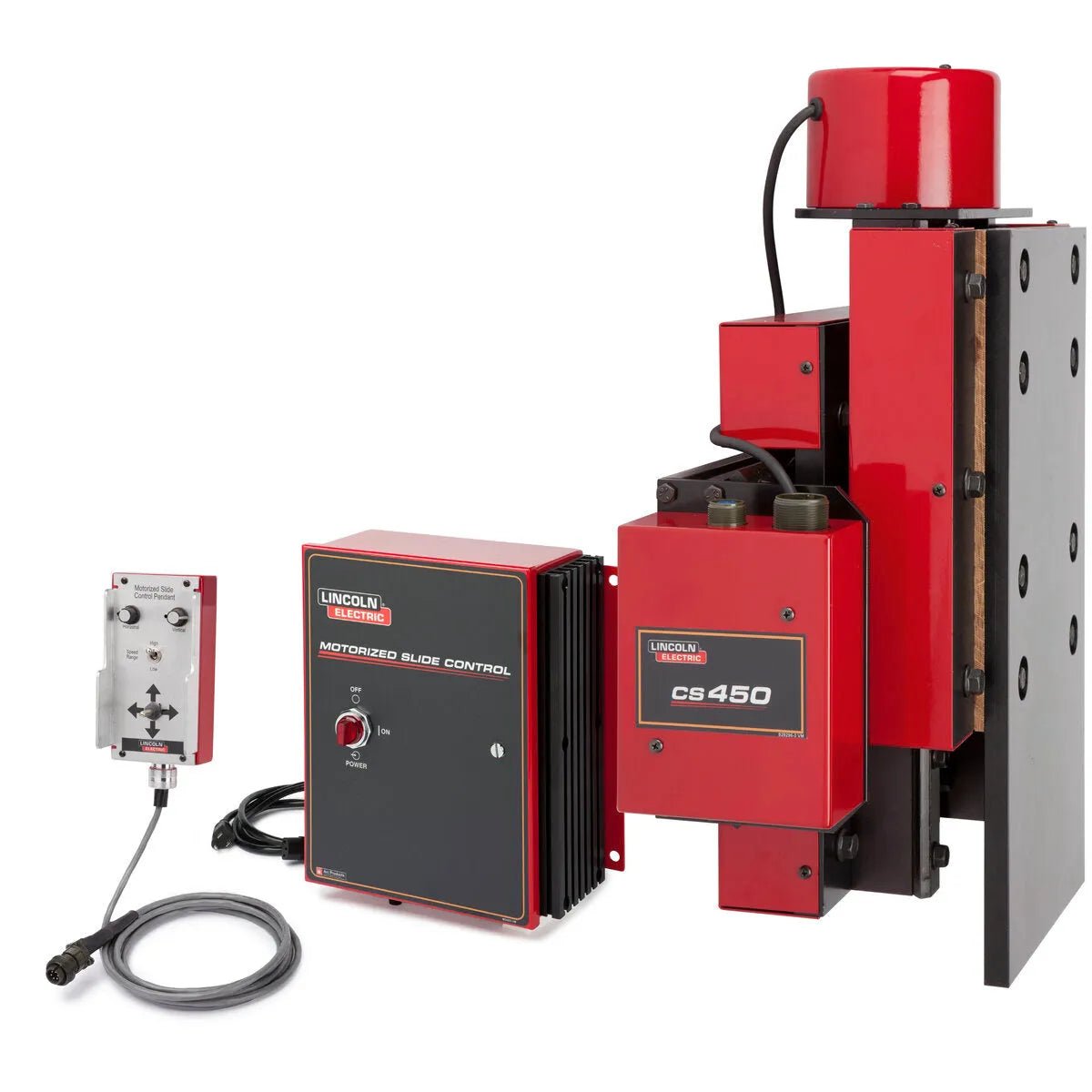

Lincoln MS450 5 x 5 Motorized Slide System One-Pak K52012-0505

SKU: K52012-0505

$27,849.21 ~~$29,314.95~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

Motorized two axis slide systems with simple joystick control for SAW, GMAW, FCAW and GTAW welding processes

Overview

Lincoln MS450 5 x 5 Motorized Slide System One-Pak K52012-0505

MANUAL JOINT POSITIONINGMotorized Slide Control Systems allow for horizontal and vertical axis torch positioning for GMAW, FCAW and submerged arc applications. Recommended for simple, repetitive welding applications, the motorized slide systems provide flexible integration with any welding power source, feeder and controller. Simple system configurations available by selecting a cross slide based on weight and travel stroke length of each axis.

Features

Allows for horizontal and vertical axis positioning
Complete package for simplified ordering and installation
Flexible integration with any welding power source, feeder and controller
Joystick control with adjustable/rapid speed control
Standalone Operation

Specifications

Feature	Value
Typical Applications	Heat Exchangers Heavy Equipment Heavy Fabrication High Pressure Piping Marine Fabrication & Repair Offshore Oil & Gas Petrochemical Petrochemical Industry Pressure Vessels Process Piping Railcar Fabrication Robotics/ Hard Automation Shipbuilding Structural Fabrication
Processes	Flux-Cored (FCAW) MIG (GMAW) Submerged Arc (SAW)
Equipment Classification	Heavy Industrial

Includes

Order a Lincoln Electric One-Pak and get everything you need to complete a welding package - all with one order number.(Packages are shipped unassembled.) K52015-0505 CS450 Cross Slide 5 x 5 in (127 x 127 mm) K52025-1 MS Control Unit K52024-1 MS Control Pendant - 10 ft (3 m) Cable K52030-1 Cross Slide Drive Cable Assembly for CS250 & CS450 - 10 ft (3 m) "
