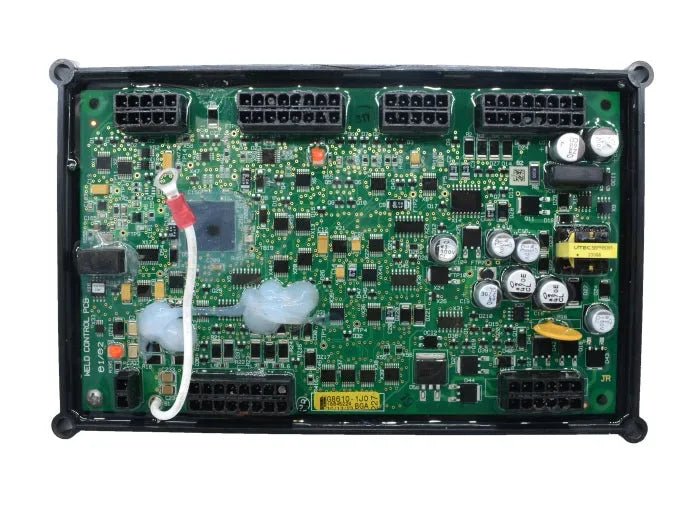

The Lincoln Electric G8610-1 is a genuine OEM weld control printed circuit board for selected Ranger, Vantage, Air Vantage, and Red-D-Arc engine-driven welders. Orderable Lincoln SKU: 9SG8610-1.
- Manufacturer: Lincoln Electric
- OEM assembly number: G8610-1
- Orderable SKU: 9SG8610-1
- Component type: Weld control PC board
- Availability: In stock
Match both the machine model and the code number on the rating plate to the table below. Lincoln model names can span multiple production configurations.
| Equipment | Code numbers |
|---|---|
| Air Vantage 500 (Kubota) | 11470, 11850, 11924 |
| Ranger 305 LPG (Sunbelt) | 13173 |
| Ranger 305 LPG (Kohler) | 13171 |
| Ranger 305D (AU) | 13167 |
| Ranger 305D (Sunbelt) | 13169 |
| Ranger 305D (Kubota D722) Tier 4F | 13168 |
| Ranger 305G (Sunbelt) | 13170 |
| Ranger 305G (Kohler) | 13163 |
| Ranger 305G EFI (Kohler) | 13172 |
| Red-D-Arc GX300 (CSA) | 13174 |
| Red-D-Arc DX350 with GPS | 13151 |
| Vantage 322 (Sunbelt) | 13166 |
| Vantage 322 (Kubota) | 13164, 13201 |
| Vantage 400-I | 13199 |
| Vantage 500-I (RCD) | 13184 |
| Vantage 500-I (Export) | 13180 |
| Vantage 500-I with Polarity Switch (Export) | 13183 |
| Vantage 500-50Hz | 13185 |
This electronic assembly should be diagnosed and installed by a qualified service technician. Use proper grounding and ESD handling procedures. This PCB is non-returnable after the anti-static bag has been opened.
Is 9SG8610-1 the same part as G8610-1?
Yes. G8610-1 identifies the assembly, while 9SG8610-1 is the orderable Lincoln SKU.
Will this fit every Ranger 305 or Vantage 500?
No. Fitment is code-number specific. Confirm the rating-plate code against the table above.
Can this PCB be returned after opening?
No. It is non-returnable after the anti-static package is opened.
Need help checking a code number? Call 877-532-9353 or use the Lincoln Electric service-parts finder.
