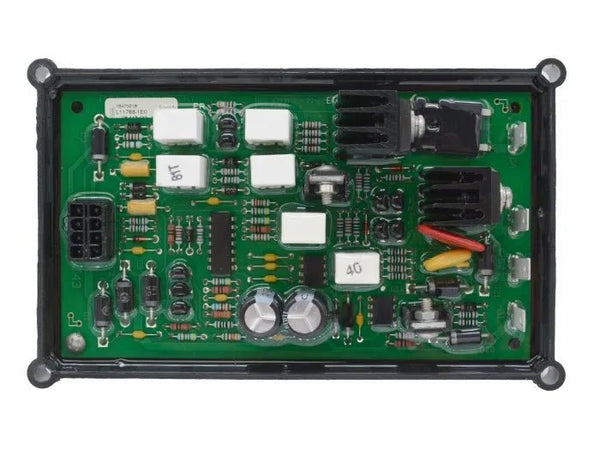

The Lincoln Electric L11768-1 is a genuine OEM pull coil and battery pc board assembly for applicable Lincoln equipment. Orderable Lincoln SKU: 9SL11768-1.
- Manufacturer: Lincoln Electric
- OEM assembly number: L11768-1
- Orderable SKU: 9SL11768-1
- Component type: Pull coil and battery PC board assembly
- Availability: In stock
Use the machine model and code number from the rating plate. This part is listed for the following combinations:
| Lincoln model | Code number(s) |
|---|---|
| Air Vantage 500 | 11069, 11417 |
| Air Vantage 500 (AU) | 11656, 11661 |
| Air Vantage 500 (Cummins) | 11651, 11679 |
| Ranger 305D | 11458, 11459, 11692, 11909, 12193 |
| Ranger 305D (AU) | 12682 |
| Ranger 305D (Sunbelt) | 12666 |
| Ranger 305D (Kubota) | 10926, 11121, 11188, 11275, 11457, 12680 |
| Ranger 305D (CE) | 11587, 12486, 12681 |
| Ranger 305D (CE) (Kubota) | 11122, 11123, 11314, 11315, 11189, 11190 |
| Ranger 305D (CE) (50 HZ) | 11027, 11039 |
| Red-D-Arc DX300E | 12484 |
| Red-D-Arc DX300E (CE) | 11527 |
| Vantage 500 (Deutz) | 10995, 11180, 11415, 11468, 11931, 11932, 11960 |
| Vantage 500 (Cummins) | 10996, 11181, 11416 |
| Vantage 575 | 11686 |
This electronic assembly should be diagnosed and installed by a qualified service technician. Follow proper lockout, grounding, and ESD procedures. This PCB is non-returnable after the anti-static package has been opened.
Is 9SL11768-1 the same part as L11768-1?
Yes. L11768-1 identifies the OEM assembly, while 9SL11768-1 is the orderable Lincoln SKU.
Can a different L11768 revision be substituted?
Do not assume revisions are interchangeable. Confirm the complete part number and machine code in Lincoln parts documentation.
Can this PCB be returned after opening?
No. It is non-returnable after the anti-static package is opened.
Need help confirming this part? Call 877-532-9353 with the machine model and code number, or use the Lincoln Electric service-parts finder.
