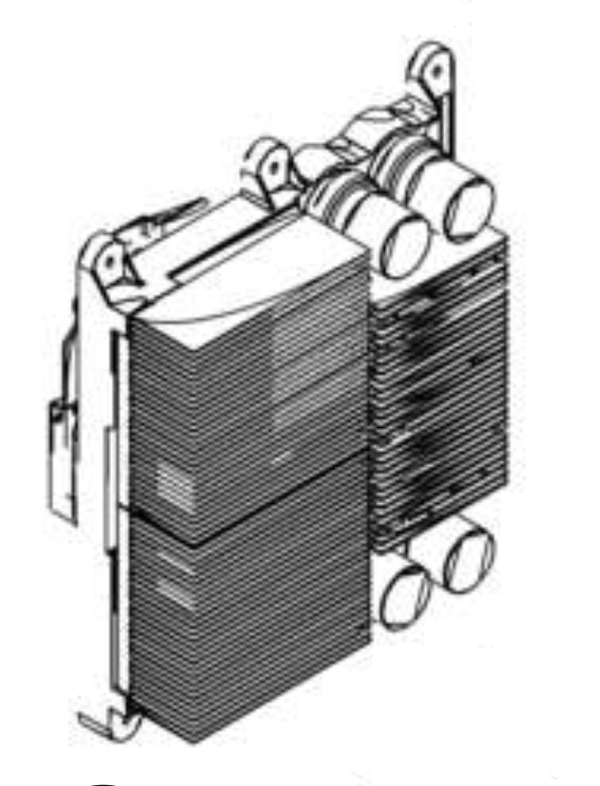

The Lincoln Electric G10012-1 is a genuine OEM power conversion assembly for selected Air Vantage, Ranger, and Red-D-Arc engine-driven welders. Orderable Lincoln SKU: 9SG10012-1.
- Manufacturer: Lincoln Electric
- OEM assembly number: G10012-1
- Orderable SKU: 9SG10012-1
- Component type: Power conversion assembly
- Availability: In stock
Match both the machine model and the code number on the rating plate to the table below. Model name alone is not sufficient because production configurations can change within a machine family.
| Equipment | Code numbers |
|---|---|
| Air Vantage 500 | 11069, 11417 |
| Air Vantage 500 (Kubota) | 11470, 11850, 11924 |
| Air Vantage 500 (AU) | 11656, 11661 |
| Air Vantage 500 (Cummins) | 11651, 11679 |
| Air Vantage 650 | 11654, 12378 |
| Air Vantage 700 (AU) | 11655, 12379 |
| Air Vantage 800 | 12582 |
| Air Vantage 800 (AU) Cummins | 12557, 12762 |
| Ranger 250 (Kohler) | 11270, 11401 |
| Ranger 250 (Kohler, electric fuel pump) | 11168 |
| Ranger 250 (Robin/Subaru) | 11167 |
| Ranger 250 22HP (Robin) | 11422 |
| Ranger 250 23HP (Kohler) | 11421 |
| Ranger 250G (Kohler) | 10954, 11118 |
| Ranger 250G (Onan) | 10953, 11117 |
| Ranger 250 LPG (Kohler) | 11078, 11272 |
| Ranger 250 LPG 25HP (Kohler) | 11424 |
| Ranger 250 LPG (Robin/Subaru) | 11271 |
| Ranger 305 (Kohler) | 11273 |
| Ranger 305D | 11458, 11459, 11692, 11909, 12193 |
| Ranger 305D (Kubota) | 10926, 11121, 11188, 11275, 11457, 12680 |
| Ranger 305D (CE) | 11587, 12486, 12681 |
| Ranger 305D (CE, Kubota) | 11122, 11123, 11189, 11190, 11314, 11315 |
| Ranger 305D (CE, 50 Hz) | 11027, 11039 |
| Ranger 305D (AU) | 12682 |
| Ranger 305D (Sunbelt) | 12666 |
| Ranger 305G | 11676, 11738, 11794, 11801, 12097, 12203 |
| Ranger 305G (Kohler) | 10955, 11119, 11402 |
| Ranger 305G (Kohler, electric fuel pump) | 11169 |
| Ranger 305G 23HP (Kohler) | 11423 |
| Ranger 305G (Sunbelt) | 12667 |
| Ranger 305 EFI | 12157, 12206 |
| Ranger 305 EFI Fall Camo | 12653 |
| Ranger 305 LPG | 11677, 11739 |
| Ranger 305 LPG (Sunbelt) | 12669 |
| Red-D-Arc GX300 | 11678, 11740, 11795, 11802, 12098, 12204 |
| Red-D-Arc GX-300 (Kohler) | 11037, 11120, 11425 |
| Red-D-Arc GX 300 Chopper | 11274 |
This power-electronics assembly should be diagnosed and installed by a qualified service technician. Follow proper lockout, grounding, and ESD procedures. Confirm the machine code number before installation.
Is 9SG10012-1 the same part as G10012-1?
Yes. G10012-1 identifies the assembly, while 9SG10012-1 is the orderable Lincoln SKU.
Will this fit every Ranger 305 or Air Vantage 500?
No. Fitment is code-number specific. Confirm the rating-plate code against the table above.
Can fitment be confirmed by appearance?
No. Use the machine code number and Lincoln parts documentation rather than visual similarity.
Need help checking a code number? Call 877-532-9353 or use the Lincoln Electric service-parts finder.
