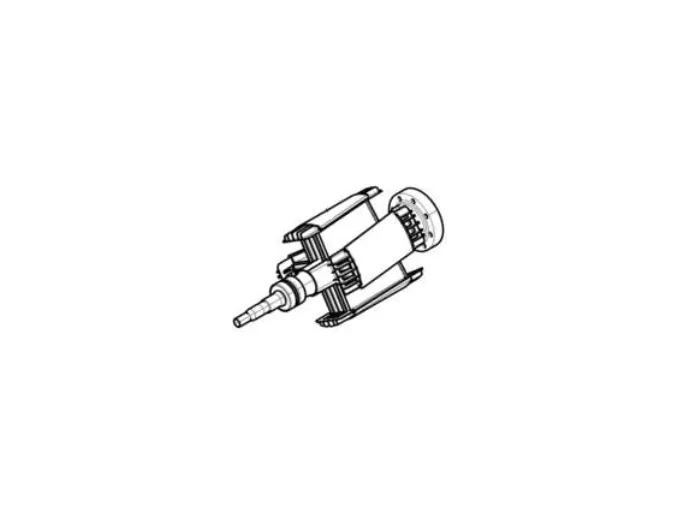

The Lincoln Electric L10501-33 is a genuine OEM rotor and shaft assembly for selected Power Wave, Vantage, and related engine-driven welding systems. Orderable Lincoln SKU: 9SL10501-33.
- Manufacturer: Lincoln Electric
- OEM assembly number: L10501-33
- Orderable SKU: 9SL10501-33
- Component type: Rotor and shaft assembly
- Availability: In stock
Match both the equipment model and the code number on the rating plate to the table below. Other L10501 rotor revisions are separate assemblies and should not be assumed interchangeable.
| Equipment | Code numbers |
|---|---|
| Power Wave AC/DC 1000 SD | 11592, 11918, 12385, 12489, 12502 |
| Power Wave AC/DC 1000 | 11881 |
| Power Wave S700 | 11957, 12503 |
| Vantage 400 (Kubota) | 11787, 11921, 12671 |
| Vantage 500 | 12656 |
| Vantage 500 (Cummins) | 10996, 11181, 11416 |
| Vantage 500 (Deutz) | 10995, 11180, 11415, 11468, 11931, 11932, 11960 |
| Vantage 500 (Perkins) | 11467, 11786, 11922, 11923, 11962, 12359, 12360, 12361, 12373, 12672 |
| Vantage 500 (Perkins, Export) | 12694 |
| Vantage 500 (CE) | 11524, 11525, 11574, 11575, 11963, 12333, 12364, 12657 |
| Vantage 500 (Perkins, CE) | 11298, 11299, 12196 |
| Vantage 500 (50 Hz) | 13002 |
| Vantage 500-I | 11576, 11954, 11961, 12304, 12559 |
| Vantage 500-I (MENA) | 12597 |
| Vantage 575 | 11686 |
| Vantage 580 (AU) | 11657, 11965, 12693, 12761 |
Rotor and shaft replacement requires qualified mechanical and electrical service. Follow the applicable Lincoln service procedure, isolate all power, support rotating components correctly, and verify bearings, alignment, clearances, and fastener torque before operation.
Is 9SL10501-33 the same assembly as L10501-33?
Yes. L10501-33 identifies the assembly, while 9SL10501-33 is the orderable Lincoln SKU.
Will this fit every Vantage 500?
No. Fitment is engine- and code-number specific. Confirm the rating-plate code against the table above.
Can another L10501 revision be substituted?
Do not assume revisions are interchangeable. Verify the complete assembly number in Lincoln parts documentation.
Need help checking a code number? Call 877-532-9353 or use the Lincoln Electric service-parts finder.
