Great for anyone who needs portable DC stick welding and AC generator power! The Low-Lift grab bars on both ends make lifting the Outback 185 on and off truck beds easy. The compact Outback 185 is easy to start with all engine controls on the front of the machine, and it's easy to use for welding. Use the AC generator power for a variety of applications described below with the large 6.8 gallon (25.7 liter) fuel tank! Plug in a Lincoln Electric POWER MIG 140C or POWER MIG 180C for wire welding too.

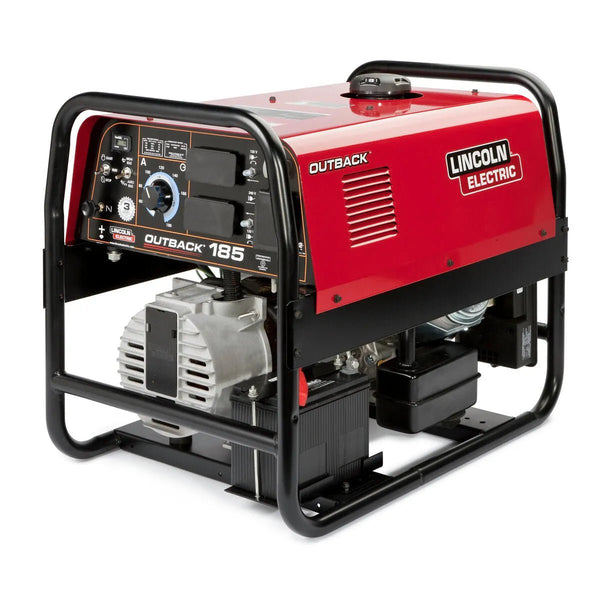

The Lincoln Outback 185 engine Driven Welder K2706-2 represents an exceptional value in portable welding and power generation, combining reliable DC stick welding capabilities with substantial AC generator functionality in a compact, user-friendly package. This versatile machine delivers up to 185 amps of DC welding output, providing ample power to handle electrodes up to 5/32 inch (4 mm) in diameter for a wide range of maintenance, repair, and general fabrication applications. The robust design features a rugged 1-1/4 inch (32 mm) diameter tube frame that provides superior protection against damage in demanding field environments, while the innovative Low-Lift grab bars on both ends create additional leverage points that significantly reduce the effort required when loading and unloading the unit from truck beds or relocating it around the jobsite.
Engineered with operator convenience as a priority, the Outback 185 places all engine controls on the front panel for easy access, including the electric start switch and engine choke control – a particularly valuable feature when the unit is mounted on truck beds or positioned in confined spaces. The system's substantial 6.8 gallon (25.7 liter) fuel tank provides extended runtime between refueling stops, maximizing productivity during extended operations. Beyond its primary welding capabilities, the Outback 185 functions as a powerful portable generator, delivering 5,700 watts peak and 5,200 watts continuous AC power that can operate grinders, work lights, pumps, and other electrical equipment, or serve as an emergency power source when conventional utilities are unavailable.
The Outback 185's versatility extends beyond its standalone capabilities through compatibility with other Lincoln Electric equipment. Operators can significantly expand the system's functionality by connecting a POWER MIG 140C or POWER MIG 180C wire feeder to enable MIG and flux-cored welding processes, or a Tomahawk 375 Air plasma cutter for metal cutting operations. This adaptability makes the Outback 185 an ideal solution for contractors, maintenance personnel, farmers, ranchers, and other professionals who require a portable, reliable source of both welding capability and auxiliary power in remote locations or job sites without access to conventional power sources. With its thoughtful combination of performance, durability, and user-friendly features, the Lincoln Outback 185 delivers exceptional value for operators seeking a versatile, portable welding and power generation solution.
- Low-Lift Grab Bars - More leverage for lifting unit on and off truck beds with extra protection against product damage.
- All Engine Controls on Front Control Panel - Easy access for starting, especially when mounted on truck beds, including electric start switch and engine choke control.
- 1-1/4 in. (32 mm) Diameter Rugged Tube Frame - Great for all-around sturdy protection.
- 6.8 Gallon (25.7 Liter) Fuel Tank - Less frequent re-fueling for extended run times with large fuel fill opening for easy re-fueling.
- Weld with up to 5/32 in. (4 mm) Stick Electrode - Up to 185 amps of DC output for many applications.
- 5,700 Watts Peak AC Generator Power (5,200 Watts Continuous) - For grinders, work lights, pumps, motor starting, or emergency power.
- Compatible with Lincoln Electric POWER MIG 140C or POWER MIG 180C for wire welding and Tomahawk 375 Air for metal cutting.
| Dimensions (H x W x D) | 25.6 in x 21.8 in x 31.5 in (651 mm x 553 mm x 800 mm) |
| Net Weight | 295 lbs (134 kg) |
| Machines Processes | Stick (SMAW) |
| Output Range by Mode | CC-Stick: 50 – 185 Amps |
| Single Phase Auxiliary Output | 5,200 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 6-50R |
| Engine Brand & Model | Kohler CH440 |
| Engine Description | 1 Cylinder Air Cooled Gasoline Engine |
| Engine Horsepower | 14 HP |
| High Idle Operating Speed @ Rated Output | 3600 |
| Fuel Tank Size (US gal.) | 6.8 |
| Fuel Tank Size (L) | 25.7 |
| Oil Capacity (qts.) | 1.2 |
| Oil Capacity (L) | 1.1 |
| Typical Application | General Fabrication Maintenance & Repair Repair Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
