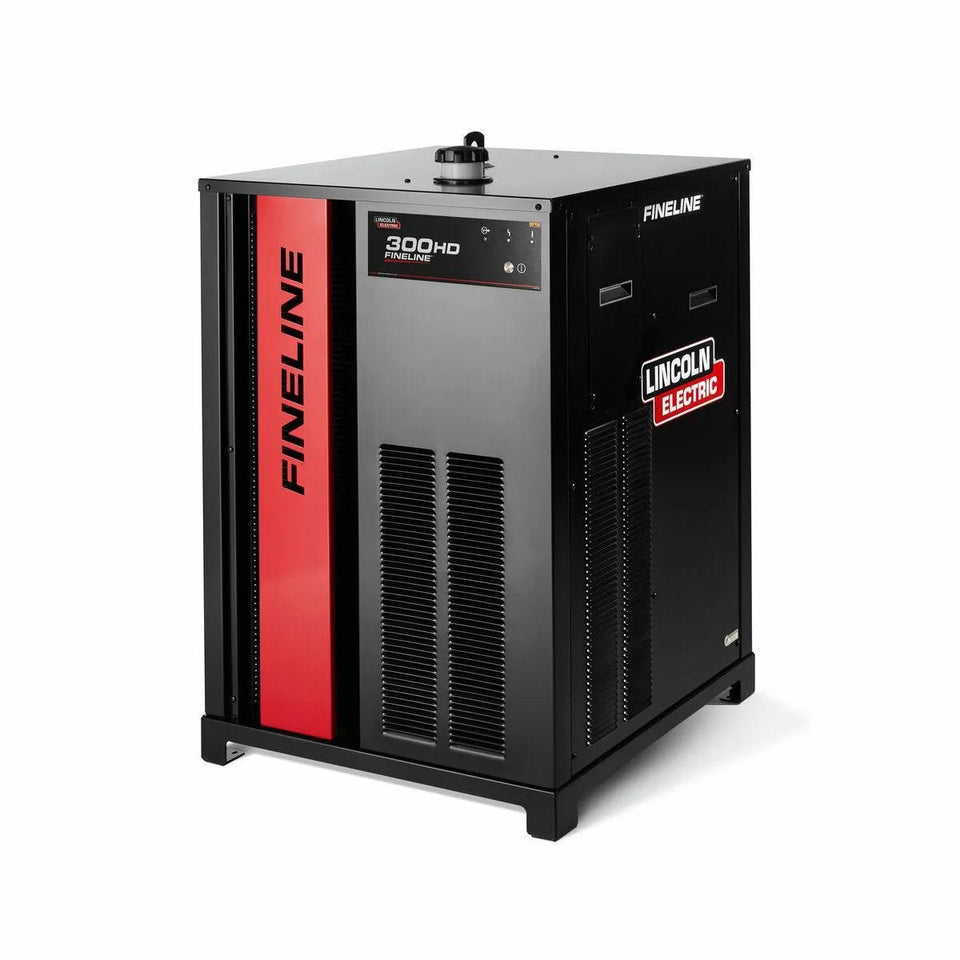

The Lincoln Electric FineLine 300HD (K4900-1) is Lincoln Electric's most powerful high-definition plasma cutting system — a 300-amp industrial plasma power source for heavy-plate structural fabrication, shipbuilding, pressure vessel manufacturing, and large-format CNC cutting operations requiring maximum throughput at the highest HD cut quality. As documented on Lincoln Electric's FineLine HD page, the FineLine 300HD pierces most metals up to 1.75 inches (45 mm) thick and achieves a maximum cutting capacity of 3 inches (75 mm), placing it at the upper limit of conventional plasma cutting capability before transitioning to laser or water jet processes.
At 300 amps, the FineLine 300HD is designed for large CNC cutting tables, pipe profiling systems, and structural beam cutting lines where maximum cut speed on thick plate is the primary production constraint. Lincoln Electric's engineering data shows the FineLine 300HD cuts up to 54% less plasma gas at 140 A compared to competing technology — a direct reduction in operating cost in high-volume production facilities where plasma gas consumption is a significant line item. The patented plasma torch and consumable design deliver consistent cuts and minimize the torch maintenance that interrupts production on high-throughput systems.
The FineLine 300HD supports the full range of plasma and shield gases — O₂, N₂, Air, H17, and Argon — for optimized cut quality across mild steel, stainless steel, aluminum, and specialty alloys. The 300 HD features Lincoln Electric's Magnum Pro LC300M torch, described as the smallest-diameter high-definition 300 A plasma torch in the industry — enabling access to tight radii and complex shapes on large-format CNC tables that larger torch bodies cannot navigate. Robotic bevel cutting capability with the LC300M expands the FineLine 300HD into advanced 3D cutting, robotic weld preparation, and multi-axis structural cutting applications.
The FineLine 300HD input voltage range (380–575V, 3-phase) accommodates most industrial power configurations globally. The system's single-interface HMI control and automatic gas pressure management minimize operator intervention — reducing setup time and the potential for operator error on complex multi-material cutting programs.
| SKU / Model | K4900-1 / FineLine 300HD |
| System Type | High-Definition (HD) Plasma Cutting System |
| Output Range | 20–300 A |
| Rated Output | 300A / 210V / 100% |
| Input Voltage | 380–415 / 460 / 575 V, 3-Phase, 50/60 Hz |
| Input Current @ Rated Output | 3-Ph/100%: 123 / 108 / 95 A |
| Cutting Method | Automated / Mechanized (CNC table, robotic, structural beam, pipe) |
| Cut Capacity — Production Pierce | 1.75 in. (45 mm) |
| Cut Capacity — Maximum | 3 in. (75 mm) |
| Mild Steel Cut Capacity — Production | 1.75 in. (45 mm) |
| Stainless Steel Cut Capacity — Production | 1.25 in. (32 mm) |
| Aluminum Cut Capacity — Production | 1 in. (25 mm) |
| Plasma Gas Options | O₂, N₂, Air, H17, Argon |
| Shield Gas Options | Air, N₂, Water (H₂O) |
| Torch | Magnum Pro LC300M — smallest-diameter 300 A HD torch available |
| Gas Consumption Advantage | Up to 54% less plasma gas vs. competing technology at 140 A |
| Gas Inlet Pressure | 105–145 PSI (7.6–10 Bar) |
| Power Supply Weight | 750 lbs (340.2 kg) |
| Power Supply Dimensions (H×W×D) | 50.4" × 33" × 36.9" (1280 × 838 × 938 mm) |
| Warranty | 3 Years — Lincoln Electric factory (all machine components) |
| Condition | New — Lincoln Electric K-prefix (factory-new) |
- FineLine 300HD Power Supply (K4900-1)
- FineLine Arc Start Console
- FineLine Gas Controller
- Magnum Pro LC300M Plasma Torch with handle and torch leads
- System cabling and gas hose assemblies
- Operator's manual and installation documentation
- Note: CNC cutting table, gas supply infrastructure, and cooling water system are not included. Contact WeldingMart for complete FineLine 300HD system integration and installation support.
Complete your FineLine 300HD installation with WeldingMart's Lincoln-compatible accessories:
- FineLine 300HD Plasma Torches — Magnum Pro LC300M straight torch assemblies for large-format CNC cutting tables; bevel torch configurations for automated weld-prep beveling and multi-axis robotic cutting; extended-lead assemblies for large-table configurations with torch lead lengths up to 75 ft.
- FineLine 300HD Consumables — Genuine Lincoln Electric HD plasma electrodes, nozzles, shields, and retaining hardware for the Magnum Pro LC300M torch; application-specific consumable sets for oxygen/mild steel, nitrogen/stainless, water-injection HD cutting, and specialty alloy configurations; production quantity kits for high-volume operations.
- Gas Supply & Regulators — Industrial oxygen, nitrogen, and specialty gas regulators rated for 105–145 PSI FineLine system inlet; high-flow gas manifolds for production multi-shift operations; gas distribution panels and piping systems for production floor integration; liquid nitrogen vaporizer and regulator systems for high-volume nitrogen plasma consumption.
The FineLine 300HD's 300 A output, 3-in. maximum capacity, and 54% gas efficiency advantage make it the production choice for the most demanding industrial plasma cutting applications:
- HVAC — industrial and large-tonnage HVAC equipment manufacturing. Large-format stainless and aluminized steel HVAC components for industrial processing, power generation, and large commercial HVAC systems. The FineLine 300HD's nitrogen plasma on stainless produces HD-quality edges on precision HVAC ductwork and component blanks that meet cleanroom and sanitary application requirements without secondary edge preparation.
- Automotive — large tooling, press die, and heavy chassis production. Stamping die blanks up to 1-3/4 in. thick, large press tooling plates, and heavy-vehicle chassis components cut to HD tolerances at plasma production rates. The FineLine 300HD's dimensional accuracy supports robotic welding fixtures and assembly jigs where tight part tolerances are required throughout the fabrication process.
- Structural steel — heavy plate processing and structural fabrication. Wide-flange heavy plate, large structural shapes, and thick bridge and building structural components cut on large-format CNC tables at HD quality. For structural steel service centers, the FineLine 300HD's production pierce capacity at 1-3/4 in. and cut speed on 1 in. mild steel supports high-volume plate processing with minimal secondary processing.
- Art, architectural, and precision fabrication at scale. Large-format precision architectural steel panels, monumental sculpture, and complex architectural structures requiring HD cut quality on thick plate. For architectural metalwork firms with CNC tables handling 1/2 in. through 1-3/4 in. design plate, the FineLine 300HD's edge quality directly reduces the secondary finishing that is otherwise required to achieve specification tolerances.
- Demolition, heavy MRO, and scrap processing at industrial scale. Industrial decommissioning of pressure vessels, reactor components, and heavy structural steel at 3-in. maximum capacity. Shipbreaking and heavy industrial demolition where thick plate and heavy structural sections must be cut at production rates with predictable consumable life and minimal arc start failures.
The FineLine 300HD (K4900-1) achieves production pierce capacity of 1.75 in. (45 mm) on mild steel and maximum cutting capacity of 3 in. (75 mm). Per Lincoln Electric's FineLine HD product page, stainless steel production capacity is 1.25 in. (32 mm) and aluminum production capacity is 1 in. (25 mm). Maximum capacity on stainless and aluminum is 2 in. (50 mm) using water injection and precision torch configurations. These figures represent the FineLine 300HD's capacity as the highest-output model in Lincoln Electric's FineLine HD plasma cutting system family.
The FineLine 300HD delivers 100% duty cycle at rated output (300A / 210V / 100%), designed for continuous production CNC cutting at full output without interruption. For industrial production facilities running CNC tables on two- or three-shift production schedules, 100% duty cycle at 300 A is the baseline requirement — partial duty cycle would create throughput bottlenecks that undermine the capital investment in a high-definition plasma system at this price and capacity level.
The FineLine 300HD uses Lincoln Electric's proprietary CleanStrike arc start technology within the FineLine Arc Start Console — the precision arc start system specific to HD plasma systems. Unlike handheld plasma cutters, the FineLine 300HD is a dedicated automated system where arc start is managed by the Arc Start Console integrated into the system, delivering consistent pierce performance on all compatible metals. The system does not use simple blow-back or HF arc start approaches; the Arc Start Console generates the precise initiation voltage required for HD plasma operation.
The FineLine 300HD is exclusively designed for automated/mechanized cutting systems — CNC cutting tables, robotic cutting systems, pipe profiling machines, and structural beam processing lines. It is not designed for handheld use. The single-interface HMI control allows the CNC motion controller to manage all plasma parameters automatically, including gas pressure adjustment for material and thickness changes. For large-format CNC table installations (10-ft and larger cutting beds), the FineLine 300HD is the appropriate plasma power source for 3/4 in. to 1-3/4 in. steel production cutting. Contact WeldingMart for FineLine 300HD compatibility with your specific CNC table platform.
The FineLine 300HD supports five plasma gas types (O₂, N₂, Air, H17, Argon) and multiple shield gas options (Air, N₂, H₂O) at 105–145 PSI (7.6–10 Bar) system inlet pressure. A complete multi-gas supply system — high-purity oxygen, nitrogen, and specialty gas (H17) with appropriate high-pressure regulators, manifolds, and distribution piping — is required for full multi-material cutting capability. Compressed air can be used for air-plasma cutting mode from a rotary screw compressor producing 20+ SCFM at 150 PSI. Water injection capability for H₂O shield cutting on stainless requires a clean water supply and water injection module (contact WeldingMart for FineLine water injection configuration details).
