What power source and gun is the Lincoln Power Feed 84 U/I, No Reel, Gouge Kit, USB K3328-12 compatible with?

Wire feeders are compatible with MIG guns and welding power sources that match the feeder's amperage rating and connector type. Lincoln Electric wire feeders are engineered to work with Lincoln power sources using Lincoln Magnum guns and consumables. Third-party compatibility may require adapter cables — contact us to confirm compatibility before ordering.

How do I select the right drive rolls for the Lincoln Power Feed 84 U/I, No Reel, Gouge Kit, USB K3328-12?

Drive roll selection depends on wire type and diameter: use knurled (serrated) drive rolls for flux-core and metal-core wire, and V-groove (smooth) drive rolls for solid MIG wire. Common wire diameters — .023 in, .030 in, .035 in, .045 in — each require matched drive rolls. Using the wrong drive roll type can crush flux-core wire or slip on solid wire.

How do I set wire feed speed on the Lincoln Power Feed 84 U/I, No Reel, Gouge Kit, USB K3328-12?

Wire feed speed (WFS) is one of the primary variables controlling heat input and bead profile in MIG welding. Higher WFS increases deposition rate and amperage (in constant-voltage mode). For .035 in ER70S-6 on 1/8 in mild steel, a starting WFS of 200–350 in/min at 18–21V is a common baseline. Fine-tune to achieve a steady arc sound without spatter or porosity.

What routine maintenance does the Lincoln Power Feed 84 U/I, No Reel, Gouge Kit, USB K3328-12 require?

Regular wire feeder maintenance includes: clean the wire conduit/liner every 3–6 months (or when wire feed becomes erratic), replace the liner when it shows kinks or buildup that cleaning cannot clear, inspect and clean the drive rolls monthly, and check all connection points for corrosion or looseness. A consistent, clean wire path is the most important factor in stable arc performance.

What warranty does the Lincoln Power Feed 84 U/I, No Reel, Gouge Kit, USB K3328-12 carry?

Lincoln Electric wire feeders are backed by a manufacturer's limited warranty covering defects in materials and workmanship. Consumable items (liners, drive rolls, contact tips) are not covered under warranty. Contact your Lincoln Electric distributor or WeldingMart.com for warranty service procedures.

1 2

Lincoln Power Feed 84 U/I, No Reel, Gouge Kit, USB K3328-12

SKU: K3328-12

$7,569.77 ~~$8,089.67~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

Overview

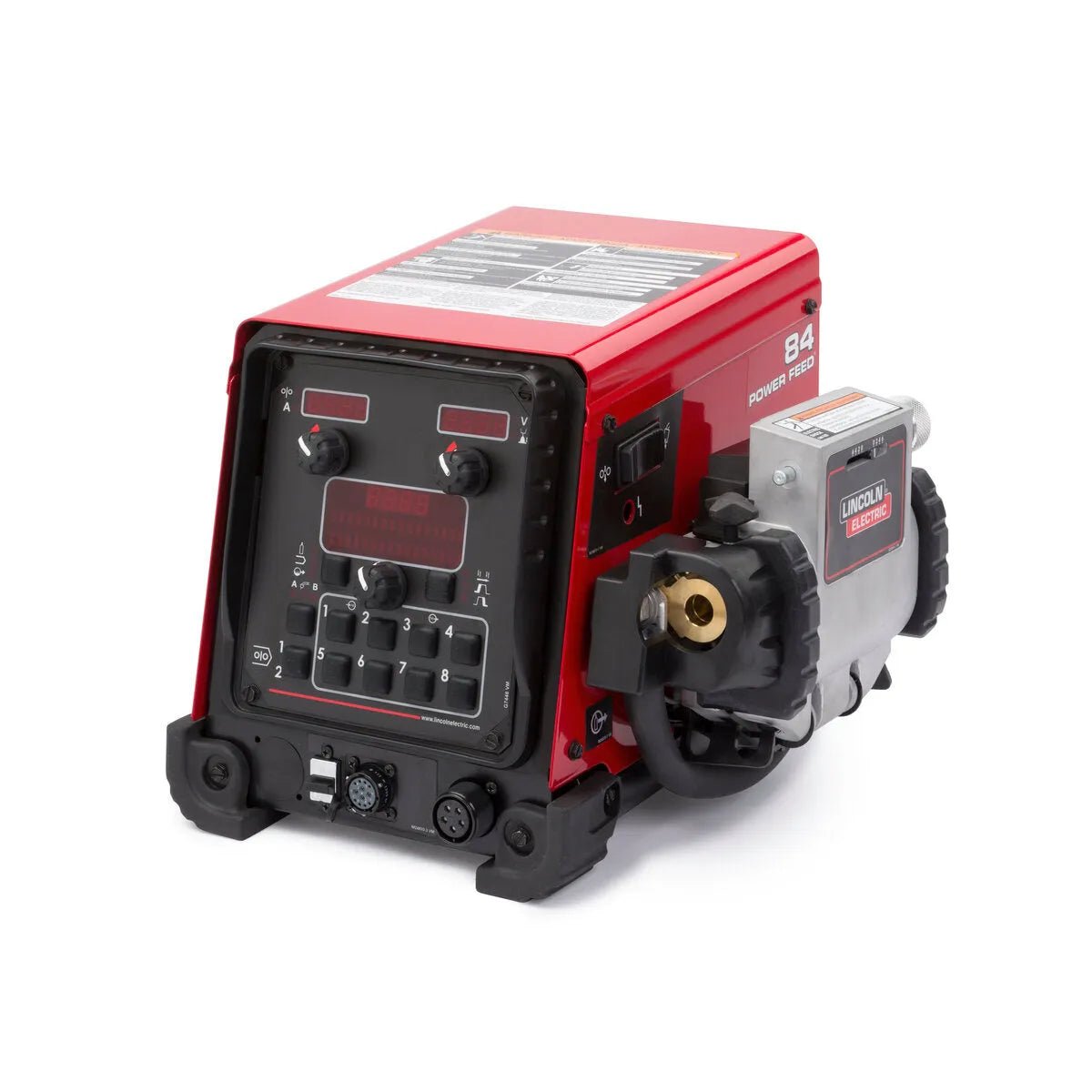

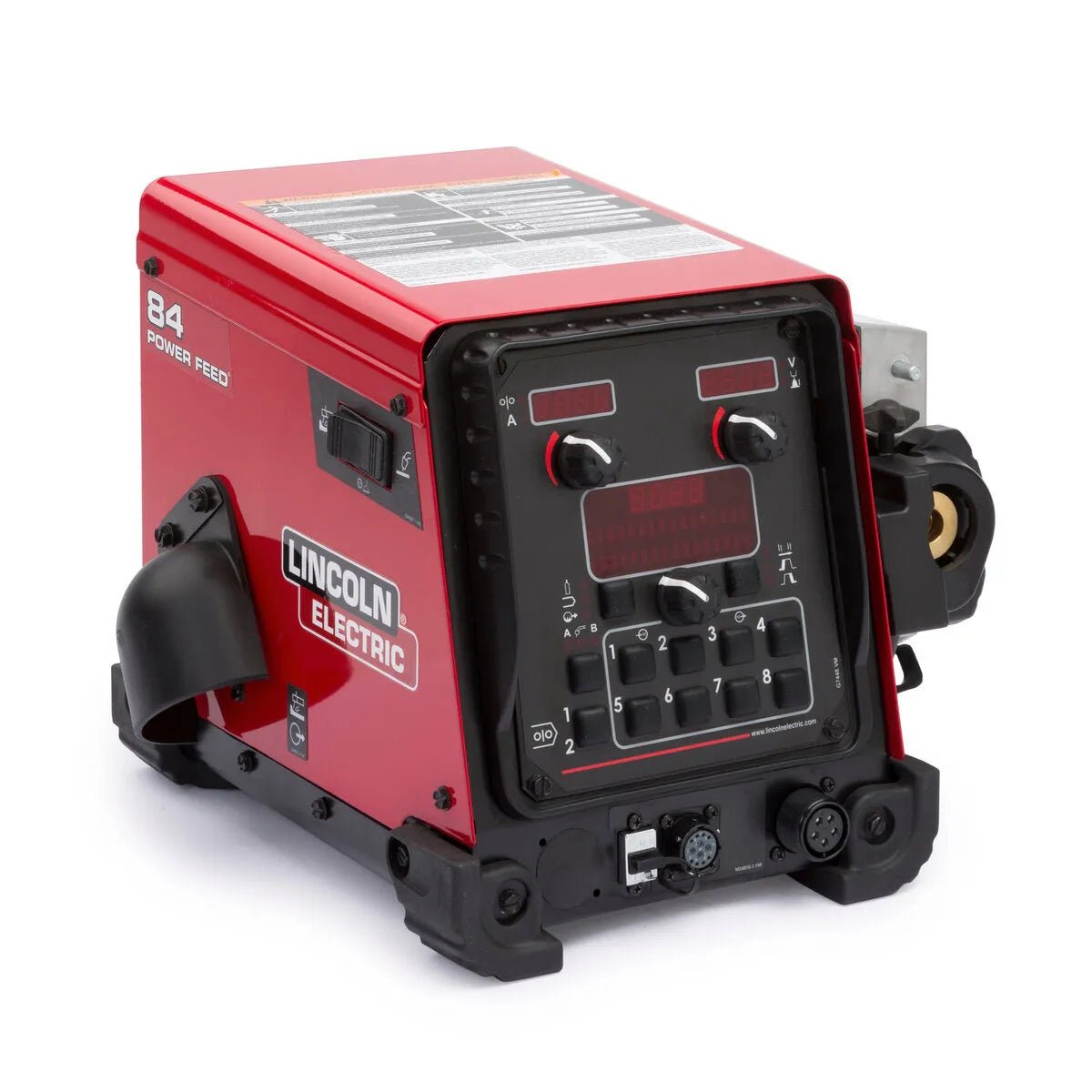

Lincoln Power Feed 84 U/I, No Reel, Gouge Kit, USB K3328-12

Single Digital Control Semiautomatic Wire Feeders The Power Feed 84 semiautomatic industrial wire feeder is built on a modular platform to be used in a variety of applications. Simple & Customizable Controls Auto Settings simplify process setup Eight User Memories- Per Feed Head for complete WPS recall Rugged Improved Isolation & Environmental Protection Robust connection points allow for reliable operation in tough conditions Modular Modularity allows for customizable configurations Advanced Interface – includes digital meters for actual and preset weld display and full weld sequence control including run-in, start, weld, burnback and crater parameters. USB Port – included on select models for unlimited memory expansion or for future upgrades. Feed plate – can be located on either right or left side of the wire drive housing for easy integration into any work center. Electrode input stud – mounted on the wire drive frame – protects the feed plate from misuse caused by pulling on the gun cable. New Gun Adapters – deliver improved electrical reliability, less voltage loss and simplified connection. Optional Digital Gas Flow Kit – displays actual gas flow rate while welding. Push-pull capable – drive systems.

Features

New Auto-Settings simplify process setup
Eight User Memories – Per feed head for complete welding procedure recall
Improved isolation & environmental protection
Robust connection points allow for reliable operation in tough conditions
Modularity ensures the feeder can be configured to fit a variety of application needs

Specifications

Feature	Value
Typical Applications	Construction Mining Railroad Maintenance Cross Country Pipeline Armor Plate (Military) Automotive Brewery Construction & Field Erection Dissimilar Metals Distillery Elevated Temperature Piping Galvanized Steel Gasification Plants General Fabrication Glass Industry Heat Exchangers Heavy Equipment Heavy Fabrication High Pressure Piping High Temperature High-strength Pipe LPG & LNG Storage Vessels Maintenance & Repair Marine Applications Marine Fabrication & Repair NACE Applications Offshore Oil & Gas Petrochemical Petrochemical Industry Petroleum Processing Pharmaceutical Equipment Pipeline & Offshore Piping Power Generation Power Plants Pressure Vessels Process Piping Railcar Fabrication Railing Industry Casting Repair Repair Welding Robotics Robotics/ Hard Automation Shipbuilding Structural Fabrication Structural Welding
Processes	Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Simulated Stick (SMAW) HyperFill GMAW-STT Metal-cored Wire (GMAW-C) Arc Spray Simulated TIG (GTAW) Simulated MIG (GMAW) Plasma Gouging
Equipment Classification	Advanced

Includes

User Interface Standard #2 - #4 gun adapter 20 tooth pinion gear Conduit inlet bushing (K3929-1) Heavy duty wire reel stand USB Gouge kit
