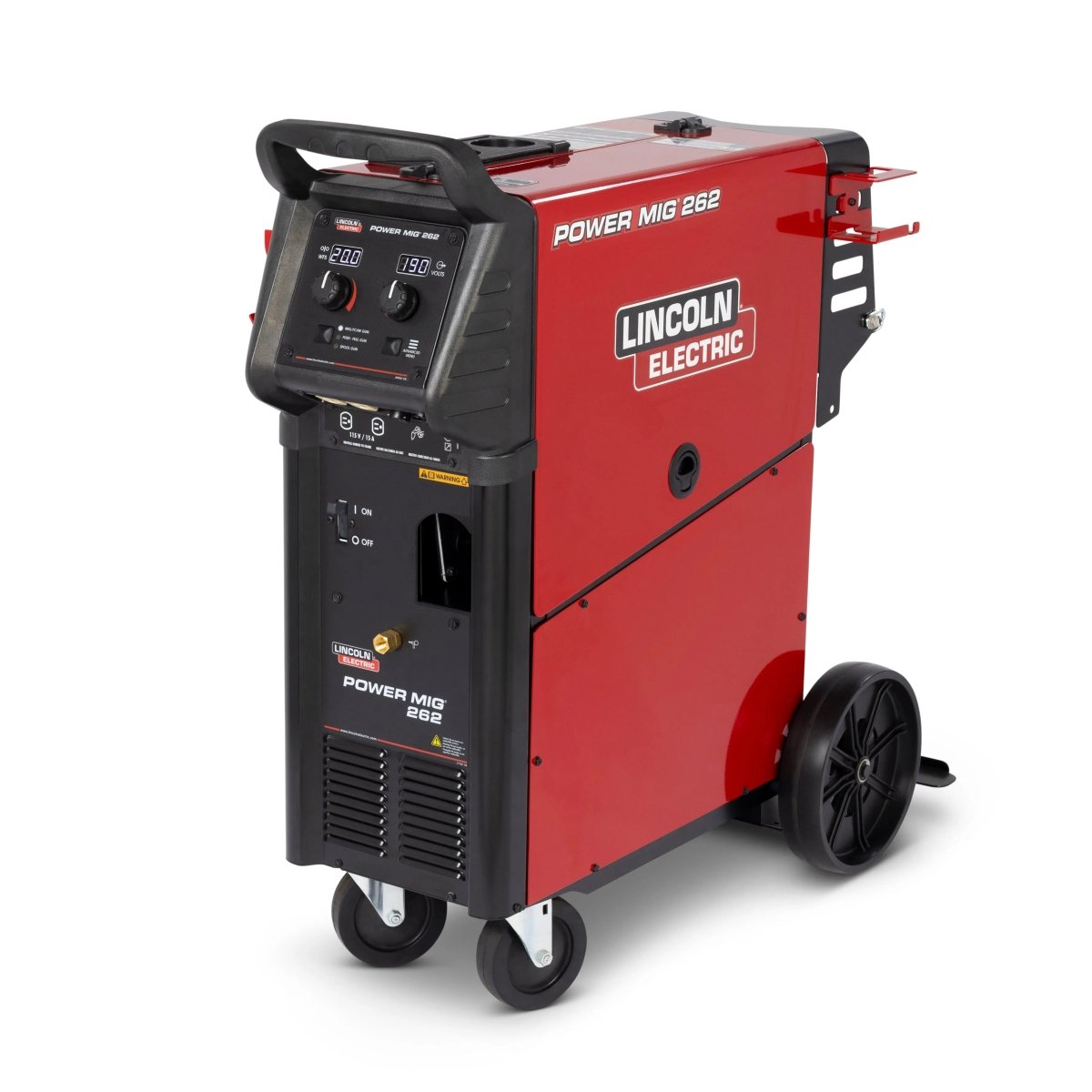

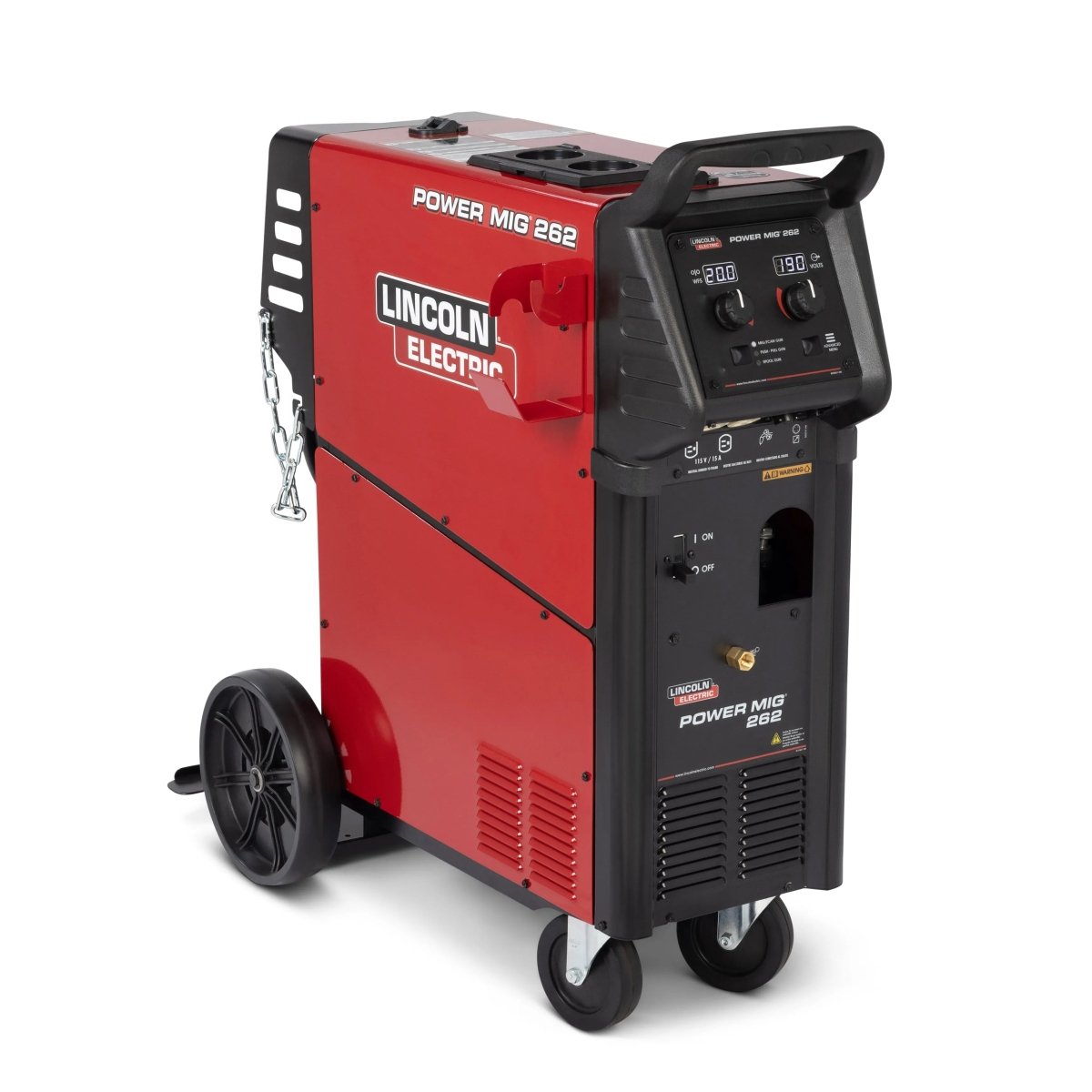

The Lincoln Power MIG 262 MIG Welder (K5706-1) is a 300 amp, professional-grade MIG and flux-cored welder for fabrication shops, maintenance and repair, auto body and light industrial work. It delivers a 5-300A output range, a 60% duty cycle at 230A, and runs on 208/230/460/575V single-phase input power. The rugged MAXTRAC industrial wire drive feeds 0.023 - 3/64 in (0.6 - 1.2 mm) wire at 50-700 ipm, and spool gun and push-pull gun capability lets you take on aluminum. Every package ships ready to weld with a Magnum PRO 250L MIG gun, gas regulator and drive roll kit.
| Model | Power MIG 262 |
|---|---|
| Manufacturer Code | K5706-1 |
| Output Amperage Range | 5-300A |
| Rated Output / Duty Cycle | 230A @ 26.5V, 60% Duty Cycle |
| Input Voltage | 208/230/460/575V |
| Phase | Single-phase, 60 Hz |
| Input Current @ Rated Output | 49.1 / 44 / 22.1 / 17.6A |
| Max Open Circuit Voltage | 90V |
| Wire Feed Speed | 50-700 ipm (1.3-17.7 m/min) |
| Wire Diameter Range | 0.023 - 3/64 in (0.6 - 1.2 mm) |
| Wire Drive | MAXTRAC Industrial Wire Drive |
| Welding Processes | MIG (GMAW), Flux-Cored (FCAW) |
| Gun Compatibility | MIG Gun, Spool Gun, Push-Pull Gun |
| Dimensions (H x W x D) | 37.5 x 18 x 37.5 in (952.5 x 457.2 x 952.5 mm) |
| Weight | 250 lbs (113.4 kg) |
- 300 amp max output — enough power for general fabrication, light industrial production, and maintenance and repair welding
- Simple user interface — a seven-segment display with basic knob controls for voltage, gun selection and an advanced menu, so setup is fast for any operator
- MAXTRAC industrial wire drive — holds a constant wire feed speed for smooth, consistent MIG welds
- Angled gun connection — improves feedability and reduces wire feeding issues
- Two 115V front power outlets — run grinders, lights and other shop tools directly from the welder
- Shop-ready design — ergonomic front handle, Coil Claw cable organizer and side-mounted tool holder keep your work station clean and organized
- Aluminum-ready — compatible with Lincoln Magnum PRO spool guns and push-pull guns for aluminum MIG welding
- Lincoln Power MIG 262 MIG Welder (K5706-1)
- K4530-2 Magnum PRO 250L Welding Gun with over-molded handle for comfort, grip and reduced hand fatigue
- K586-1 Adjustable Gas Regulator and Hose
- KP1696-1 Drive Roll Kit, 0.035/0.045 in solid wire
- 10 ft Work Cable with Clamp
- 10 ft Power Cable with Plug
- Metal fabrication shops — 300A output and a 60% duty cycle at 230A handle steady MIG and flux-cored production on mild steel and stainless
- Maintenance and repair — 208-575V input flexibility fits plant, farm and facility power, and front 115V outlets power your tools at the machine
- Auto body and sheet metal — a low 5A minimum output and precise wire feed control help you weld thin-gauge material cleanly
- Light industrial and aluminum work — add a Magnum PRO spool gun or push-pull gun for aluminum MIG welding
- K3675-1 Canvas Cover — flame retardant, mildew resistant and water repellent
- K3676-1 Dual Cylinder Cart — mounts two full-size gas cylinders side by side
- K3570-2 Magnum PRO 250LX Spool Gun with K2910-1 Connector Cable — 280A, 60% duty cycle, feeds 0.025-3/64 in aluminum wire
- K4797 Series Magnum PRO AL Fixed Conduit Push-Pull Guns
- K4700-1-6-116A Magnum PRO Curve 300 AL Push Gun
- K3667-1 Spool Gun Holder
- K489-8 Fast-Mate Adapter
- K468 Spindle Adapter, K435 14 lb Coil Adapter and K363P Readi-Reel Adapter
- KP1697 Cored and KP1695 Aluminum Drive Roll Kits
The Power MIG 262 supports MIG (GMAW) and flux-cored (FCAW) welding. It is also compatible with spool guns and push-pull guns for aluminum MIG welding.
The Power MIG 262 is rated at 230A @ 26.5V at a 60% duty cycle. That means it can weld continuously at 230 amps for 6 minutes out of every 10 before it needs to cool down.
It has a 5-300 amp output range, with a maximum output of 300 amps.
The K5706-1 runs on 208, 230, 460 or 575V single-phase, 60 Hz input power and ships with a 10 ft power cable with plug.
With the right drive roll kit, it feeds 0.023 - 3/64 in (0.6 - 1.2 mm) solid, flux-cored and aluminum wire at 50-700 ipm. It ships with a KP1696-1 0.035/0.045 in solid wire drive roll kit. KP1697 cored wire and KP1695 aluminum wire kits are sold separately.
Yes. Pair it with the Magnum PRO 250LX spool gun (K3570-2 with K2910-1 cable), a Magnum PRO AL push-pull gun, or the Magnum PRO Curve 300 AL push gun for aluminum MIG welding.
Yes. The Lincoln Power MIG 262 (K5706-1) is the replacement for the discontinued Power MIG 256 (K3068-1, K3068-2 and K3069-1).
The K5706-1 includes a K4530-2 Magnum PRO 250L MIG gun, a K586-1 adjustable gas regulator and hose, a KP1696-1 drive roll kit, a 10 ft work cable with clamp, and a 10 ft power cable with plug.
It weighs 250 lbs (113.4 kg) and measures 37.5 x 18 x 37.5 in (H x W x D).
All new Lincoln Electric welders ship with the standard Lincoln 3-year warranty (parts and labor) on the power source. Consumables and contact tips are wear items not covered by warranty. Factory-demo units carry the Lincoln demo warranty — contact us for current terms.
