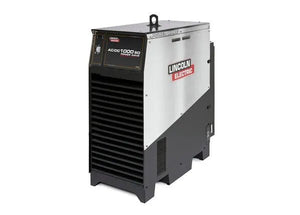

The Lincoln Power Wave AC/DC 1000 SD is an advanced submerged arc welder that brings Waveform Control Technology to submerged arc welding. This versatile machine offers both constant current and constant voltage operation, with variable frequency and amplitude settings. Its software-driven AC, DC positive, or DC negative output provides advanced control over deposition rate and penetration, resulting in increased weld speeds, consistently higher quality welds, and improved efficiency in single or multi-arc configurations.
Compare With Power Wave AC/DC 1000SD K2803-1 Full Five Year Factory Warranty
This welder excels in productivity, quality, and flexibility. It features automatic polarity switching, eliminating the need for hardware reconfiguration. The simple multi-arc configuration allows for synchronization of multiple arcs or parallel machines, maximizing productivity. Advanced connectivity is standard, with access to Lincoln Electric Power Wave® Manager and Lincoln Electric Checkpoint® Production Monitoring, enabling remote configuration, process control, and quality assurance.
The Power Wave® AC/DC 1000® SD incorporates several innovative technologies to enhance performance and efficiency. The True Energy™ feature measures, calculates, and displays instantaneous energy in the weld for critical heat input calculations. The 115V AC duplex auxiliary power receptacle features Surge Blocker™ Technology, ensuring welding performance is not compromised by high starting current devices.
Built for reliability and global compatibility, this welder is IP23 rated for harsh environments and accepts 380-575 VAC, 50/60Hz input voltage. It offers input voltage compensation for consistent operation over ±10% input voltage variation. The 95% power factor correction results in substantial energy cost savings compared to traditional transformer-based equipment. Each unit undergoes factory burn-in testing at maximum output for 2 hours to ensure quality and reliability.
- Waveform Control Technology® for advanced submerged arc welding
- Automatic polarity switching without hardware reconfiguration

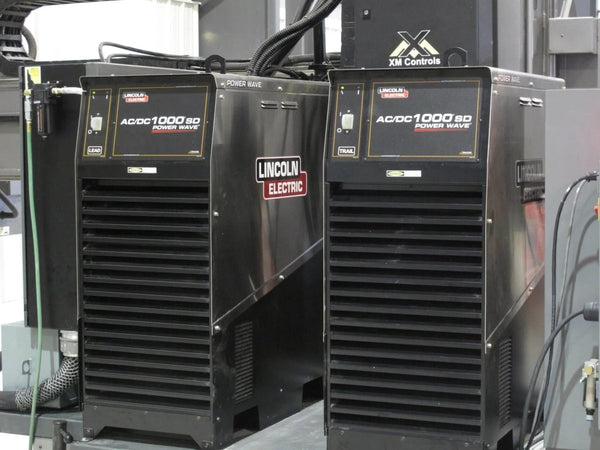

- Simple multi-arc configuration for synchronized or parallel operation
- Advanced connectivity with Power Wave® Manager and Checkpoint® Production Monitoring
- IP23 rated for severe duty reliability
- 380-575 VAC, 50/60Hz input voltage for global compatibility
- Input voltage compensation for reliable operation
- 95% power factor correction for energy efficiency
- True Energy™ feature for instantaneous energy measurement
- 115V AC duplex auxiliary power with Surge Blocker™ Technology
- Factory burn-in tested for quality assurance
The Power Wave AC/DC 1000SD Advanced Sub Arc is a multi-process industrial power source supporting MIG (GMAW), flux-core (FCAW), Stick (SMAW), DC TIG (GTAW), and advanced pulsed MIG processes. The Power Wave and Flextec series are designed for both manual and automated welding applications. Refer to the spec sheet for the full process list for your specific model.
Input power requirements vary by model. Smaller multi-process units may accept single-phase 208/230V or multi-voltage input. Industrial Power Wave and Flextec models typically require three-phase 208–575V input. Check the spec sheet and machine nameplate for exact input power specifications before installation.
Yes — the Lincoln Electric Power Wave and Flextec series are designed for both manual and automated welding applications. They feature ArcLink® digital communication for integration with Lincoln Electric wire feeders, robots, and automated systems. Contact WeldingMart or Lincoln Electric for automation integration assistance.
Lincoln Electric multi-process power sources in this class are compatible with Lincoln's industrial wire feeder family via ArcLink digital connection. Compatible feeders include the LF-72, LF-74, MAXsa, and other Lincoln wire feeders. Refer to the owner's manual for a complete compatibility list.
Output range and duty cycle are listed in the spec sheet. Industrial Lincoln Electric power sources in this class are typically rated for 100% duty cycle at maximum output, making them suitable for continuous production welding environments.
Yes — this is a factory demo or low-hour unit sourced directly from Lincoln Electric. Units are mechanically tested before sale and may show light cosmetic wear. Contact WeldingMart for information on remaining manufacturer warranty for your specific unit number.
