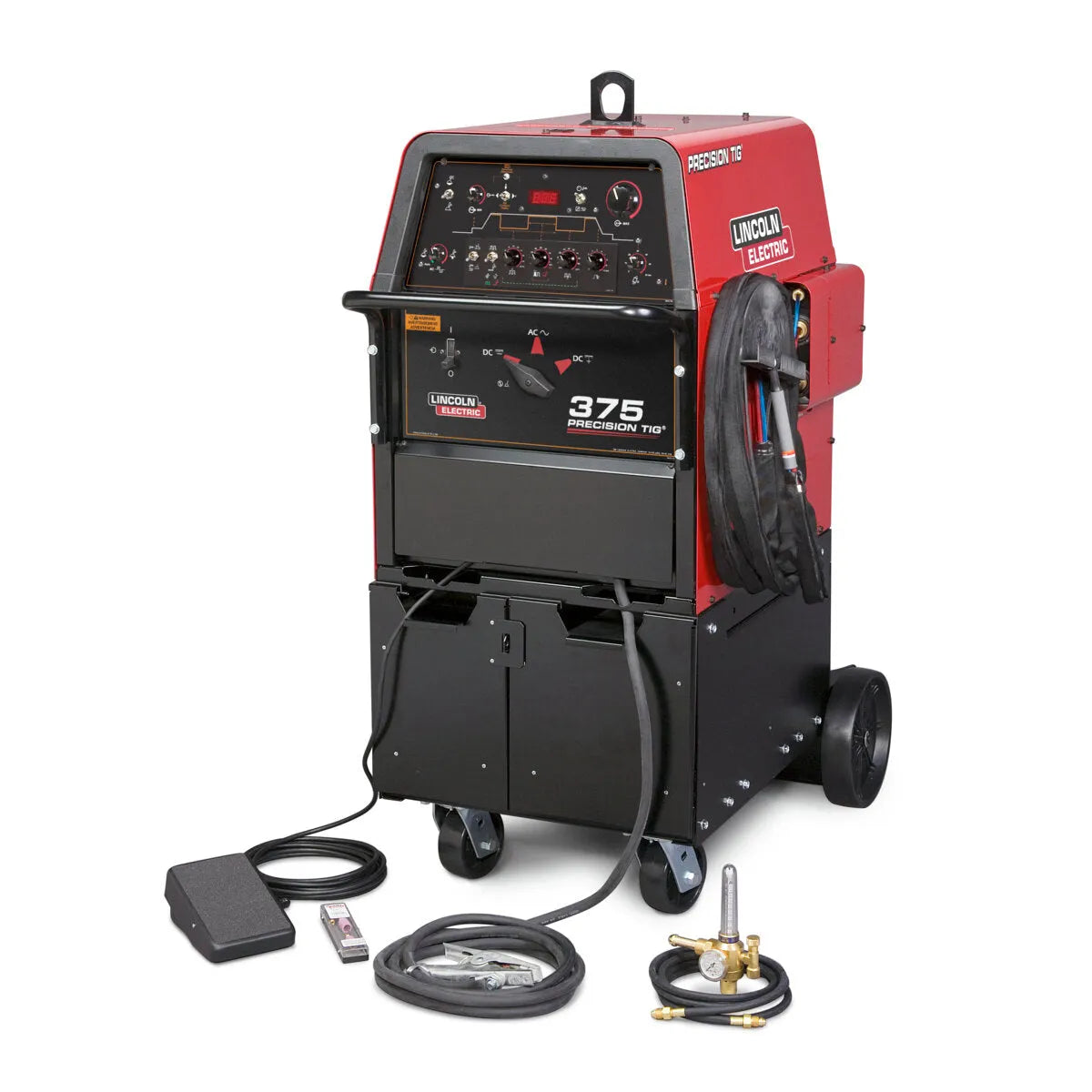

Lincoln Precision TIG 375 TIG Welder Ready-Pak - K2624-1
The Lincoln Precision TIG® 375 represents the pinnacle of industrial TIG welding capability, specifically engineered for demanding applications involving thicker materials and heavier-duty production requirements. This professional-grade welding system delivers the highest duty cycle in its class, providing exceptional performance reliability during extended operation periods without compromising output quality. The Precision TIG 375 comes standard with an integrated TIG pulser that offers sophisticated heat input control, effectively reducing distortion and preventing burn-through on thin materials while maintaining precise welding characteristics on thicker workpieces. The implementation of Lincoln's patented Micro-Start™ II Technology significantly enhances arc initiation stability and maintains consistent performance throughout the welding process, resulting in exceptionally precise welds and superior crater fills.
The Precision TIG 375 incorporates Lincoln's innovative AC Auto Balance® technology, which automatically determines and maintains the optimal ratio between cleaning action and penetration when welding aluminum materials, eliminating guesswork and ensuring consistent results. For operators requiring greater control, the manual AC Balance® adjustment allows precise customization of the cleaning-to-penetration ratio based on specific application requirements or material conditions. The standard Advanced Pulse Control functionality provides sophisticated TIG pulsing capabilities that effectively minimize material distortion from excessive heat input while simultaneously moderating filler metal deposition for exceptionally consistent bead appearance and improved weld quality across diverse material thicknesses.
With an impressive output range spanning from 2 to 420 amps, the Precision TIG 375 offers unparalleled operational flexibility, allowing welders to effectively tackle projects across the entire material thickness spectrum from delicate thin-gauge components to substantial industrial applications. Designed with practical workflow considerations, the system incorporates thoughtful ergonomic features including side-mounted torch holder and connection points that facilitate efficient cable management and provide protection for sensitive components while creating a dedicated storage location for the torch when not in use. This combination of industry-leading duty cycle, advanced technological features, exceptional performance capabilities, and practical design considerations establishes the Lincoln Precision TIG 375 as the definitive solution for professional welding operations requiring maximum capability and reliability.
Key Features
- Industry-leading duty cycle providing exceptional reliability during extended welding operations.
- Standard integrated TIG pulser delivering sophisticated heat input control across diverse material thicknesses.
- Patented Micro-Start™ II Technology enhancing arc initiation, stability, and precision throughout the welding process.
- Innovative AC Auto Balance® functionality automatically determining optimal cleaning-to-penetration ratios for aluminum welding.
- Manual AC Balance® adjustment capabilities providing precise control over cleaning action and penetration characteristics.
- Expansive output range spanning from 2 to 420 amps accommodating the widest variety of material thicknesses in its class.
- Advanced Pulse Control functionality enabling superior heat management and consistent bead appearance.
- TIG pulsing capabilities minimizing material distortion and warping when working with thin-gauge components.
- Ergonomic side-mounted torch holder and connection points facilitating efficient cable management and protection.
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 49.7 in x 28 in x 41 in (1262 mm x 711 mm x 1041 mm) |
| Net Weight | 755 lbs (342.468 kg) |
General Specification
| Input Voltage | 208/230/460 |
| Input Current | 40% Duty Cycle with PFC: 112/102/51A, 60% Duty Cycle: 102/92/46 |
| Input Hertz | 60 |
| Input Phase | 1 |
| Input Power | 208/230/460/1/60 |
| Mode Icon | CC |
| Output Range | 2-420A, Max OCV: 80V |
| Polarity | AC/DC |
Application
| Typical Application | Construction Automotive Brewery Distillery General Fabrication Heavy Fabrication Maintenance & Repair Marine Applications Marine Fabrication & Repair Pharmaceutical Equipment Shipbuilding |
Warranty
| Warranty | 3 Years |
