FUME EXTRACTION SYSTEM

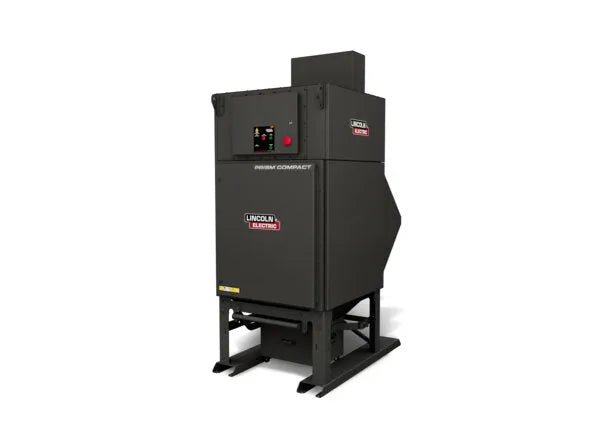

The Prism™Compact from Lincoln Electric is a revolutionary fume extraction system developed for cutting tables; robotic cells and any other applications requiring an extraction hood. The system uses our current Prism vertical filter technology; and is designed for portability and ease of use in height-restrictive environments. This more compact configuration enables the unit to be easily loaded and unloaded from a shipping trailer without a pallet. The slotted leg base allows for easy transportation and installation; which facilitates positioning in different locations around a single building.
We incorporated the Prism Thermal Suppression system into this variation of the Prism Compact to help provide an extra layer of safety and greater peace of mind. Lincoln Electric strongly recommends using a Thermal Suppression system in addition to the integrated spark arrestor when welding oily or stamped parts.
Compact Size - Can be placed directly next to a cutting table or robotic cell
Ships on One Pallet - Allows for easy transportation throughout the facility
Crane-less assembly - Makes for moving the system to a new location extremely easy
Quiet Operation - Silencer and sound deadening materials drastically reduces airflow noise
Simple Maintenance - System will automatically start cleaning process once pre-set pressure differential is reached. Vertical filter orientation allows for more efficient cleaning
Intelligent Fan Controls - Variable speed drive (VFD) regulates fan speed based on filter loading to maximize fume extraction; conserve energy and extend life of the equipment
Integrated Spark Arrestor - Reduces the overall footprint of the unit while adding an additional layer of safety
Prism™Thermal Suppression - Adds an easy to maintain thermal suppression system to the filter bank for added safety. Recommended for oily and stamped applications
- Compact Size - Can be placed directly next to a cutting table or robotic cell
- Crane-less assembly - Makes for moving the system to a new location extremely easy
- Quiet Operation - Silencer and sound deadening materials drastically reduces airflow noise
- Simple Maintenance - System will automatically start cleaning process once pre-set pressure differential is reached. Vertical filter orientation allows for more efficient cleaning
- Intelligent Fan Controls - Variable speed drive (VFD) regulates fan speed based on filter loading to maximize fume extraction; conserve energy and extend life of the equipment
- Integrated Spark Arrestor - Reduces the overall footprint of the unit while adding an additional layer of safety
General
| Product Type | Prism Compact |
| Style | Central Filtration |
| Motor Power (HP) | 5 HP |
| Input Current (Amps) | 7.5 Amps |
| Input Hertz | 50/60 |
| Input Phase | 3 |
| Input Voltage | 380-480 |
| Air Flow | 2400 |
| Arm Type | 5 HP 2400 CFM |
| High Vac or Low Vac | Low Vac |
| Product Height (in) | 114 |
| Product Height (mm) | 2896 |
| Product Width (in) | 45 |
| Product Width (mm) | 1143 |
| Product Length (in) | 70 |
| Product Length (mm) | 1778 |
Application
| Typical Application | Automotive General Fabrication Heavy Fabrication Maintenance & Repair Repair Welding Robotics Shipbuilding Structural Fabrication |
Warranty
| Warranty | 3 Year |
