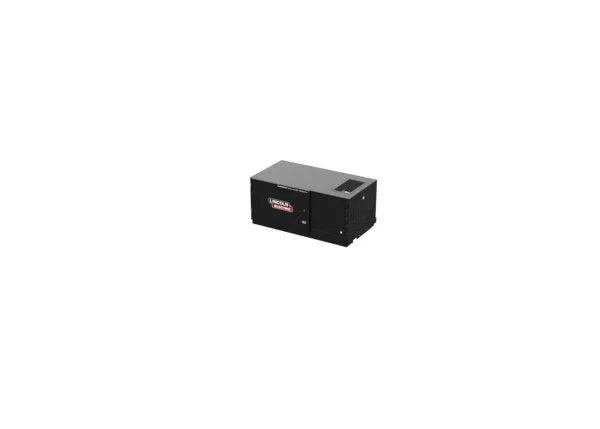

Lincoln Prism Exhaust Booth (Extraction Unit Only) 230V/1Ph - K5663-2
Specifications
General
| Product Type | Prism |
| Motor Power (HP) | 4 HP |
| Input Current (Amps) | 4.5-4A |
| Input Hertz | 50-60Hz |
| Input Phase | 1 |
| Input Voltage | 208-230V |
| Duty Cycle | 100% |
| Sound Level | 67dBA (Clean filters, Approx. 85% speed), 70dBA (Saturated Filters, 100% speed) |
| Air Flow | 1000 CFM split between both extraction sources |
| Standard Arm Dimensions | None |
| Arm Type | None |
| Filter Area sq ft (sq m) | 560 (52) |
| Filter Type (MERV Rating) | MERV 16 |
| Type of Cleaning | None |
| High Vac or Low Vac | Low Vac |
| Product Weight (lbs) | 380 |
| Product Weight (kg) | 173 |
Warranty
| Warranty | 3 Years |
