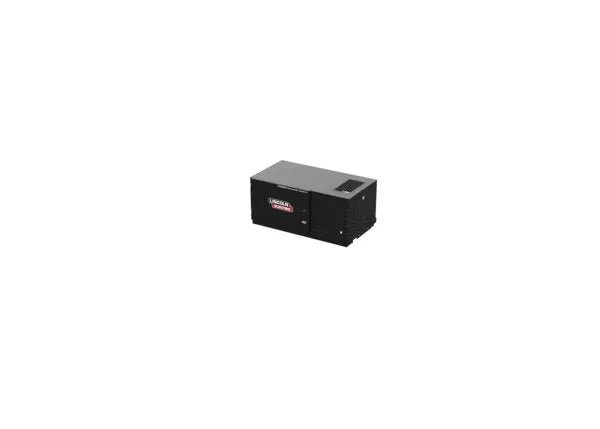

Lincoln Prism Exhaust Booth (Extraction Unit Only) 230V/3Ph - K5663-1
General
| Product Type |
Prism |
| Motor Power (HP) |
1.5 HP |
| Input Current (Amps) |
6-6.7A |
| Input Hertz |
50-60Hz |
| Input Phase |
3 |
| Input Voltage |
208-230V |
| Duty Cycle |
100% |
| Sound Level |
65dBA (Clean filters, Approx. 60% speed), 73dBA (Saturated Filters, 100% speed) |
| Air Flow |
1000 CFM split between both extraction sources |
| Standard Arm Dimensions |
None |
| Arm Type |
None |
| Filter Area sq ft (sq m) |
560 (52) |
| Filter Type (MERV Rating) |
MERV 16 |
| Type of Cleaning |
None |
| High Vac or Low Vac |
Low Vac |
| Product Weight (lbs) |
380 |
| Product Weight (kg) |
173 |
