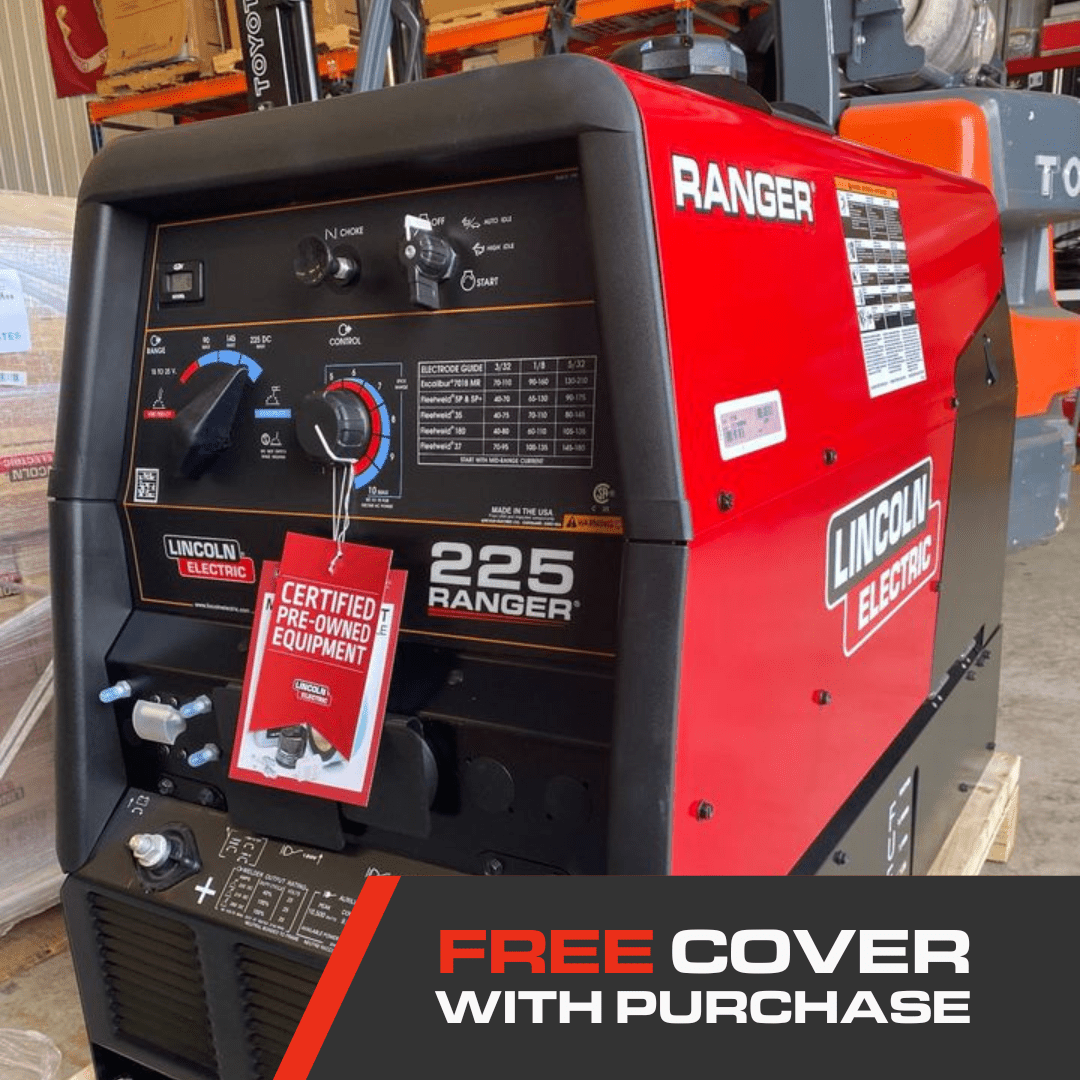

The Lincoln Electric Lincoln Ranger 225 Engine-Driven Welder Generator is a Kohler-powered engine-driven welding generator built for professional field welding in environments where utility power is unavailable or impractical. Capable of supporting Stick (SMAW), MIG (GMAW) and TIG (GTAW) processes, this machine delivers reliable welding output and auxiliary generator power for tools, lighting, and support equipment on construction sites, pipeline corridors, farms, and remote infrastructure projects.
Our certified reconditioned engine-driven welders deliver the same Lincoln reliability at significant savings. 17 units currently in stock — inventory fluctuates.
View recon version →Lincoln Electric engine-driven welders are renowned for their arc stability, rugged construction, and low-maintenance design. The Lincoln Ranger 225 Engine-Driven Welder Generator delivers consistent welding performance across a wide range of electrodes and wire types, making it a dependable choice for ironworkers, pipefitters, maintenance crews, and general contractors who weld in the field daily. The U2857-1 is a factory-certified low-hour demo unit that carries the same Lincoln Electric warranty coverage as a new machine, offered at a significant discount.
- K2857-1 – Ranger 225 Engine Driven Welder (Kohler)
- U2857-1 – Ranger 225 Low Hour Factory Demo Engine Driven Welder Kohler
- Engine-driven design provides complete independence from utility power — ideal for remote job sites
- Multi-process capability supporting Stick (SMAW), MIG (GMAW), TIG (GTAW), and Flux-Cored (FCAW) welding
- Integrated AC generator output powers lights, grinders, and hand tools simultaneously
- Kohler engine delivers reliable starting, low fuel consumption, and extended service intervals
- Robust sheet-metal enclosure protects internal components from dust, debris, and weather
- Lincoln Electric Chopper Technology® for smooth, stable arc performance across all amperage ranges
- Low-profile, balanced design for undercarriage or truck-bed mounting
- Factory demo unit inspected and certified to same performance standards as new equipment
- Pipeline construction and cross-country pipe welding (SMAW, GTAW root passes)
- Structural steel erection and ironwork at sites without grid power
- Oil and gas field maintenance and emergency repair welding
- Farm, ranch, and heavy equipment maintenance in remote locations
- Disaster recovery, military, and emergency response welding operations
Lincoln Electric engine-driven welders combine proven power generation technology with industry-leading arc performance in a single, field-hardened package. Whether you select the new-unit configuration for maximum warranty coverage or the factory-certified demo model for outstanding value, both SKUs deliver the consistent output quality and reliability that professionals depend on when welding away from the grid.
Our certified reconditioned engine-driven welders include the same Lincoln reliability with significant savings. Recon inventory fluctuates — check current availability.
Shop Reconditioned Engine-Driven Welders →Lincoln lists the welding processes for the Ranger 225 as: Stick, TIG, MIG, Flux-Cored. Source: Lincoln spec sheet E6.89.
Yes. Lincoln publishes the auxiliary AC generator output for the Ranger 225 as: single-phase 10,500 Watts Peak / 9,000 Watts Continuous (60 Hz Single Phase). Lincoln publishes these receptacles for this machine:
- Two 120V Duplex Receptacles — 120V, 20A per Duplex, 40A Total, NEMA 5-20R
- 120V/240V Receptacle (Full KVA) — 120V/240V, 38A Each 120V Branch; 38A @ 240V, NEMA 14-50R
Source: Lincoln spec sheet E6.89.
The Ranger 225 on this listing is powered by a Kohler OHV Command CH730 gasoline engine, 23 HP @ 3600 RPM. Kohler engines in this line are gasoline or LP-Gas — there is no Kohler diesel in the Lincoln engine-drive range. Lincoln’s current engine-warranty document brands Kohler as Rehlko (formerly Kohler). Source: Lincoln spec sheet E6.89.
Duty cycle varies by output setting. Lincoln rates the Ranger 225 at 225 A / 25 V / 40% duty cycle in DC CC — at its maximum setting it is not a 100% machine; it reaches 100% duty cycle at 210 A / 25 V in DC CC and at 200 A / 20 V in DC CV. All rated outputs are at 104°F (40°C).
| Welding process / output mode | Rating basis | Amperes | Volts | Duty cycle | As printed by Lincoln |
|---|---|---|---|---|---|
| DC Constant Current | NOT LABELLED (CC Rated Output column) | 225A | 25V | 40% | 225A/25V/40% |
| DC Constant Current | NOT LABELLED (CC Rated Output column) | 210A | 25V | 100% | 210A/25V/100% |
| DC Constant Voltage | NOT LABELLED (CV-Rated Output column) | 200A | 20V | 100% | 200A/20V/100% |
| Mode / parameter | Range |
|---|---|
| Current Ranges (CC) | 120-225A / 70-145A / 50-90A |
| Output Range (Product Specifications table) | 50-225A DC |
| CV voltage range | 15-25V |
| Open circuit voltage | Max OCV @ 3700 RPM 80V RMS |
| Rated ambient temperature | "Welding and AC Generator Outputs rated at 104°F (40°C)." / "All rated outputs at 104°F (40°C)." |
| Specification | As printed by Lincoln |
|---|---|
| Peak / surge output | 10,500 Watts Peak |
| Continuous output | 9,000 Watts Continuous |
| Single-phase | 10,500 Watts Peak / 9,000 Watts Continuous |
| Three-phase | NONE PRESENT (single-phase machine) |
| Frequency / phase | 60 Hz Single Phase |
| Receptacle | Voltage | Amperage | NEMA type |
|---|---|---|---|
| Two 120V Duplex Receptacles | 120V | 20A per Duplex, 40A Total | NEMA 5-20R |
| 120V/240V Receptacle (Full KVA) | 120V/240V | 38A Each 120V Branch; 38A @ 240V | NEMA 14-50R |
Source: Lincoln Electric publication E6.89 (Issue Date 06/23) — view the Lincoln spec sheet PDF. Figures are Lincoln's own; “NOT STATED” means Lincoln does not publish that value for this machine.
Yes — this is a factory demo or low-hour unit directly from Lincoln Electric. Units may show light cosmetic marks from display use but are mechanically sound. The warranty on this unit is the same as on a new machine. Lincoln’s Industrial Limited Warranty (form IMWS1, Apr-2026) lists a 3-year warranty period for “All Lincoln welding machines, wirefeeders & plasma cutting machines”, and Lincoln states: “Lincoln will assume both the parts and labor expense of correcting defects during the warranty period.” As on a new machine, the engine is not covered by Lincoln’s warranty — Lincoln states: “All engines and engine accessories are warranted by the engine or engine accessory manufacturer and are not covered by this warranty.” This machine’s Kohler OHV Command CH730 engine is warranted by Rehlko (formerly Kohler): “Three Years”, and that term “BEGINS ON DATE OF PURCHASE BY END USER.” Lincoln footnotes the Rehlko (formerly Kohler) three-year term “First owner only.” Lincoln directs buyers to the engine maker — WWW.ENGINES.REHLKO.COM / 1-800-544-2444 Rehlko Service Department. See Lincoln Engine Drive Motors Warranty Contacts. Source: Lincoln Electric Industrial Limited Warranty (form IMWS1, Apr-2026).
Lincoln’s own included-items list for K2857-1 is: (1) Ranger 225 Engine Driven Welder (Lincoln K2857-1). This factory demo unit is supplied the same way. Not included: welding leads (electrode and work cable), electrode holder, work clamp, and accessory kits. No printed operator’s manual, WeldingMart demo-prep certification document or Lincoln warranty registration paperwork ships with the machine. Consumables (electrodes, gas cylinders) are not included. Leads, holders, clamps, cable connectors, undercarriages, spark arrestors, remote controls and wire feeders are sold separately — contact WeldingMart and we will quote the exact set you need.
