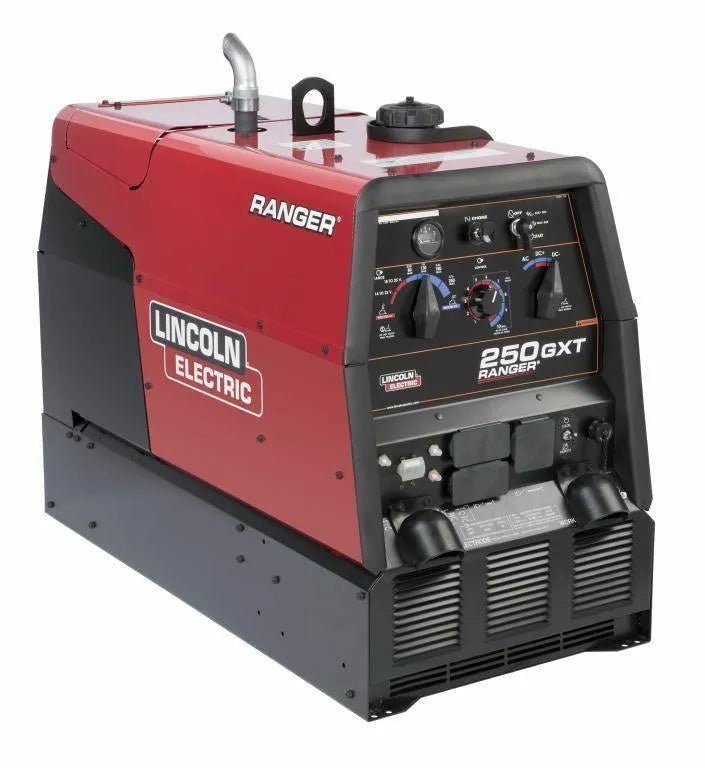

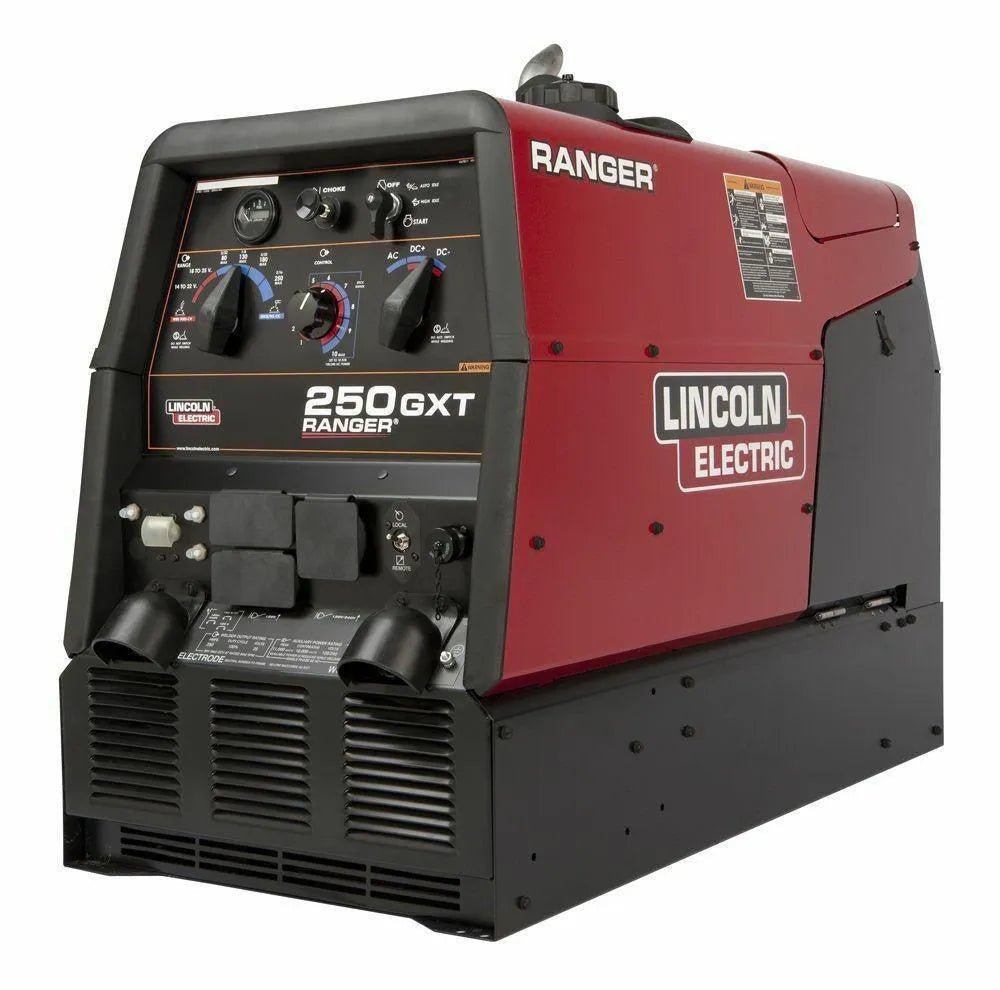

The Ranger 250 GXT features a totally enclosed case design that fully protects the engine with three service access doors for easy maintenance. It operates with impressively low noise levels - just 76.4 dBA sound level at 23 ft. (7 m) and 100.7 dB sound power (Lwa) at rated output, making it ideal for noise-sensitive work environments. Customers can choose from painted, camo wrapped, or stainless steel roof, case sides and engine doors to match their specific application requirements. The versatile AC/DC welding output accommodates a broad range of stick electrode types, while providing excellent AC TIG welding capabilities with the optional TIG Module and either a foot or hand Amptrol for aluminum and other alloy welding. The unit is also MIG and Flux-Cored capable with optional equipment, and includes a 6-pin connector and local/remote switch for convenient remote control operation.
Get all of the XTras needed for construction and maintenance work. That's XTra welding performance with 250 amps for AC or DC stick and DC wire welding and XTra power with up to 11,000 watts peak for lights, grinders or high amperage equipment. You also get XTra protection and quiet operation with the Lincoln enclosed case.

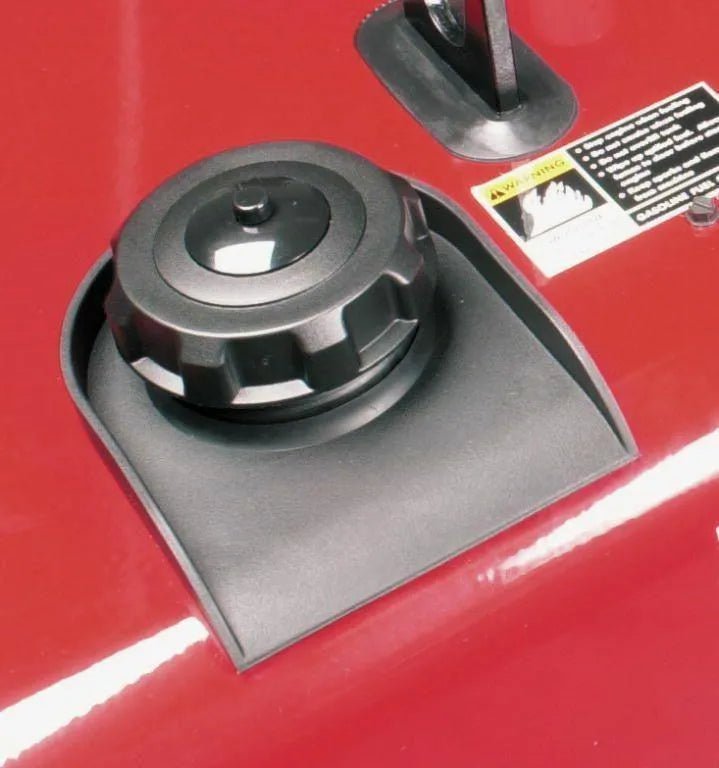

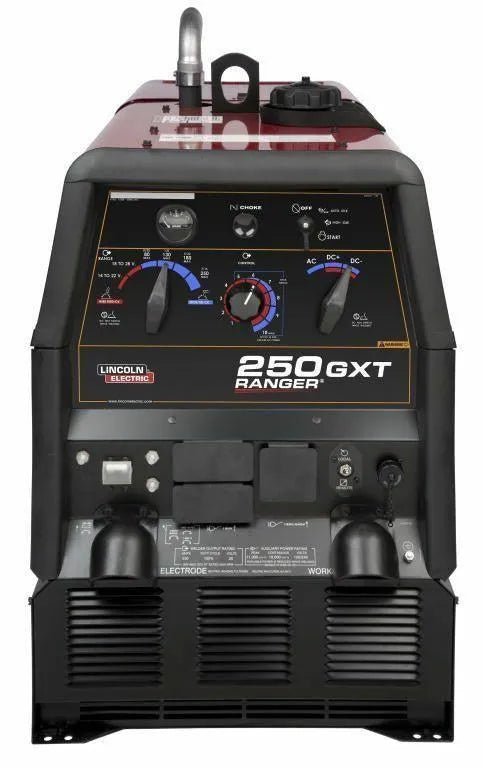

Powered by a robust 23 HP Kohler gasoline engine, this unit features a 2 cylinder, 4 cycle overhead valve air-cooled design with an electric fuel pump that effectively prevents vapor lock issues. The engine includes an oil drain extension for easy maintenance and a generous 12 gallon tank for extended run times. The electric fuel gauge conveniently located on the control panel makes it easy to check fuel levels during operation and refueling. With 11,000 watts peak single-phase AC generator power and 10,000 watts continuous power, the Ranger 250 GXT can efficiently run generators, plasma cutters, inverter welders, lights, grinders, and various power tools. Built for rugged reliability in demanding environments, both the welding and AC generator outputs are rated for performance at 104°F (40°C), ensuring dependable operation even in extreme conditions.
- Totally Enclosed Case with three service access doors and low noise operation
- Versatile AC/DC Welding for a broad range of stick electrode types and excellent AC TIG capabilities
- 11,000 Watts Peak Single-Phase AC Generator Power with 10,000 watts continuous
- 23 HP Kohler Gasoline Engine with electric fuel pump and 12 gallon tank
| Dimensions (H x W x D) | 30 in x 21.5 in x 42.3 in (762 mm x 546 mm x 1073 mm) |
| Net Weight | 602 lbs (273 kg) |
| Machines Processes | Stick (SMAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| Output Range by Mode | CC-Stick: 50 – 250 Amps, CV-Wire: 14 – 28 Volts |
| Single Phase Auxiliary Output | 10,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 14-50R |
| Engine Brand & Model | Kohler OHV Command CH730 |
| Engine Description | 2 Cylinder Air-Cooled Gasoline Engine |
| Engine Horsepower | 23 HP |
| High Idle Operating Speed @ Rated Output | 3600 |
| Fuel Tank Size (US gal.) | 12 |
| Fuel Tank Size (L) | 45.4 |
| Oil Capacity (qts.) | 2.0 |
| Oil Capacity (L) | 1.9 |
| Typical Application | Construction Construction & Field Erection General Fabrication Maintenance & Repair Repair Welding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
The Ranger 250 GXT supports Stick (SMAW) and TIG (GTAW) welding as standard processes. Many engine-driven models in this family also support MIG (GMAW) and flux-core (FCAW) welding when paired with an optional wire feeder. Check the spec sheet for the exact output range and recommended wire feeder compatibility.
Yes. Lincoln Electric engine-driven welders in this class include AC generator power — typically 120V and 240V auxiliary power outlets — making them ideal for jobsite use where power tools, lights, or other equipment need to run alongside welding operations. Refer to the spec sheet for exact generator wattage.
Lincoln engine drives in this class are available with Kohler, Kubota, or Perkins diesel/gasoline engines depending on the specific model variant. The engine brand and displacement is listed on the product label and in the owner's manual. Contact WeldingMart if you need to confirm the exact engine for a specific unit.
Duty cycle varies by amperage setting. At maximum rated output the duty cycle is typically 100% — engine drives are designed for continuous, all-day operation in demanding field environments. Refer to the spec sheet for the duty cycle curve at specific amperage levels.

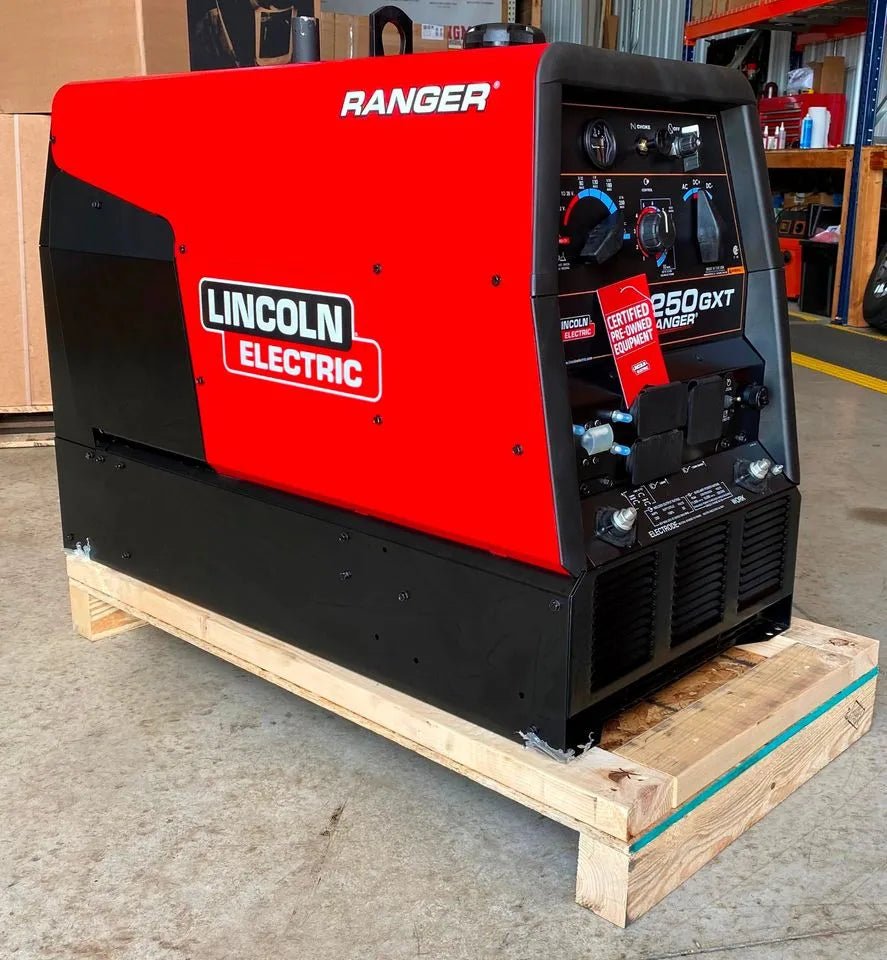

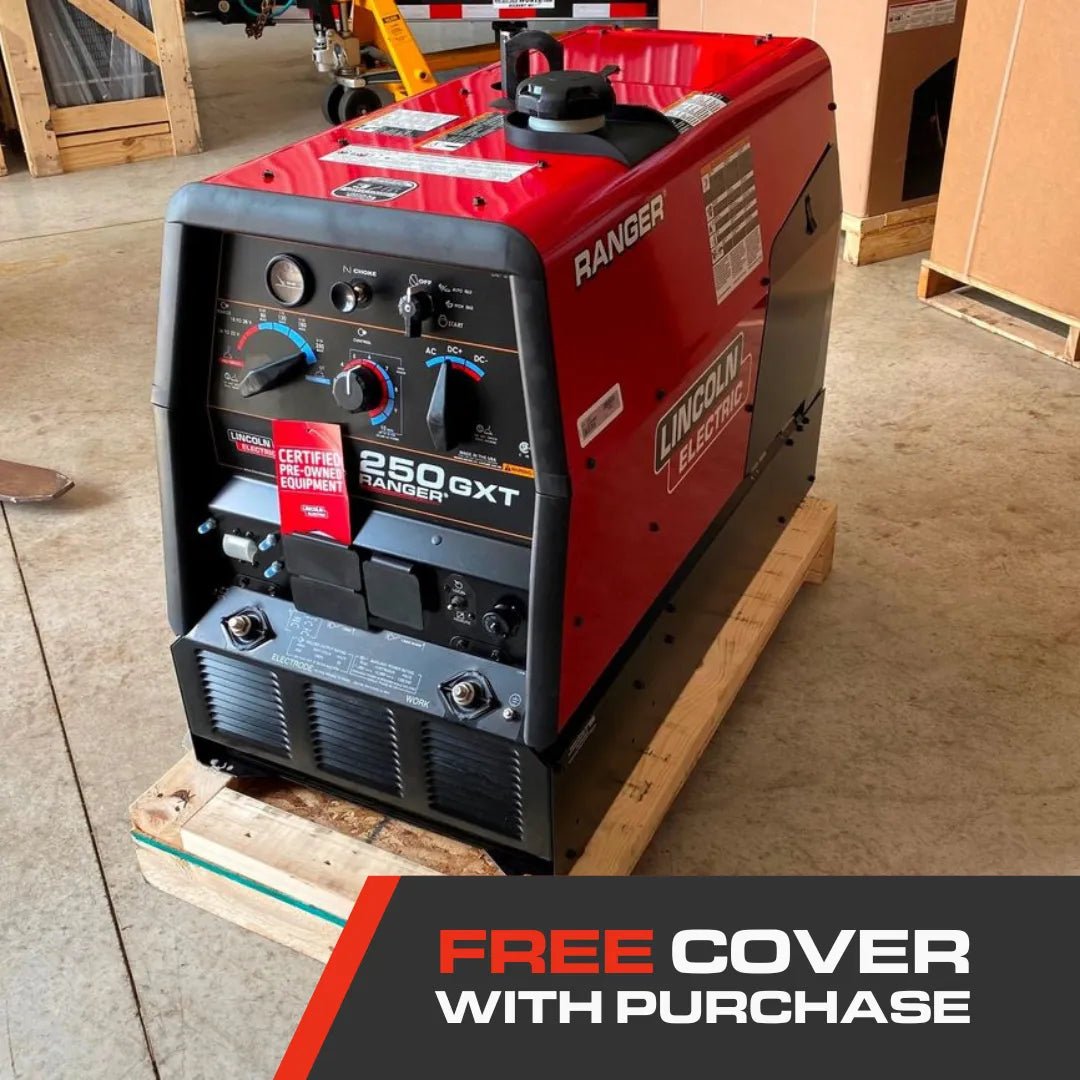

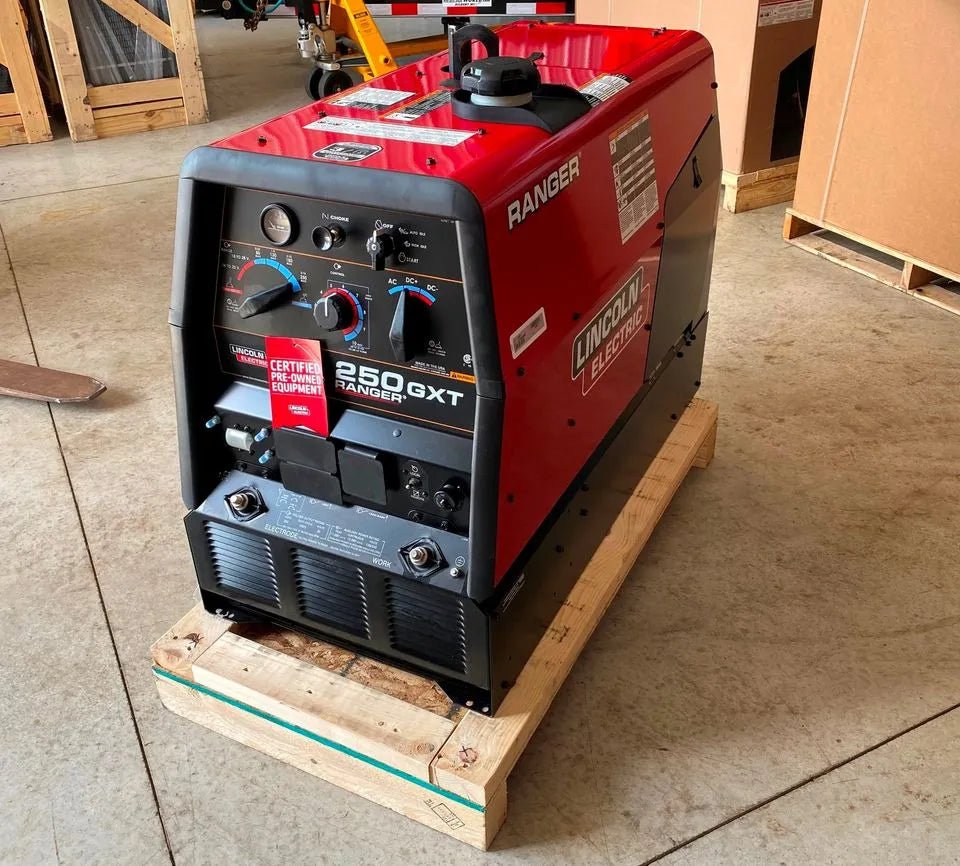

Yes — this is a factory demo or low-hour unit directly from Lincoln Electric. Units may show light cosmetic marks from display use but are mechanically sound. Each unit includes any applicable remaining Lincoln Electric warranty. Contact WeldingMart for warranty status on the specific unit number.
Factory demo engine drives typically include the base machine and standard accessories as specified by Lincoln Electric. Consumables (electrodes, gas cylinders) are not included. See the product listing details or contact WeldingMart to confirm what is included with your specific unit.
