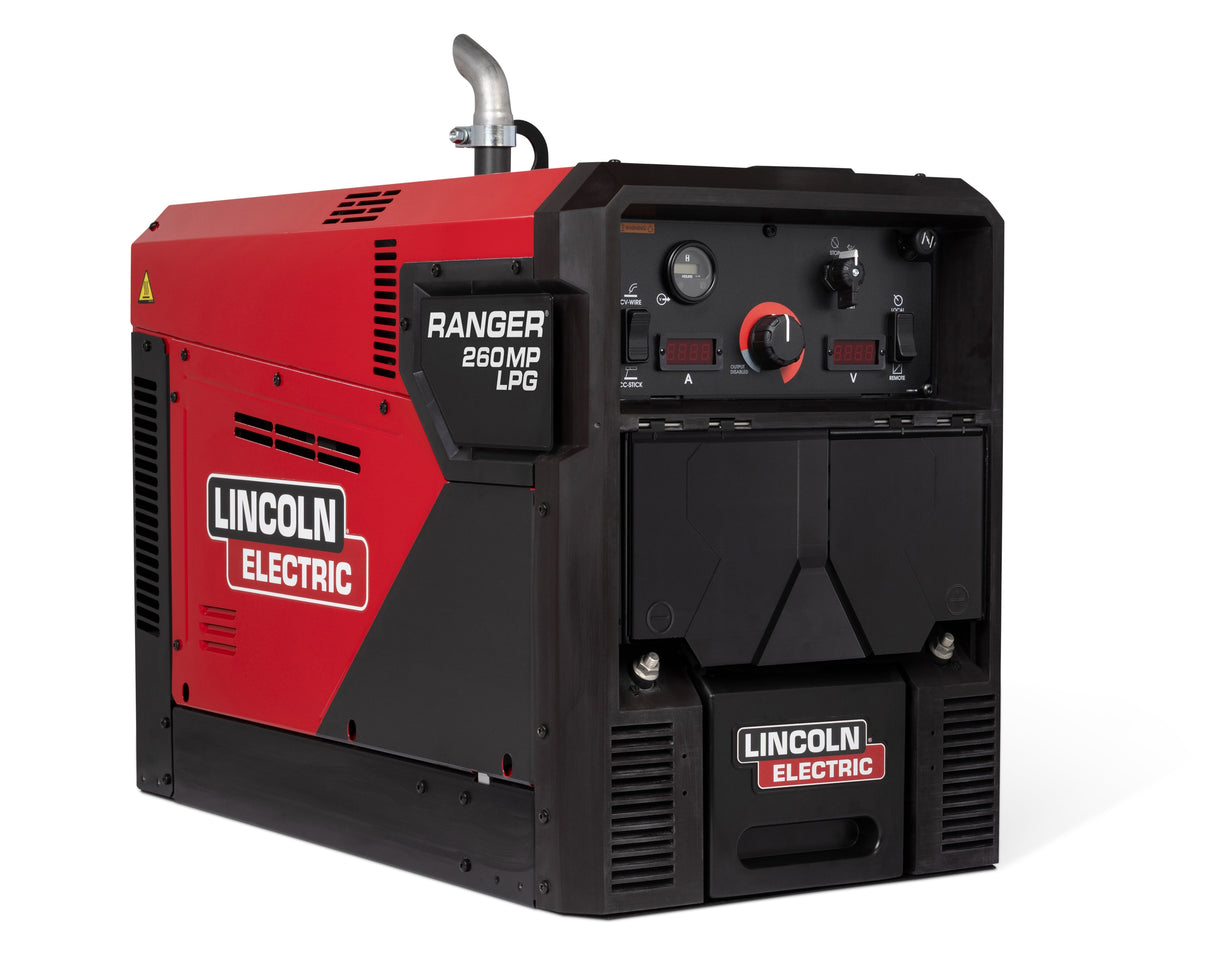

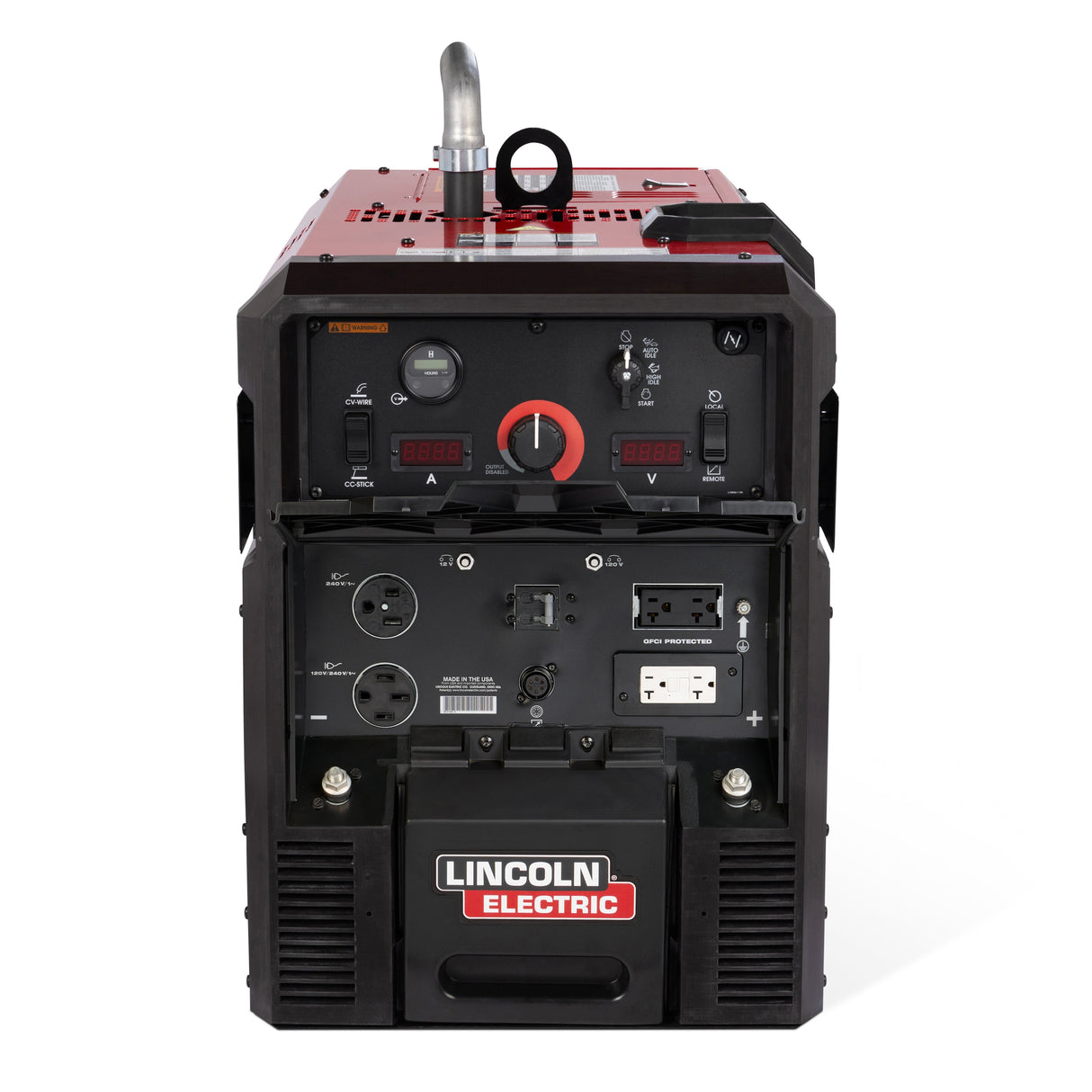

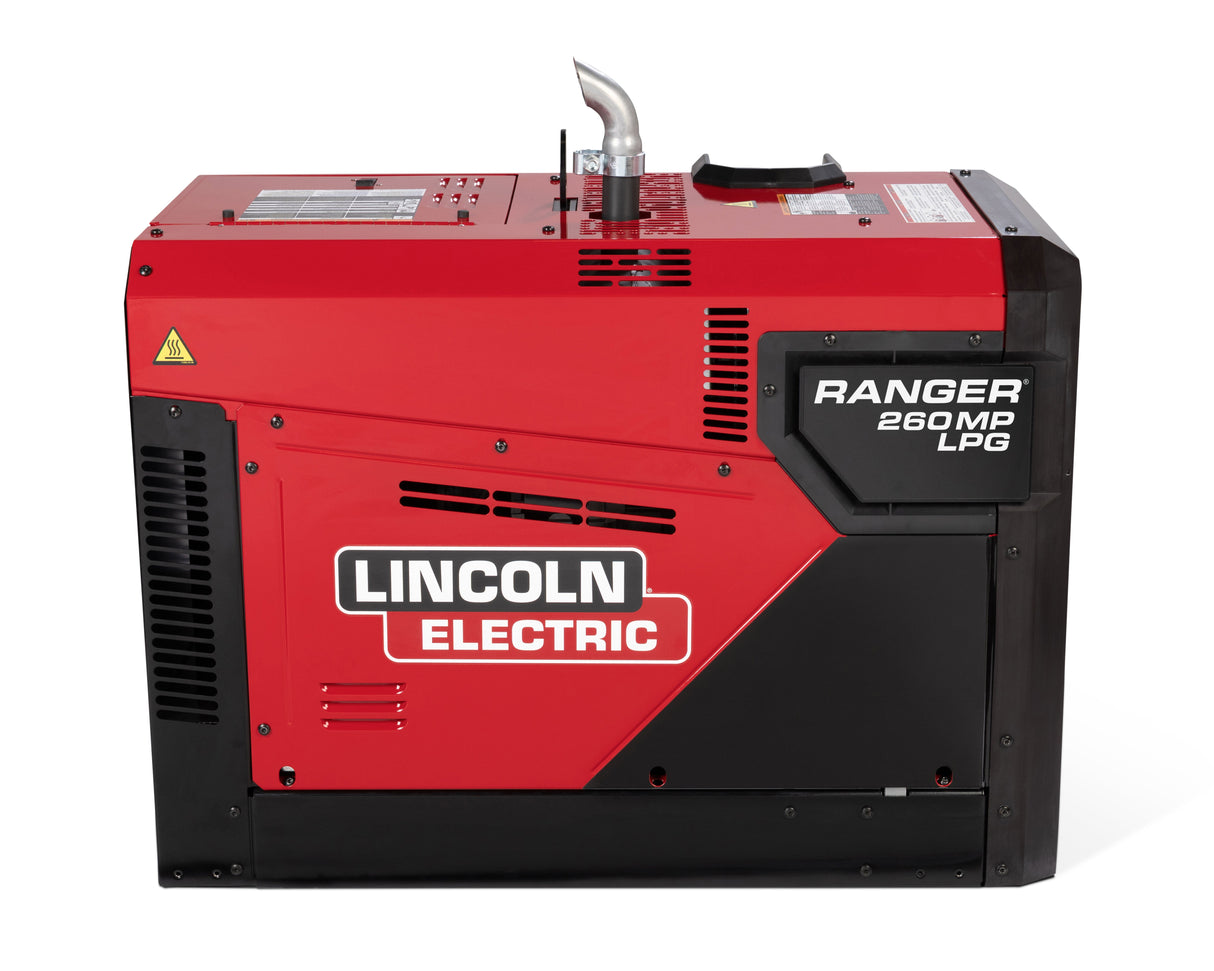

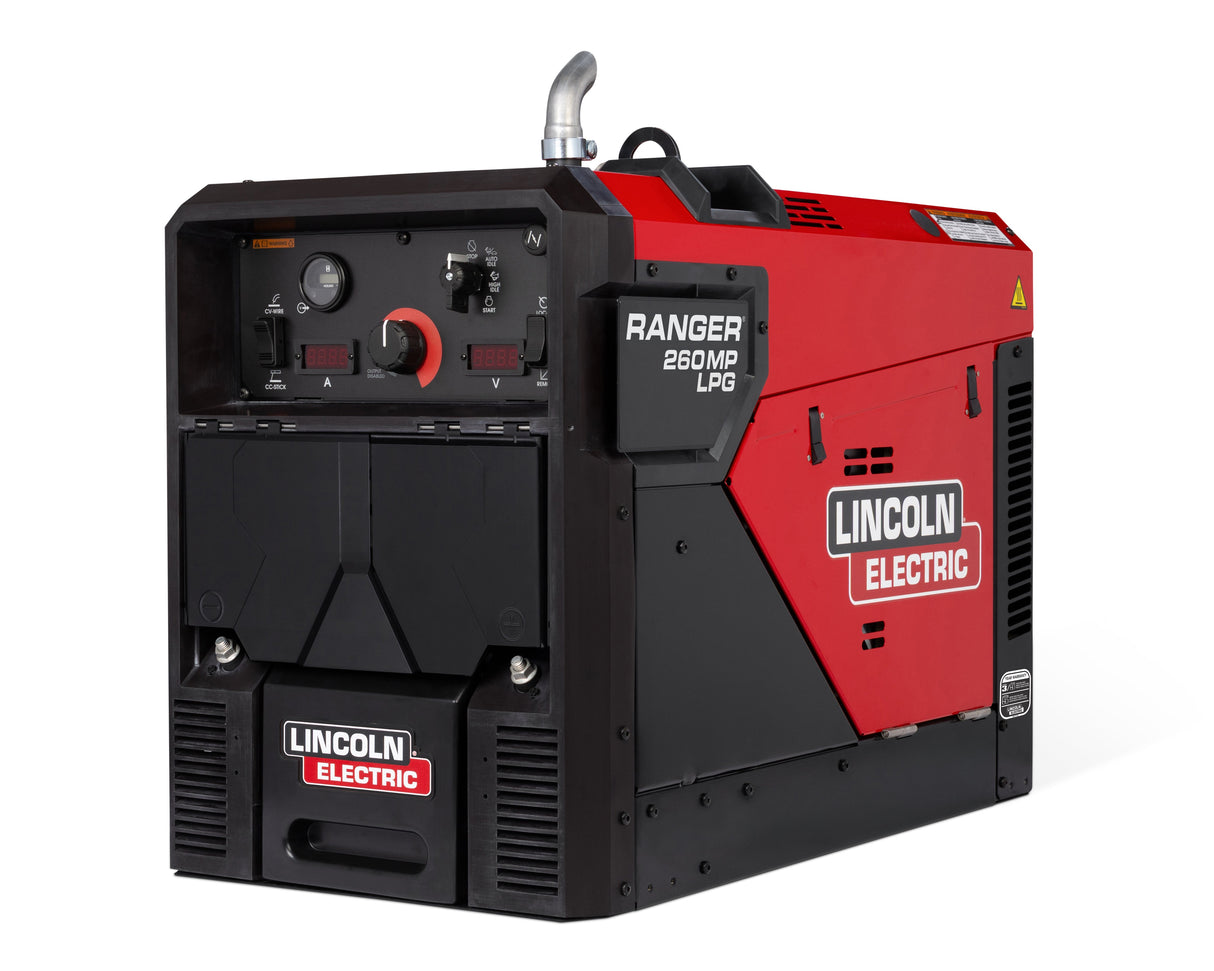

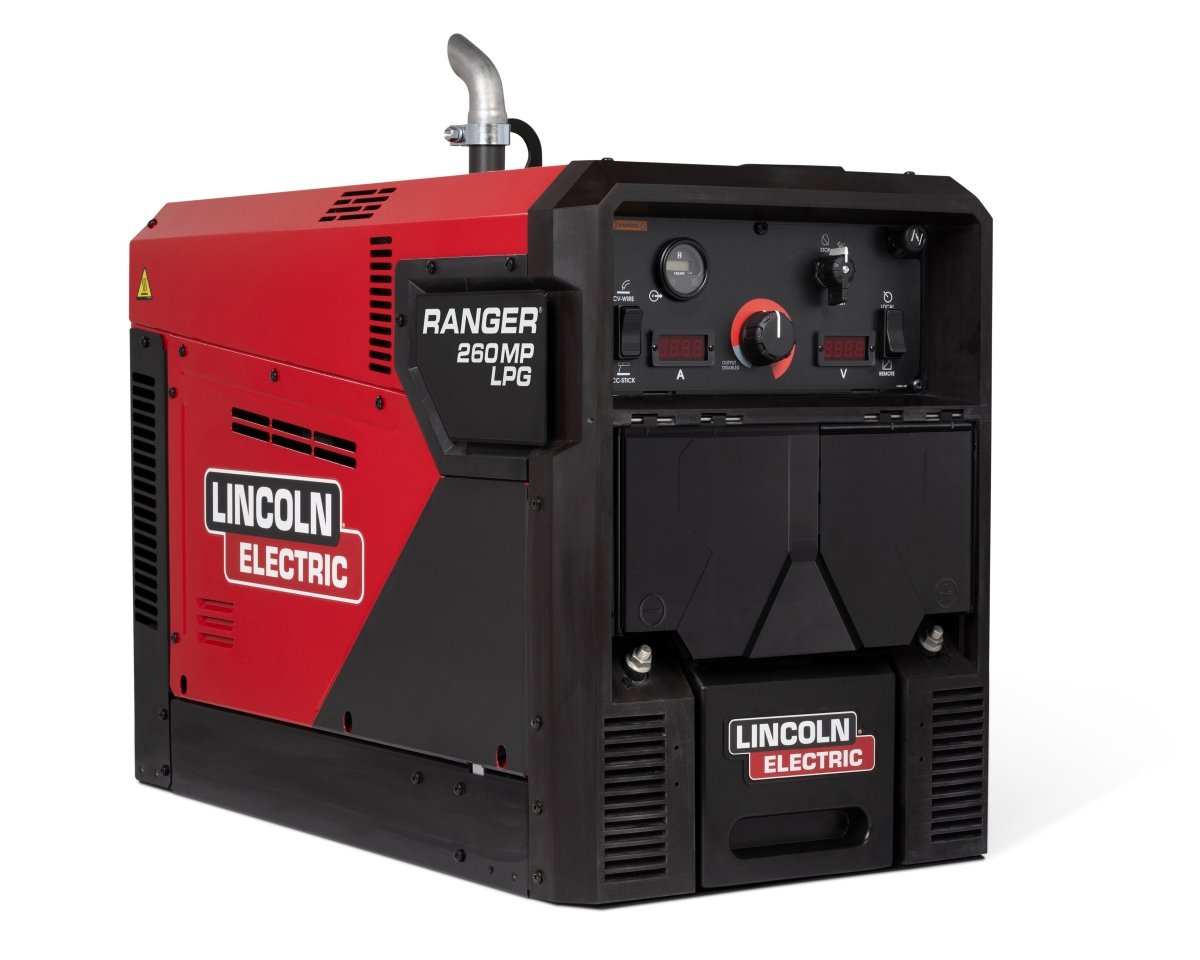

The Lincoln Ranger 260MP LPG K5939-1 combines multi-process welding and generator power for restricted or specialized jobsites where gasoline or diesel may not be acceptable. Lincoln lists one-knob control, digital amps/volts meters, auto-idle, and GFCI-protected receptacles.
| Welding output | 231A/29.2V CC/Stick and 253A/26.7V CV/Wire at 100% IEC rating; 260A/26V non-IEC |
|---|---|
| Output range | 35–260A CC; 15–30V CV; 85VDC maximum OCV |
| Generator output | 10,000W peak; 9,500W continuous; 120/240V AC, single phase |
| Engine | Rehlko CH730 LP, 21.5 hp, 725 cc |
| Fuel / controls | LPG; manual choke; carburetor; 2,500 RPM idle and 3,600 RPM high idle |
| Dimensions | 26.4 × 20.0 × 36.4 in; 33.1 in to top of exhaust pipe |
| Net weight | 424 lb (193 kg) |
| Battery | 12V Group 26, 500 CCA |
Manufacturer source: Lincoln Electric product literature for K5939-1.
- Restricted or specialized jobsites that specify liquefied petroleum gas
- Field Stick and compatible CV wire-welding work within the published ranges
- Jobs that need 120/240V AC generator power alongside an engine-driven welder
Order by the exact product number K5939-1 and confirm the LPG configuration. Match the published output range and generator rating to the job, then confirm required welding leads, wire-feeding equipment, fuel-system components, and other accessories before checkout. No accessory is represented as included unless the live offer explicitly says so.
Browse Lincoln Ranger engine-driven welders, compare the full engine-driven welders and welder generators, or read the engine-driven welder buyer's guide.
K5939-1 is the LPG version. Confirm that the jobsite and fuel setup are compatible with Lincoln's LPG configuration before ordering.
Lincoln publishes 10,000 watts peak and 9,500 watts continuous at 120/240V AC, single phase.
The 100% IEC ratings are 231A/29.2V for CC/Stick and 253A/26.7V for CV/Wire. Lincoln also publishes a 260A/26V non-IEC rating.
K5939-1 is the 260MP LPG model with a 35–260A CC range. K5940-1 is the 300MP LPG model with a 35–300A CC range.
Confirm the exact K5939-1 product number, LPG requirements, generator load, welding process, and any compatible leads, wire feeder, or other accessories needed for the planned setup.
