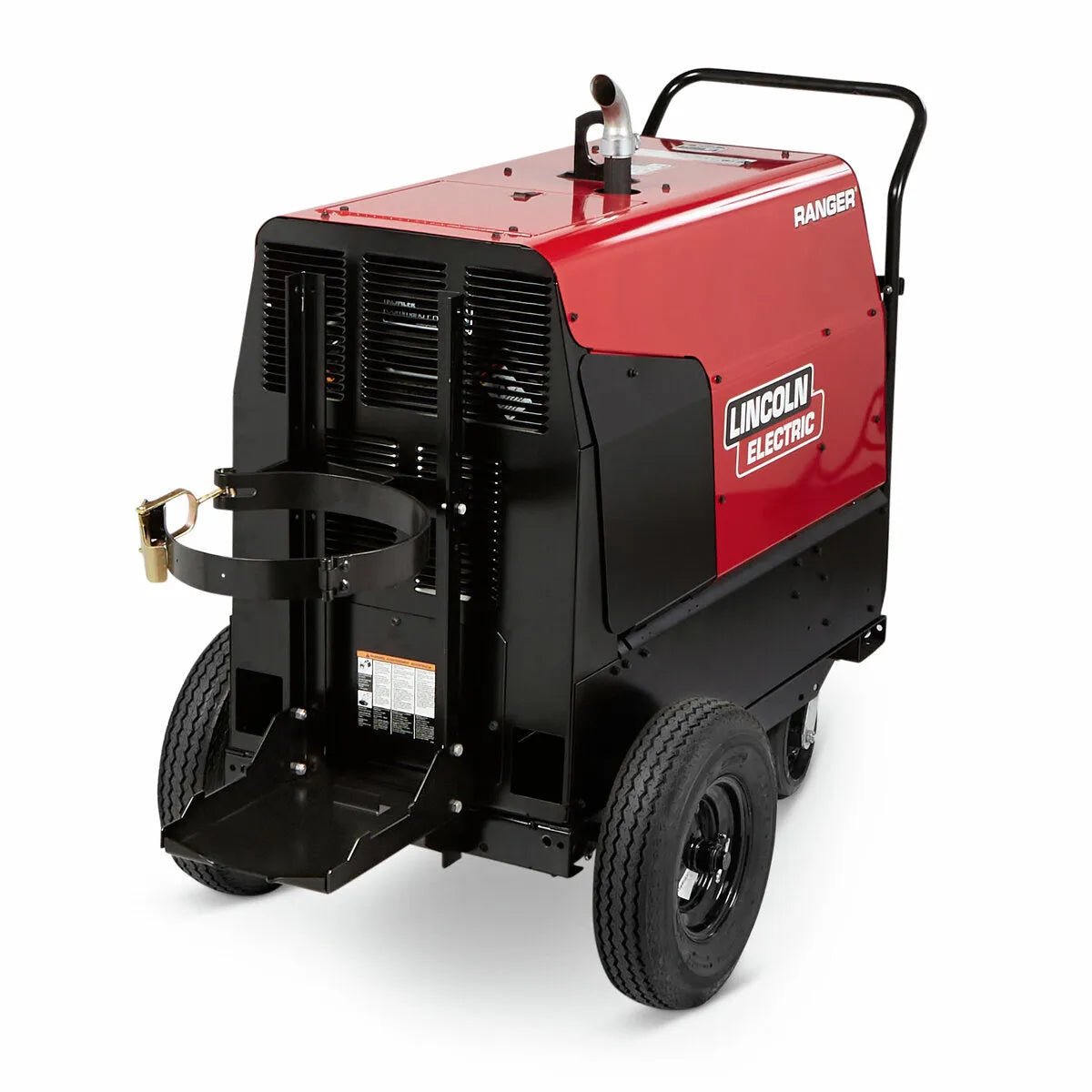

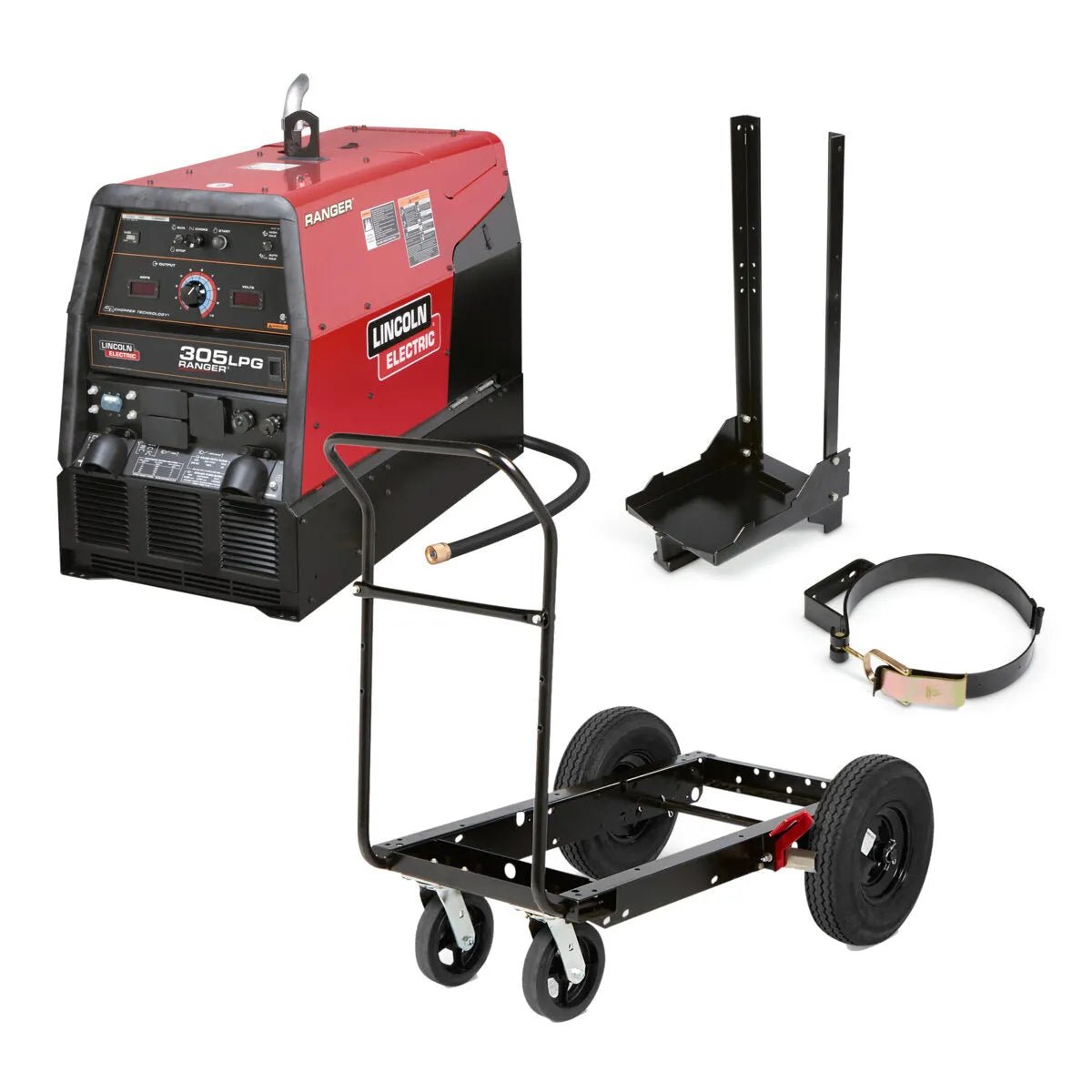

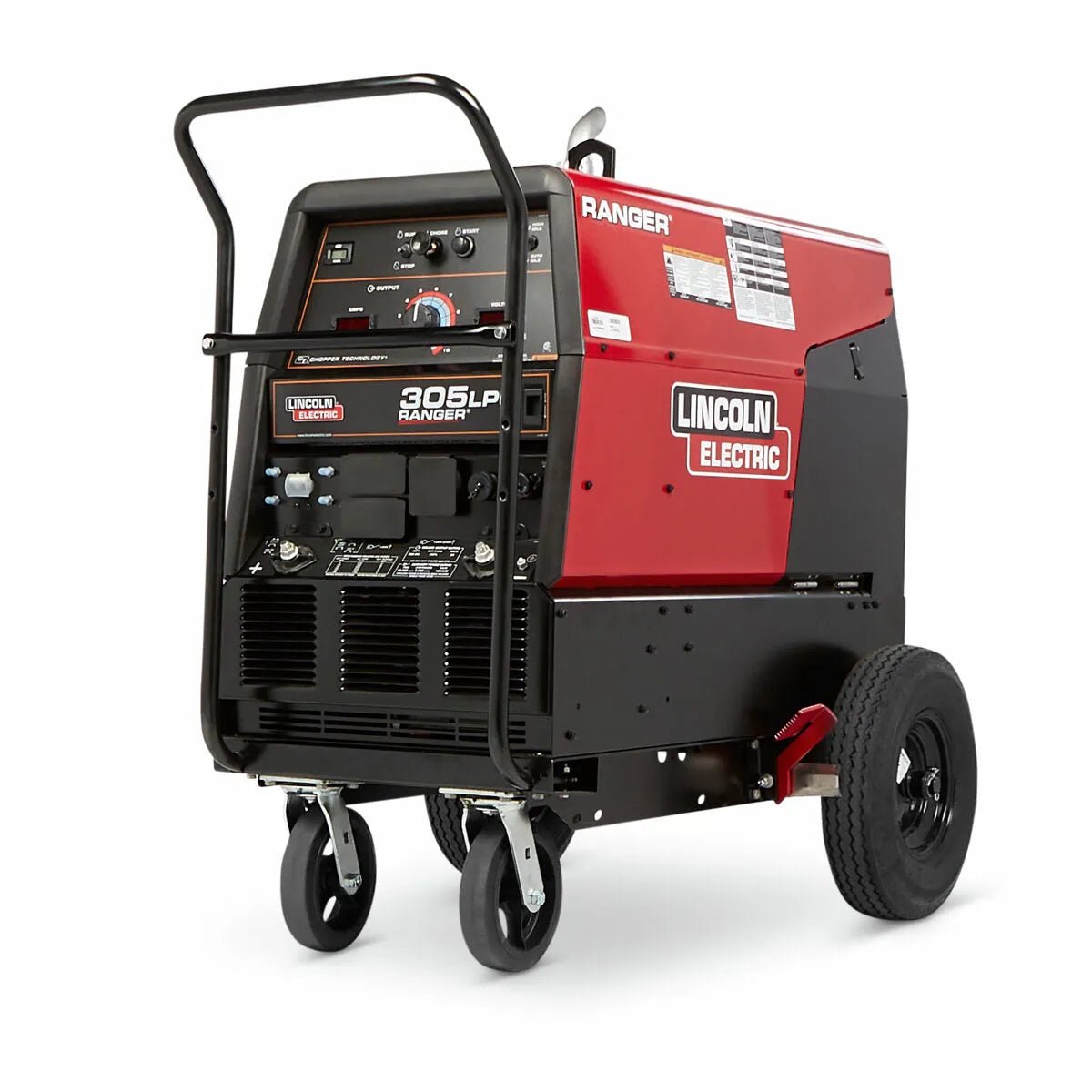

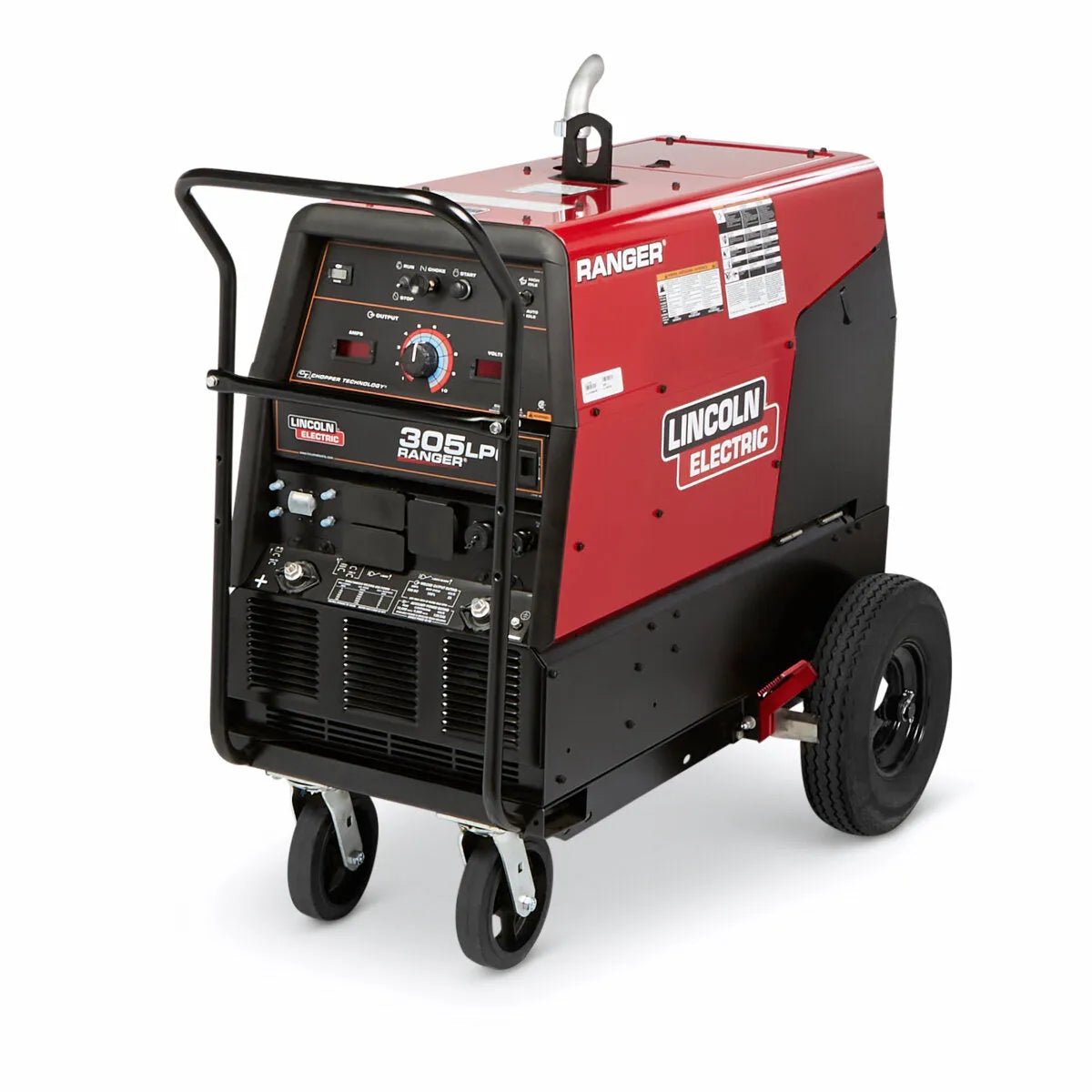

Lincoln Ranger 305 LPG Engine Driven Welder Kohler One-Pak - K3430-2

Lincoln Ranger 305 LPG Engine Driven Welder Kohler One-Pak - K3430-2

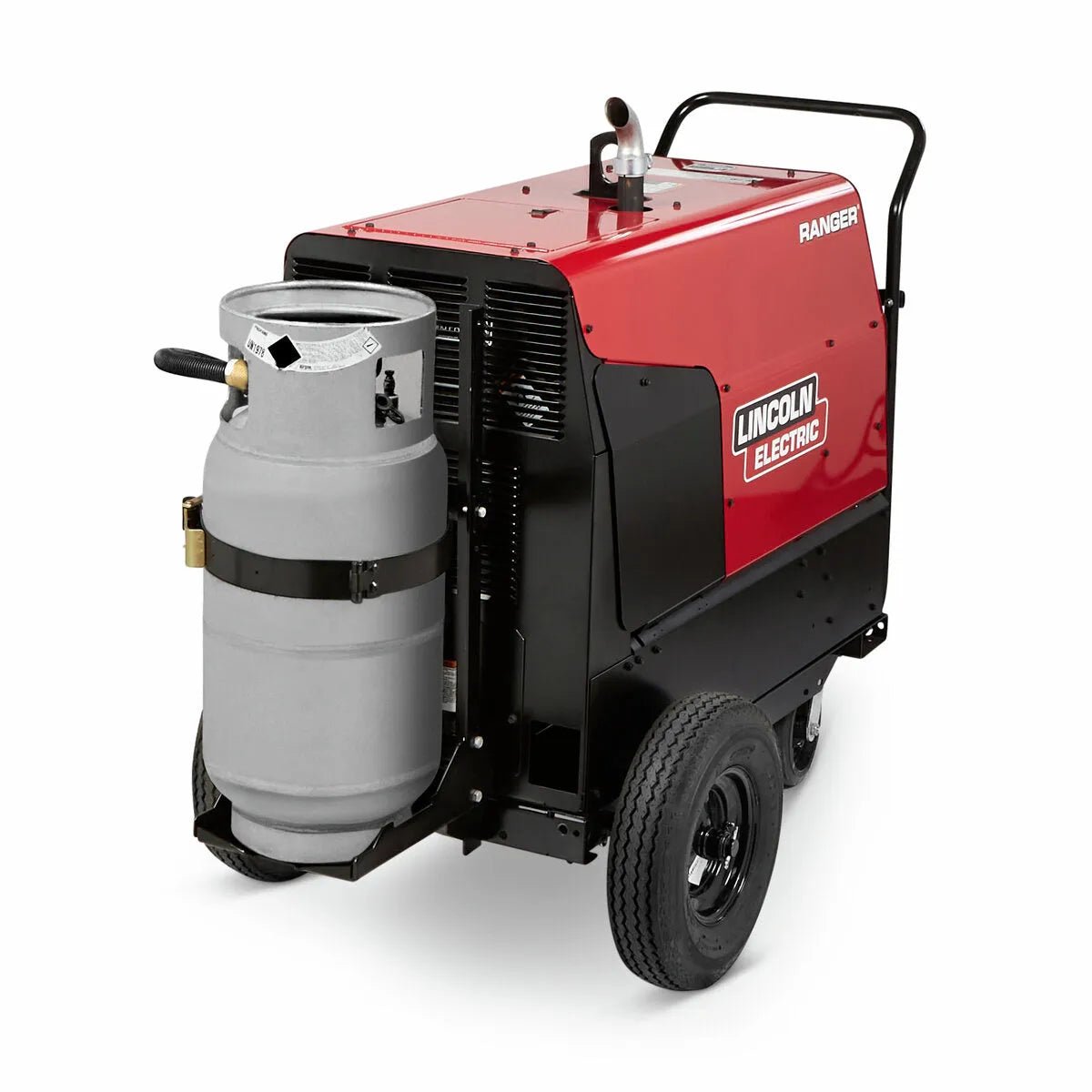

The Lincoln Ranger 305 LPG (K3430-2) delivers exceptional multi-process welding performance with environmentally-friendly propane power, making it the premier solution for indoor applications, emission-restricted zones, and environmentally sensitive areas where traditional gasoline and diesel engines are prohibited. This specialized engine-driven welder features a complete ready-to-use package with an integrated liquid propane gas supply hose and coupler for seamless connection to the liquid draw outlet of standard LP-gas cylinders, eliminating the need for additional components or complex setup procedures. Powered by a robust 25 HP Kohler Command OHV LPG engine, this versatile machine delivers consistent, reliable performance for demanding applications in construction, maintenance, fabrication, and field erection projects while producing significantly lower emissions than conventional fuel alternatives.

Engineered with Lincoln's advanced Chopper Technology, the Ranger 305 LPG provides superior arc characteristics across all welding processes, ensuring easy starts, smooth arc stability, reduced spatter, and exceptional bead appearance. This versatile multi-process welder excels in stick welding, downhill pipe applications, TIG welding, and wire-feed processes including MIG and flux-cored welding with both self-shielded and gas-shielded wires up to 5/64 inch diameter. Distinguished as the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding, this machine delivers industrial-grade performance with the precision of digital weld meters for accurate amperage and voltage monitoring, allowing operators to precisely pre-set procedures and continuously verify actual welding output parameters for consistent, high-quality results in critical applications.

Beyond its exceptional welding capabilities, the Ranger 305 LPG functions as a powerful 10,000-watt peak (9,000-watt continuous) single-phase AC generator, providing ample power for job site tools, lights, plasma cutters, or even additional Lincoln Electric Invertec inverter welders for expanded process capabilities. The stable 120V/240V generator output remains constant regardless of welding settings, ensuring reliable auxiliary power for all connected devices. With a compact footprint measuring 30 in x 21.5 in x 42.3 in and weighing just 604 pounds, this portable powerhouse combines industrial-grade performance with practical mobility for diverse applications. Built to Lincoln Electric's renowned standards for durability with welding and AC generator outputs rated at 104°F (40°C), and backed by a comprehensive 3-year warranty, the Ranger 305 LPG One-Pak represents the ideal solution for professionals requiring powerful, reliable welding and auxiliary power in environments where emissions must be minimized without compromising performance or versatility.

Key Features

• Multi-Process Welding - Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas). It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding.
• Digital Weld Meters - Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
• Superior Arc Performance - Lincoln Electric Chopper Technology provides easy starts, a smooth arc, low spatter and excellent bead appearance.
• 10,000 Watts Peak Single-Phase AC Generator Power - 10,000 watts peak for motor starting. 9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec inverter welder.
• 25 HP Kohler LPG Engine - LPG (Liquid Propane Gas) engine has plenty of horsepower for welding and power generation in environments where gasoline and diesel emissions are not acceptable.

Specifications
