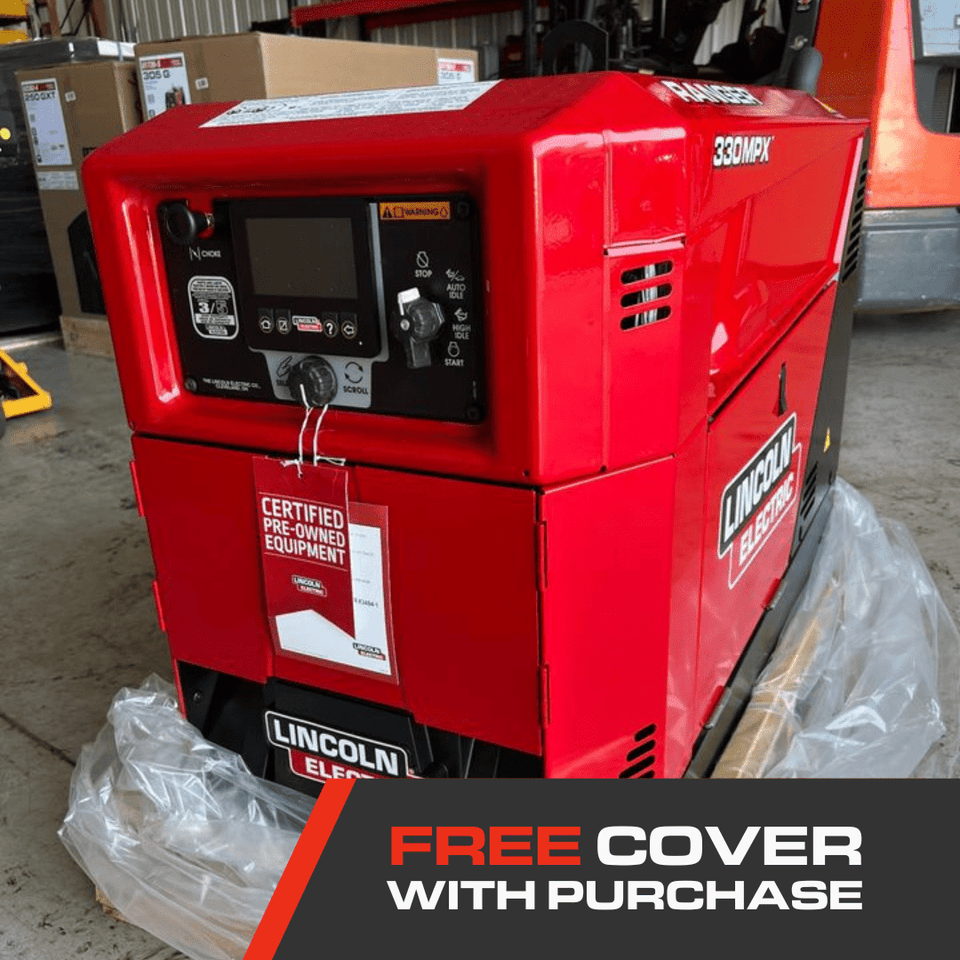

Specifications sourced from Lincoln Electric's current production Lincoln Ranger 330MPX. Factory Demo units are certified to identical factory performance standards.
| Welding Output | 330A |
| IEC Rating | 330A/28V at 100% duty cycle @ 104°F (40°C) |
| Duty Cycle | 100% @ 104°F (40°C) |
| Welding Processes | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Gouging (CAC-A) up to 3/16 in electrode |
| Auxiliary Power Output | 10,000W Continuous, 120/240V, 60 Hz |
| Receptacles | NEMA 5-20R, NEMA 14-50R |
| Engine | Kohler 25 HP, Air-Cooled Gasoline |
| Fuel Type | Gasoline |
| Fuel Tank | 12 US gal |
| Net Weight | 446 lbs — 25% lighter than competitive units |
| Dimensions (H × W × D) | 20% smaller footprint than competitive units |
| Sound Level | Up to 60% quieter than competitive machines in class |
| Key Technologies | Ready.Set.Weld® digital interface, ArcFX® Technology, CrossLinc® Technology for remote parameter control |
| Warranty | 3 Years Parts and Labor |
View the full spec sheet on the new-version listing: View new Lincoln Ranger 330MPX →
The Lincoln Ranger 330MPX is designed for operators who can't afford downtime and don't have access to grid power. Its combination of 330A welding output, 100% @ 104°F (40°C) duty cycle, and 10,000W Continuous, 120/240V, 60 Hz generator power makes it the right tool for:
- Pipeline & Oil/Gas Construction: Long-haul pipeline tie-ins, field root passes, and repair welds where AC power infrastructure doesn't exist. The Ranger 330MPX's gasoline engine and full-output duty cycle handle extended pipeline days without interruption.
- Commercial Construction & Structural Steel: Ironwork, structural steel erection, beam connections, and general site welding. Having 10,000W Continuous, 120/240V, 60 Hz of generator power on board eliminates the need for a separate generator — one machine handles both the torch and the jobsite power needs.
- Rental Fleet Operations: The Ranger 330MPX's durability, enclosed case design, and straightforward maintenance schedule make it a prime rental-fleet asset. A factory demo unit enters the fleet at 18% lower acquisition cost, improving ROI from day one.
- Service Truck & Mobile Welding: The machine's self-contained design is purpose-built for service truck mounting. Mobile maintenance contractors, utility operators, and field service technicians use the Ranger 330MPX to handle emergency repairs, infrastructure maintenance, and scheduled field work without returning to a shop.
- Agriculture & Ranch Maintenance: Equipment repair, implement fabrication, bin and grain elevator work, and infrastructure maintenance on large agricultural operations where permanent shop power is miles away from the work.
- Emergency Power Generation: The 10,000W Continuous, 120/240V, 60 Hz auxiliary output can power critical loads during outages, making the Ranger 330MPX a dual-use asset for operations that need both welding capability and backup power.
Every factory demo Lincoln Ranger 330MPX shipped by WeldingMart includes:
- Operator's manual, welding leads, standard accessory package
- WeldingMart factory demo prep certification documentation
- Lincoln Electric warranty registration (from your purchase date)
Optional accessories — spark arrestor kits, remote control units, wire feeders, extended warranty packages — are available separately. Contact WeldingMart to confirm the exact configuration of the specific unit you're purchasing.
The factory demo Lincoln Ranger 330MPX carries 3 Years Parts and Labor — the same warranty as a new unit. WeldingMart registers the warranty in your name from your purchase date. Lincoln Electric's standard warranty terms apply. The engine is warranted separately by Kohler per their standard terms.
If the machine doesn't perform to the certified spec documented at shipment, contact WeldingMart immediately. We stand behind every factory demo unit we ship. Our team will work with you on evaluation, service, or return resolution — we don't sell a machine we wouldn't stake our reputation on.
Factory Demo inventory fluctuates. This unit is listed because it passed certification — when it sells, it's gone until another unit completes factory demo prep (typically 30–60 days). If you need a machine now and don't want to wait on factory demo availability, the new Lincoln Ranger 330MPX ships immediately: View new Lincoln Ranger 330MPX →
Is a factory demo Lincoln Ranger 330MPX worth buying?
Yes. WeldingMart's factory demo Lincoln Ranger 330MPX is load-tested to Lincoln Electric factory specifications, carries the same 3 Years Parts and Labor warranty as a new unit, and is priced — saving you 18% versus the new retail price. For contractors, rental fleets, and service truck operators, the savings-to-performance ratio is hard to beat.
How much can I save on a factory demo Lincoln Ranger 330MPX vs buying new?
The factory demo Lincoln Ranger 330MPX is priced compared to new retail — that's approximately 18% savings, or roughly back in your pocket. The machine performs identically to new under load.
What warranty comes with WeldingMart's factory demo Lincoln Ranger 330MPX?
The 3 Years Parts and Labor. WeldingMart registers the warranty from your purchase date — not the original manufacture date — so you receive full Lincoln Electric warranty coverage from day one.
What does WeldingMart's factory demo prep process actually cover?
Every factory demo Lincoln Ranger 330MPX goes through: (1) Intake inspection and documentation with photos and serial tracking, (2) Full diagnostic under rated load to establish baseline vs factory spec, (3) Parts replacement — oil, oil filter, air filter, fuel filter, spark plugs or glow plugs, belts, hoses, and worn connectors replaced with Lincoln OEM-spec parts, (4) Load testing at 100% duty cycle for welding output and generator power verification, (5) Certification sign-off by a Lincoln-trained WeldingMart technician, and (6) Warranty registration from your purchase date.
What's the difference between a factory demo and a new Lincoln Ranger 330MPX?
The factory demo Ranger 330MPX performs identically to new — same 330A output, same 100% @ 104°F (40°C) duty cycle, same 3 Years Parts and Labor warranty. The differences: lower price (18% savings), possible minor cosmetic wear, and prior operational hours. Every functional system meets Lincoln Electric factory acceptance criteria before we list it.
Can a factory demo Lincoln Ranger 330MPX handle professional pipeline or construction work?
Absolutely. The Lincoln Ranger 330MPX is rated for Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Gouging (CAC-A) up to 3/16 in electrode at 100% @ 104°F (40°C) — the same spec as new. Pipeline contractors, construction crews, and rental fleets routinely run factory demo engine-driven welders because the performance is identical to new and the economics are significantly better.
Does the factory demo Lincoln Ranger 330MPX come with accessories?
Yes: Operator's manual, welding leads, standard accessory package. Contact WeldingMart to confirm the exact accessory configuration on the specific unit before purchase.
