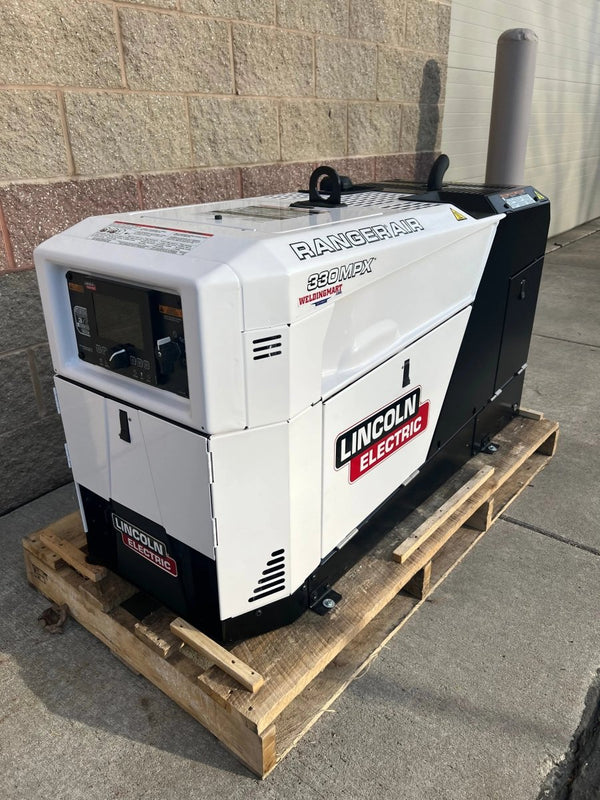

The Lincoln Ranger Air 330MPX - U5239-1 is an innovative multi-function engine drive system engineered to deliver exceptional versatility and performance for operators facing unpredictable daily challenges. This revolutionary 5-in-1 solution integrates an air compressor, generator, battery jump assist, battery charging capability, and multi-process welder into a single compact unit, dramatically increasing your operational capabilities while reducing equipment needs. Featuring industry-leading performance across air power delivery, clean auxiliary power generation, and superior arc characteristics, this powerhouse system redefines what's possible from a mobile power solution.
Compare to New K5239-1 - Full 3 Year Factory Warranty
The Ranger Air 330MPX incorporates advanced digital interface technology that streamlines setup procedures and operational control, allowing for rapid deployment in demanding field conditions. Its integrated Ready. Set. Weld. and Chopper Technology deliver exceptional welding performance across various processes, while the intelligent maintenance alert system proactively notifies operators when service is required, preventing unexpected downtime. The revolutionary variable engine speed control and auto stop/start functionality work together to significantly reduce fuel consumption and maintenance expenses, providing substantial operational cost savings over traditional engine drives.
Designed with practical field considerations at its core, the Ranger Air 330MPX features a space-efficient footprint that maximizes available payload capacity on service vehicles, allowing for additional tools and equipment transport. This comprehensive mobile power solution represents a transformative approach for contractors, maintenance teams, and field service operators who require multiple capabilities without the logistical challenges and expenses of transporting and maintaining separate machines for each function.
- Comprehensive 5-in-1 functionality combining air compressor, generator, battery services, and welding capabilities.
- Industry-leading performance metrics across air delivery, power generation, and welding processes.
- Intuitive digital user interface enabling rapid setup and straightforward operational control.
- Integrated Ready. Set. Weld. and Chopper Technology ensuring superior welding performance.
- Intelligent maintenance alert system preventing unexpected downtime through proactive notifications.
- Revolutionary variable engine speed technology substantially reducing fuel consumption.
- Automatic stop/start functionality minimizing unnecessary runtime and associated maintenance costs.
- Compact design architecture maximizing service vehicle payload capacity for additional equipment.
- Versatile operational capabilities allowing teams to address diverse field challenges with a single unit.
| Dimensions (H x W x D) | 26 in x 20 in x 48 in (660 mm x 508 mm x 1219 mm) |
| Net Weight | 565 lbs (256 kg) |
| Machines Processes | Stick (SMAW) Gouging (CAC-A) Flux-Cored (FCAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| IEC Rating | 292A/31.7V/100% @ 104°F (40°C) |
| Output Range by Mode | CC Stick: 35 - 330Amps, Touch Start TIG: 25 - 330Amps, CV Wire: 16 - 27 Volts |
| Data Technologies | J1939 CAN |
| Machines Communication Technology | CrossLinc |
| Single Phase Auxiliary Output | 10,000 Watts Continuous, 120/240V |
| Auxiliary Output Frequency | 60 Hz |
| Receptacle Types | NEMA 5-20R NEMA 6-50R NEMA 14-50R |
| Engine Brand & Model | Kohler OHV Command Pro EFI Electronic Throttle Body ECH749 |
| Engine Description | 2 Cylinder Air-Cooled Gasoline Engine |
| Engine Horsepower | 26.5 |
| Engine Block Size & Displacement | 45 cu. in. (747 cc) |
| High Idle Operating Speed @ Rated Output | 3600 |
| Fuel Tank Size (US gal.) | 11 |
| Fuel Tank Size (L) | 41.6 |
| Oil Capacity (qts.) | 2.0 |
| Oil Capacity (L) | 1.9 |
| Air Compressor Brand/Model | Vanair |
| Air Compressor Description | Rotary Screw |
| Air Compressor Output | 40 CFM @ 150 PSI |
| Air Compressor Max System Pressure | 225 PSI |
| Air Compressor Protections | Safety Relief Valve High Temp Shutdown |
| Air Compressor Oil Capacity (US gal.) | 0.75 |
| Air Compressor Oil Capacity (L) | 2.84 |
| Typical Application | Construction Construction & Field Erection General Fabrication Maintenance & Repair Repair Welding Structural Fabrication Structural Welding |
| Warranty | 3 Years Parts and Labor - Engine warranted separately by engine manufacturer |
