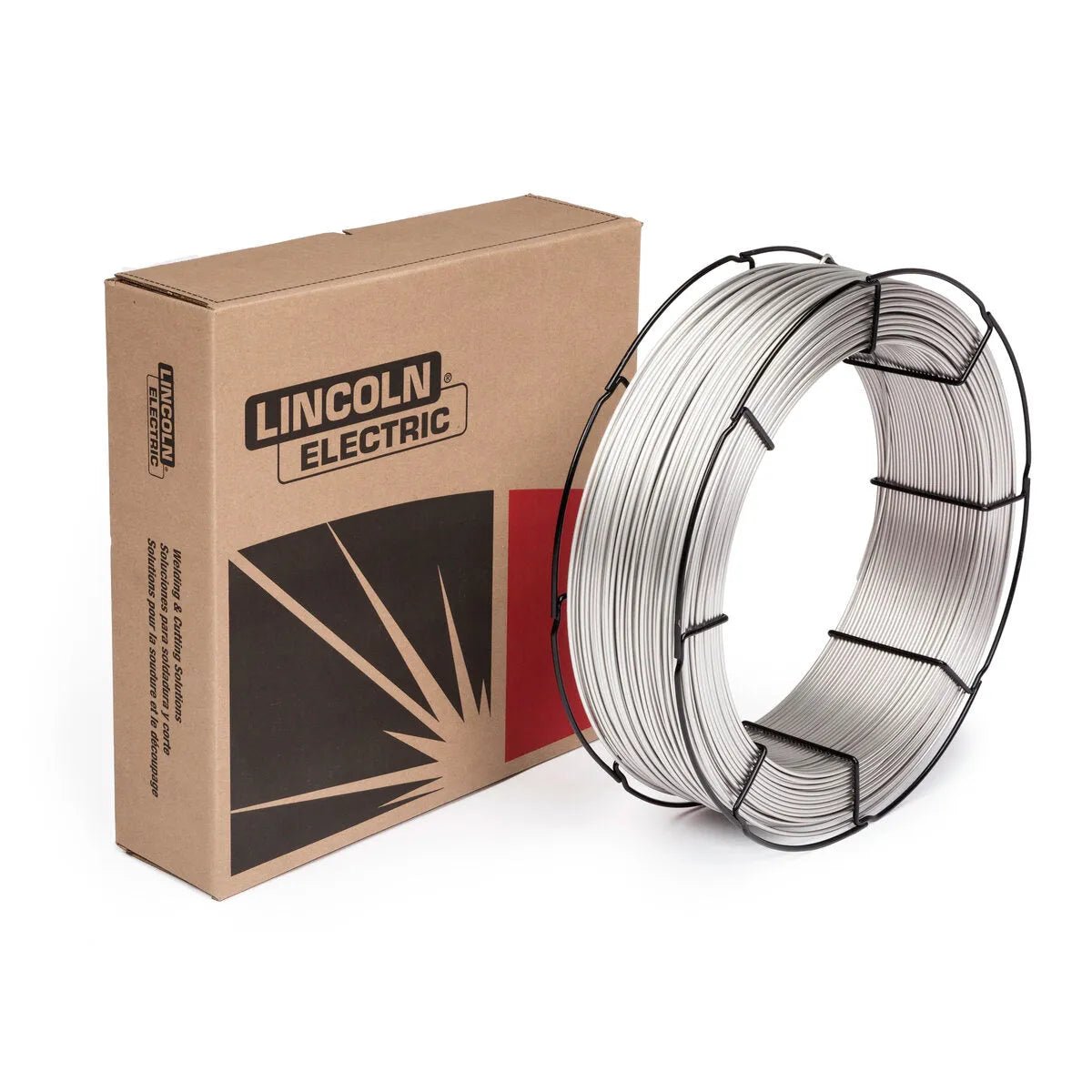

Lincoln Electric Submerged Arc Wire 3/32" – 55 lb

Q: What process is the Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726 designed for?

The Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726 is used in Submerged Arc Welding (SAW), a high-deposition welding process where the arc is shielded by a blanket of granular flux rather than shielding gas. SAW is used primarily in the flat and horizontal positions for welding structural plate, pressure vessels, pipelines, ship hulls, and heavy fabrication. It produces deep penetration, high deposition rates, and excellent weld quality with minimal spatter.

Q: What is the AWS classification of the Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726?

The Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726 carries AWS ERNiCrMo-4 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Q: What diameter is the Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726 available in?

The Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726 is available in 3/32 diameter. SAW wire diameters range from 3/32 in (for narrow-groove and single-pass applications) to 1/4 in or larger (for heavy plate, multi-pass). Larger diameter wire allows higher amperage and deposition rates; smaller diameter wire permits more precise control of heat input for tighter bead geometry or narrower grooves.

Q: What spool or coil size is the Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726 available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726 to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: SA276093726

$2,551.93

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

TECHALLOY® 276 Submerged Arc Wire designed for use with low carbon, nickel-chromium-molybdenum filler metal used in LNG applications.

AWS / Classification: AWS ERNiCrMo-4

Overview

Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726

TECHALLOY® 276 is ideal for welding materials of similar composition due to high molybdenum content, this alloy offers excellent resistance to stress corrosion cracking, pitting and crevice corrosion. Can also be used for dissimilar welding between nickel base alloys and stainless steels for cladding operations.

Features

Used for welding materials of similar composition
Due to high molybdenum content, this alloy offers excellent resistance to stress corrosion cracking, pitting and crevice corrosion
Q2 Lot® - Certificate showing actual wire composition available online

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.14ERNiCrMo-4
CWB	CWB AWS A5.14ERNiCrMo-4
Classification	%C%Co%Cr%Cu%Fe%Mn%Mo%Ni%P%S%Si%V%W
ERNiCrMo-4 Requirement	0.02 max.2.5 max.14.5 - 16.50.50 max.4.0 - 7.01.0 max.15.0 - 17.0Remainder0.04 max.0.03 max.0.08 max.0.35 max.3.0 - 4.5
Typical Result	0.003 max.0.0 max.15.80.025.60.515.6580.003 max.0.003 max.0.030.00 max.3.7
Flux	DiameterPolarityVoltage, voltsApprox. Current, amps
Lincolnweld® P2007™	3/32" (2.4 mm)DC+28-30275-350
Lincolnweld® P2007™	1/8" (3.2 mm)DC+29-31350-450
LECO Diameter	3/32 in (2.4 mm)
LECO Package	55 lb Basket
Diameter (in)	3/32

Includes

(1) 55 lb Basket

Reviews

Q&A

Product Overview

Lincoln SA276093726 Techalloy 276 Submerged Arc SAW Welding Wire, 3/32 in, 55 lb Basket - SA276093726

Features

Used for welding materials of similar composition
Due to high molybdenum content, this alloy offers excellent resistance to stress corrosion cracking, pitting and crevice corrosion
Q2 Lot® - Certificate showing actual wire composition available online

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.14ERNiCrMo-4
CWB	CWB AWS A5.14ERNiCrMo-4
Classification	%C%Co%Cr%Cu%Fe%Mn%Mo%Ni%P%S%Si%V%W
ERNiCrMo-4 Requirement	0.02 max.2.5 max.14.5 - 16.50.50 max.4.0 - 7.01.0 max.15.0 - 17.0Remainder0.04 max.0.03 max.0.08 max.0.35 max.3.0 - 4.5
Typical Result	0.003 max.0.0 max.15.80.025.60.515.6580.003 max.0.003 max.0.030.00 max.3.7
Flux	DiameterPolarityVoltage, voltsApprox. Current, amps
Lincolnweld® P2007™	3/32" (2.4 mm)DC+28-30275-350
Lincolnweld® P2007™	1/8" (3.2 mm)DC+29-31350-450
LECO Diameter	3/32 in (2.4 mm)
LECO Package	55 lb Basket
Diameter (in)	3/32
