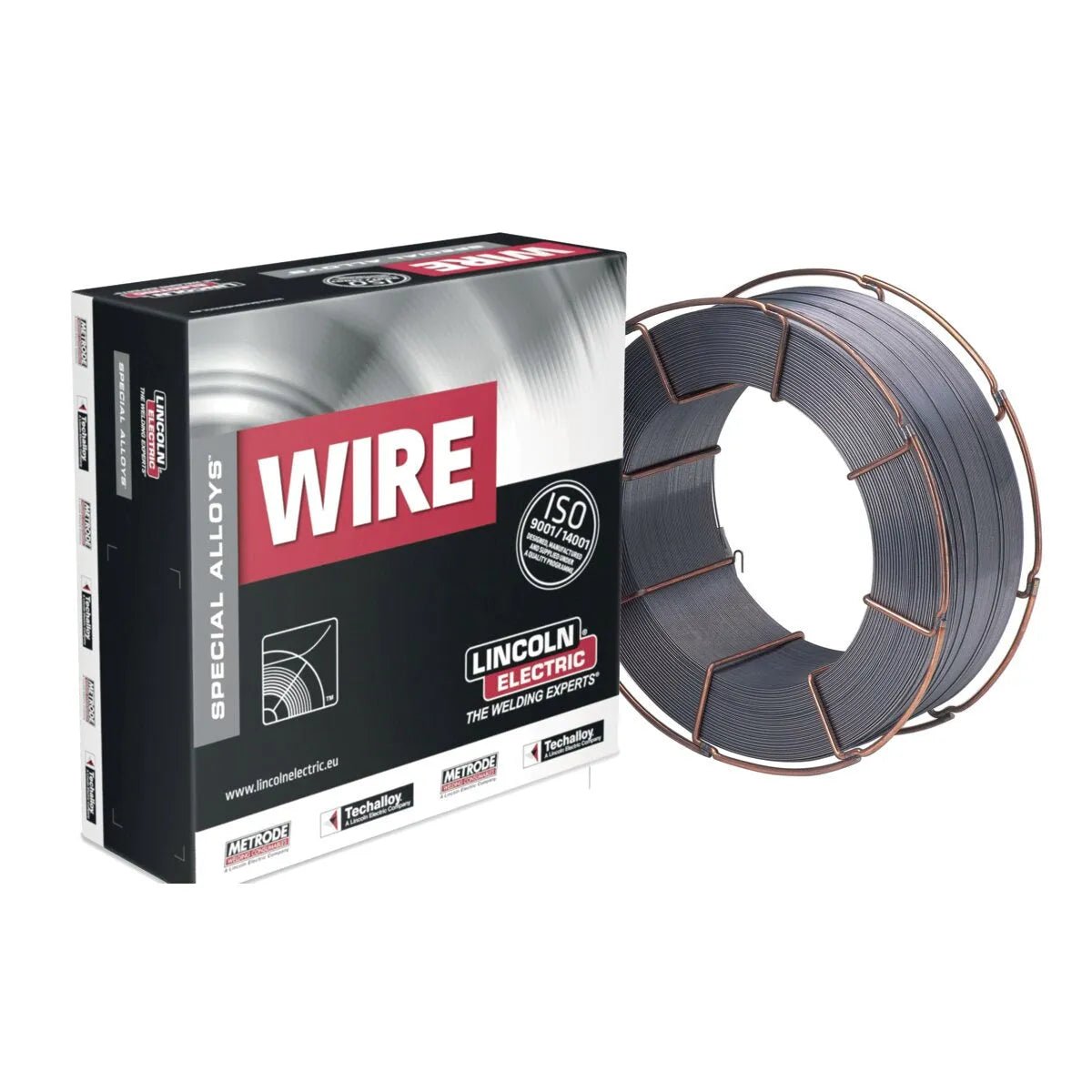

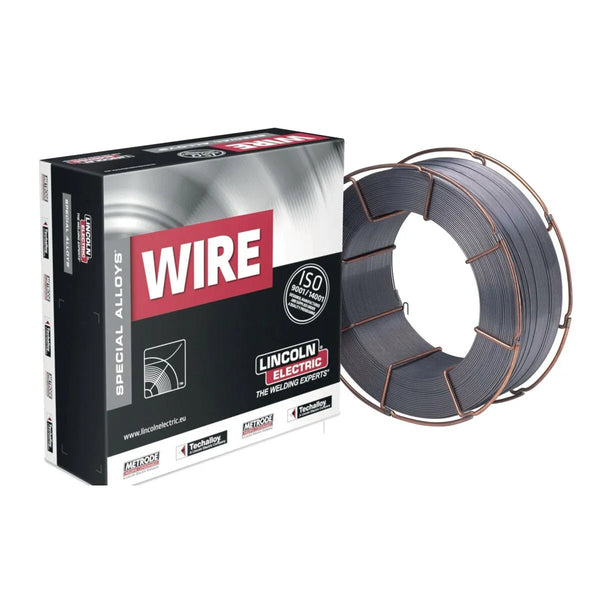

Lincoln Electric Flux-Core Wire – 15 kg

SKU: SCF91-12
$481.32 $537.15
Lincoln Elite Dealer
Free Shipping
Lowest Price
Supercore™ F91 (0.047 in, 33 lb spool) is a gas-shielded flux-cored wire that features a rutile flux system with an alloyed strip capable of producing low hydrogen weld and meets AWS E91T1-B91 C/M-H4.
AWS / Classification: AWS A5.29: E91T1-B91 C/M-H4, AWS A5.29M: E621T1-B91 C/M-H4, BS EN ISO 17634-B: T69T1-1C/M-9C1MV
Overview

Low Alloy, Low Hydrogen • AWS A5.29M E91T1-B3C/M-H4

Features
  • B3 alloyed steel: 2.25% chromium, 1% molybdenum B3 alloyed steel designed for prolonged elevated temperature service up to 600°C (1112°F)
  • Designed using a high purity steel sheath for high deposition rates
  • All-positional flux cored wire suitable for welding fixed pipework

Typical Applications

  • Steam Generating Power Plant
  • Piping
  • Turbine Castings
  • Valve Bodies and Boiler Superheaters
  • Coal Liquefaction and Pressure Vessels

Welding Positions

  • All

Shielding Gas

  • 80%Ar/ 20%C02 100% CO2
Specifications
FeatureValue
LECO Diameter 0.047 in (1.2 mm)
LECO Package 15 kg Spool
Diameter (in) 0.047
