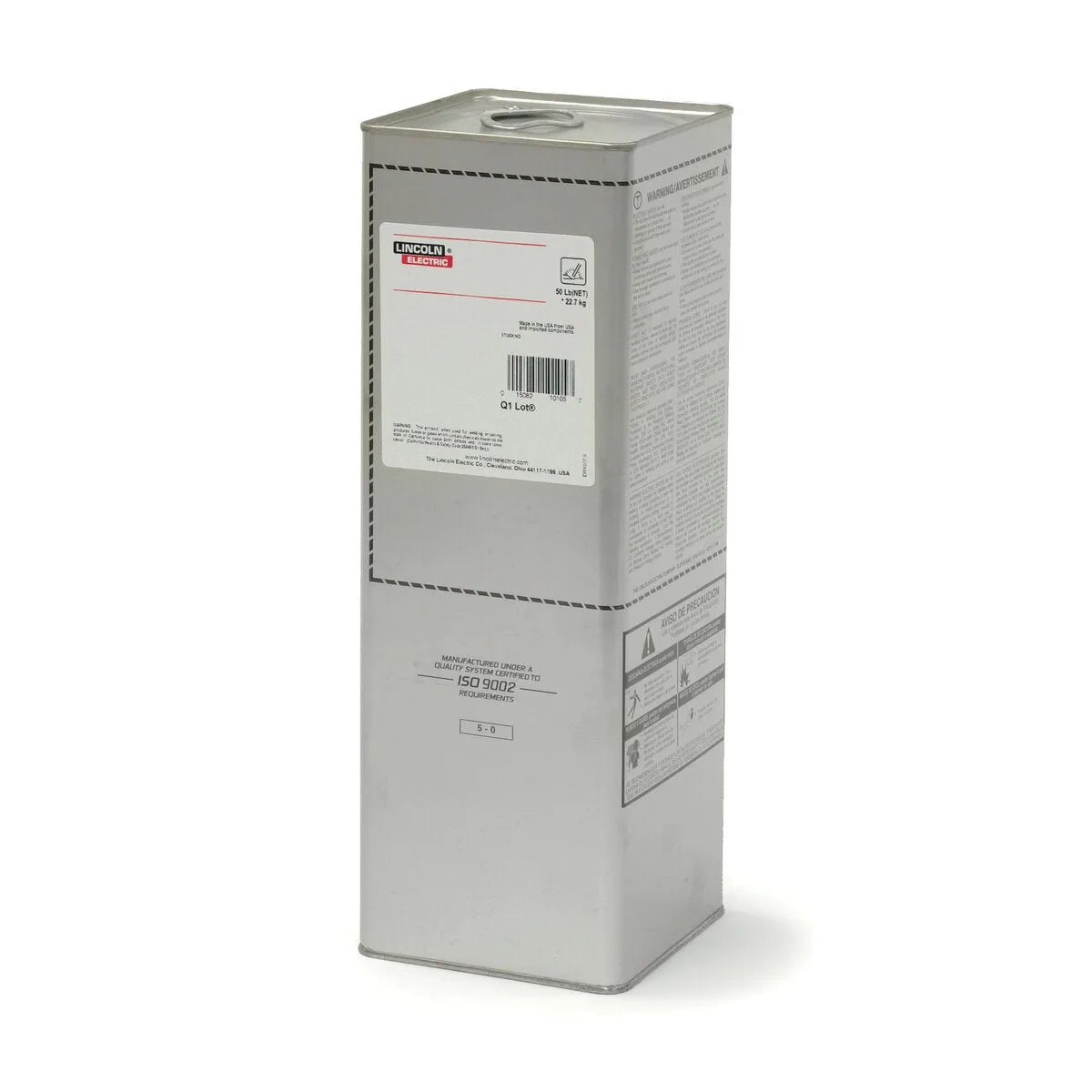

Lincoln Shield-Arc 85 is an AWS A5.5/A5.5M E7010-A1 SMAW stick electrode family with 70 ksi minimum tensile and DC+ only, all positions operation. WeldingMart stocks 4 package and diameter variants of this grade, all sharing the same AWS classification - select the diameter and package format that fits your application below.
About Lincoln Shield-Arc 85
E7010-A1 is an AWS A5.5 low-alloy cellulosic-coated DC+ SMAW electrode with 70 ksi minimum tensile and a 0.5% molybdenum addition for elevated-temperature service. The cellulose coating delivers deep-penetration, fast-freeze characteristics for cross-country pipeline root and fill passes on C-Mo and other low-alloy pipe grades operating in petroleum, power, and refinery service. DC+ only, all positions.
Specifications
| AWS classification | AWS A5.5/A5.5M E7010-A1 |
|---|---|
| Minimum tensile | 70 ksi minimum |
| Polarity / position | DC+ only, all positions |
| Available diameters | 3/32 in through 1/4 in (varies by package) |
| Package formats | see size variants below |
