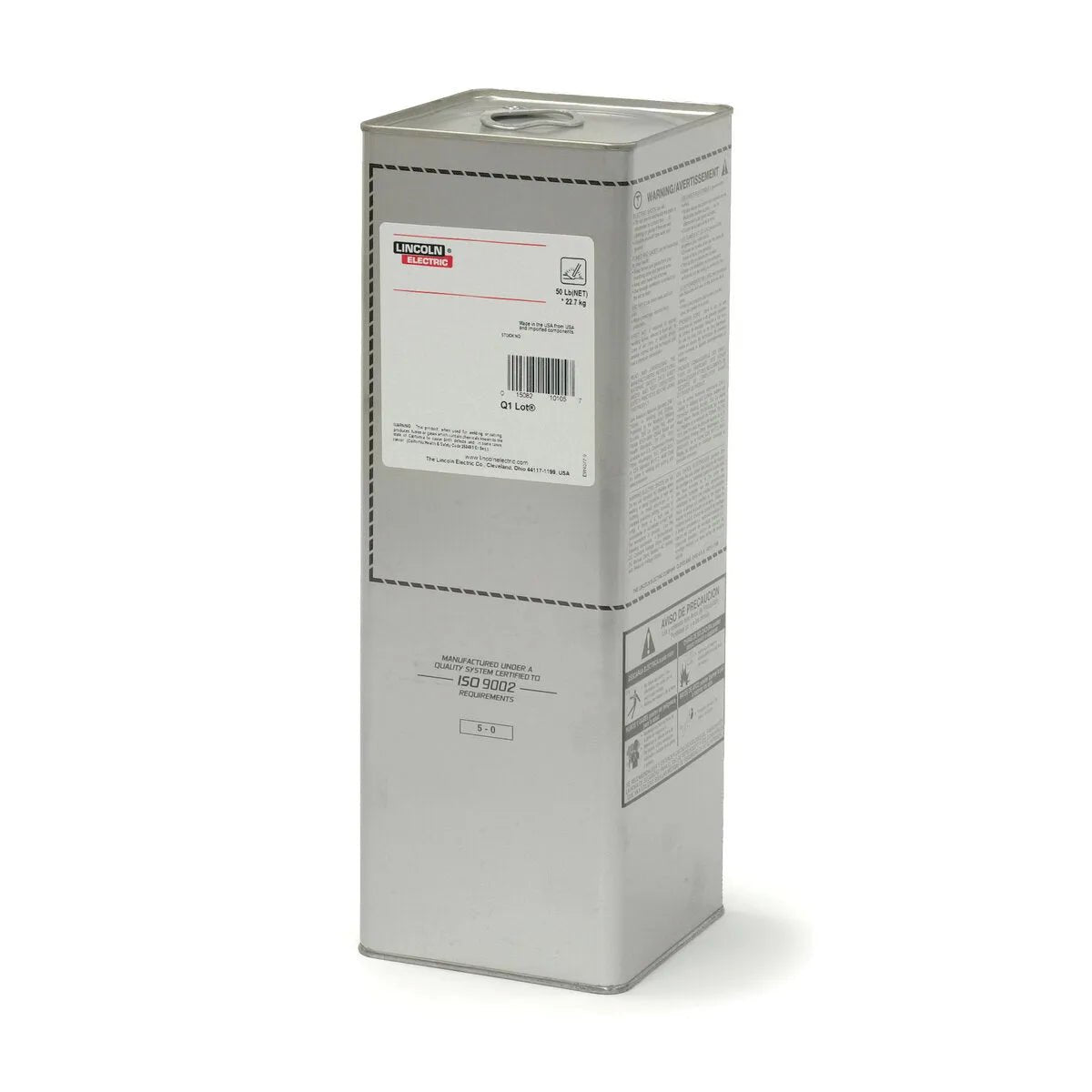

Lincoln Shield-Arc HYP is an AWS A5.5/A5.5M E7010-P1 SMAW stick electrode family with 70 ksi minimum tensile and DC+ only, all positions operation. WeldingMart stocks 3 package and diameter variants of this grade, all sharing the same AWS classification - select the diameter and package format that fits your application below.
E7010-P1 is an AWS A5.5 low-alloy cellulosic-coated DC+ SMAW electrode with 70 ksi minimum tensile, classified specifically for cross-country pipeline construction (P designator). Designed for deep-penetration vertical-down root and hot passes on API 5L X42 through X65 grade pipe in pipeline service. Cellulose coating delivers the fast-freeze, driving arc characteristics required for production pipeline welding. DC+ only, all positions.
| AWS classification | AWS A5.5/A5.5M E7010-P1 |
|---|---|
| Minimum tensile | 70 ksi minimum |
| Polarity / position | DC+ only, all positions |
| Available diameters | 3/32 in through 1/4 in (varies by package) |
| Package formats | see size variants below |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Multiple diameter and package variants in stock - select the SKU below that matches your job
- US warehouse fulfillment, 1 business day ship time
- 30-day returns on unopened cartons
