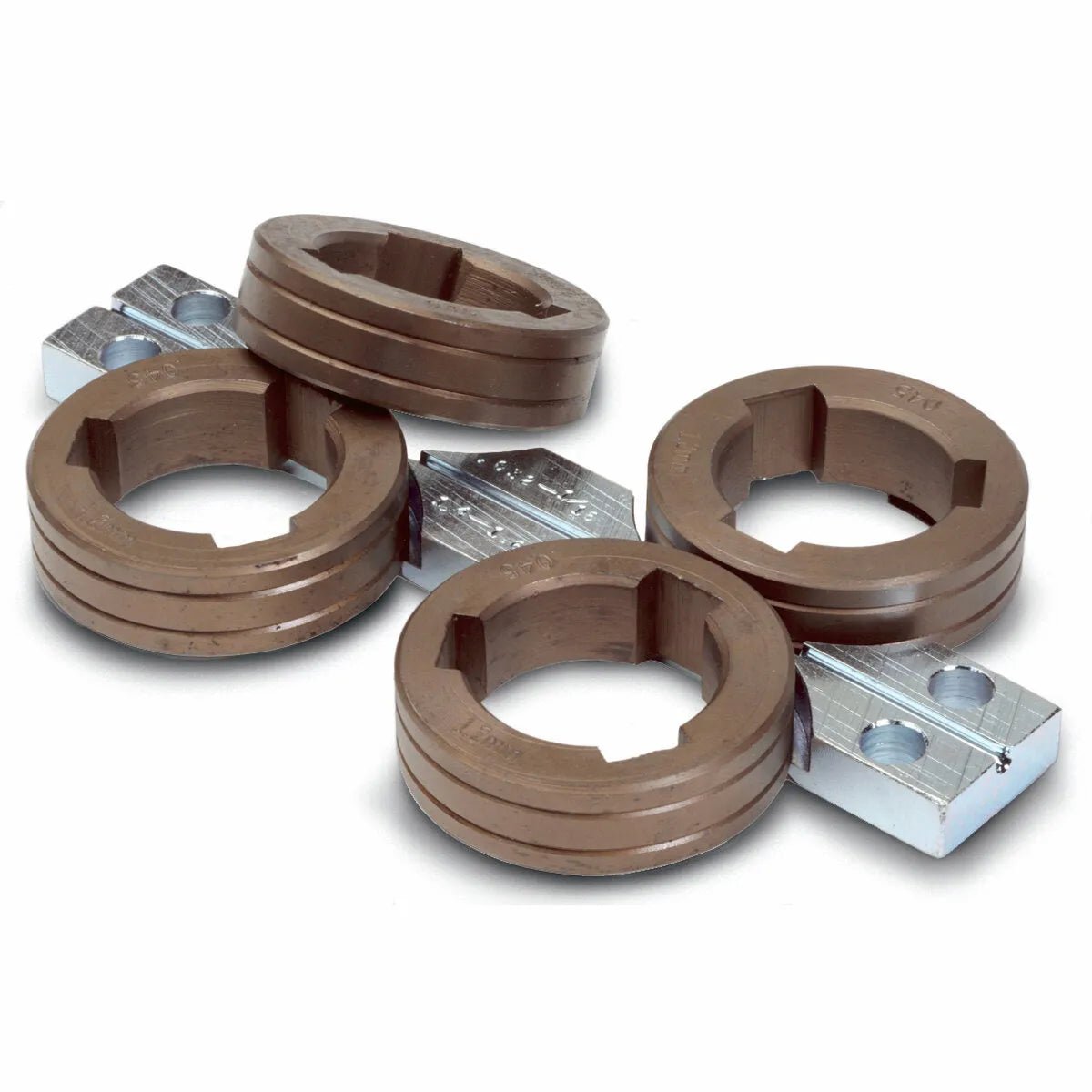

Lincoln Solid Wire Drive Roll Kit — KP1505

Product Overview

The Lincoln Electric Solid Wire Drive Roll Kit — KP1505 series provides reliable, accurate wire feed for MIG/GMAW solid wire applications across a comprehensive range of wire diameters from .023–.030 in (0.6–0.8 mm) through 1/16 in (1.6 mm). Engineered with V-groove roll geometry matched to solid wire, these kits ensure the consistent feed speed and wire tension required for stable GMAW arc performance on carbon steel, stainless steel, and general-purpose solid wire applications. The KP1505 solid wire roll kits are factory-matched to Lincoln Electric wire feeders using this specification, making them the correct replacement component for shops maintaining Lincoln Electric feeder systems.

Solid wire MIG/GMAW remains the dominant production welding process for light to medium structural fabrication, automotive, and general manufacturing. Proper drive roll selection — correct diameter, correct groove profile — is essential for maintaining the wire feed consistency that separates high-quality, stable GMAW welds from those plagued by arc wandering, spatter, and porosity caused by inconsistent feed speed.

Available Configurations

• KP1505-030S – Drive Roll Kit for Drive Roll Kit .023-.030 in (0.6-0.8 mm) Solid Wire
• KP1505-035S – Drive Roll Kit for KP1505-035S Drive Roll Kit .035 in (0.9 mm) Solid Wire
• KP1505-045S – Drive Roll Kit for KP1505-045S Drive Roll Kit .040-.045 in (1.0-1.1 mm) Solid Wire
• KP1505-052S – Drive Roll Kit for Drive Roll Kit .052 in (1.3 mm) Solid Wire
• KP1505-1/16S – Drive Roll Kit for Drive Roll Kit 1/16 in (1.6 mm) Solid Wire

Key Features

• V-groove roll profile — optimized for solid wire MIG/GMAW to prevent deformation while maintaining positive feed traction
• Wire diameter coverage: .023–.030 in through 1/16 in (0.6–1.6 mm) — full range for light to medium solid wire GMAW
• Factory-matched to Lincoln Electric KP1505-compatible feeders — direct replacement with no modification
• Consistent wire feed speed — supports stable arc, reduced spatter, and consistent bead profile in GMAW applications
• Precision groove tolerances — minimizes wire surface marking and maintains wire diameter for contact tip fit
• Minimal changeover time — drop-in replacement for compatible Lincoln Electric wire feeder configurations

Applications

• MIG/GMAW production welding on carbon steel and stainless steel with solid wire
• Automotive body, frame, and component welding with light-gauge solid wire
• Light structural steel fabrication in manufacturing and jobshop environments
• Sheet metal and enclosure manufacturing requiring .023–.035 in wire
• General maintenance and repair welding with solid MIG wire on Lincoln Electric feeders

Why Choose Lincoln Electric KP1505 Solid Wire Drive Roll Kits

Lincoln Electric KP1505 solid wire drive roll kits deliver factory-specification wire feed performance for GMAW applications across the full range of common solid wire diameters. With V-groove geometry matched to solid wire and direct compatibility with KP1505-specification Lincoln Electric feeders, these roll kits restore and maintain the consistent wire delivery that production-quality solid wire MIG/GMAW demands.
