How does the Lincoln ST450 10 x 10 Seam Tracker System with APC One-Pak K52011-1010 integrate with existing welding equipment?

Robotic welding systems from Lincoln Electric are engineered to integrate with Lincoln welding power sources and wire feeders via standard communication protocols (including DeviceNet, EtherNet/IP, and analog interfaces). Third-party robot arms and controllers may be integrated using the Lincoln Electric Power Wave interface standard. Consult Lincoln Electric's automation division or WeldingMart.com for system integration guidance specific to your application.

What consumable maintenance does the Lincoln ST450 10 x 10 Seam Tracker System with APC One-Pak K52011-1010 require?

Key consumable items in robotic MIG welding systems require more frequent maintenance than manual setups due to higher arc-on time: contact tips (check every 4–8 hours of arc time in high-cycle applications), nozzles (clean or replace when spatter restricts gas flow), liners (replace every 3 months or when feeding becomes erratic), and anti-spatter compound (reapply to nozzle/diffuser regularly to minimize spatter buildup).

What consumables and torch packages are compatible with the Lincoln ST450 10 x 10 Seam Tracker System with APC One-Pak K52011-1010?

Robotic welding consumables and torch packages have specific dimensional requirements for reach, clearance, and process performance within the robot's work envelope. Using consumables that are not rated for the system's amperage or that don't match the torch's throat geometry can cause arc instability, contact tip failures, and robot programming errors from unexpected wire position deviations.

What warranty and service support does the Lincoln ST450 10 x 10 Seam Tracker System with APC One-Pak K52011-1010 carry?

The Lincoln ST450 10 x 10 Seam Tracker System with APC One-Pak K52011-1010 carries a Cross Slide, Controller - 3 Years; Probe - 1 Year; Pendant, Cables, Accessories - 90 Days warranty from Lincoln Electric. Warranty coverage, service, and installation support for robotic welding systems requires coordination with a Lincoln Electric automation distributor. Contact WeldingMart.com or your regional Lincoln Electric distributor for system warranty registration and service procedures.

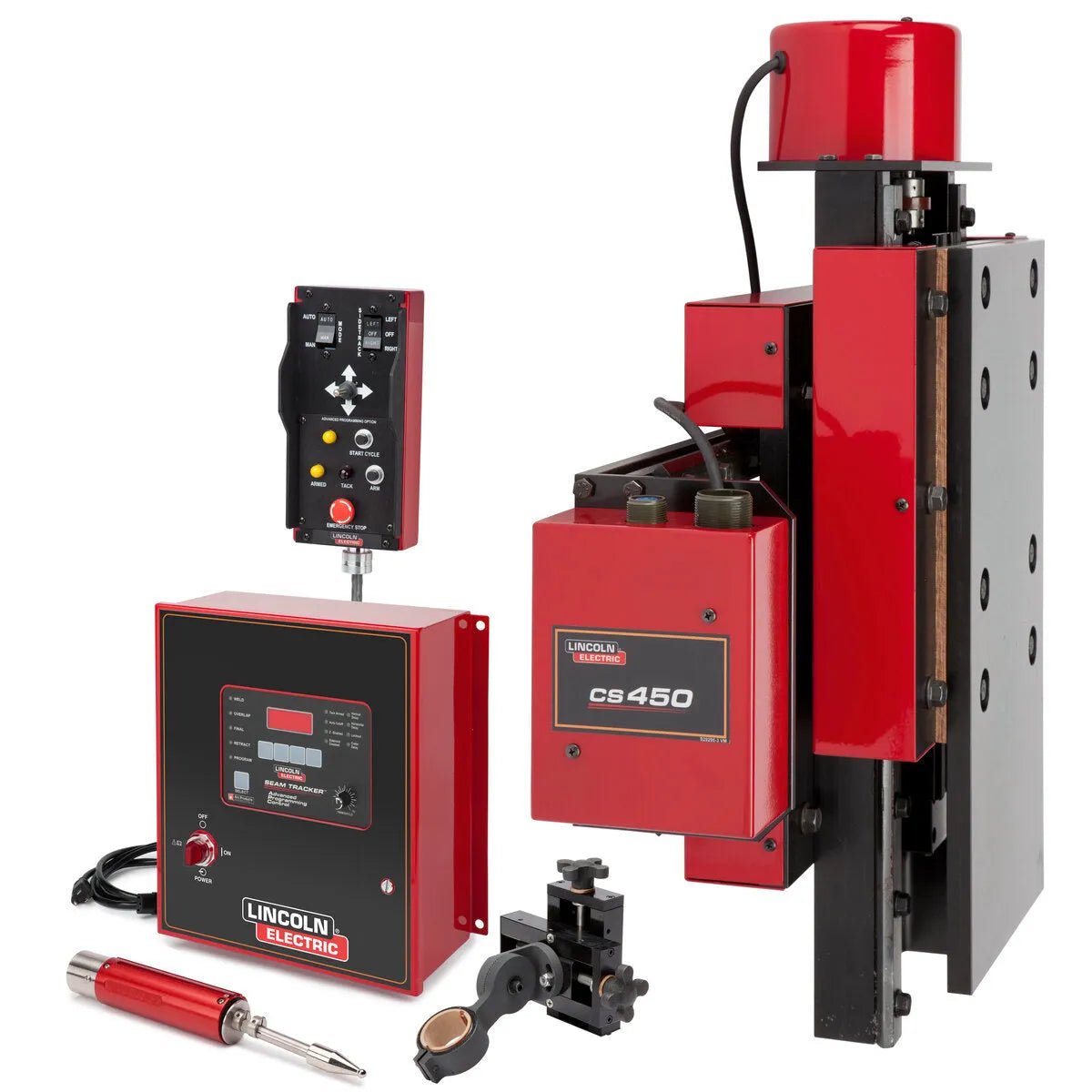

Lincoln ST450 10 x 10 Seam Tracker System with APC One-Pak K52011-1010

SKU: K52011-1010

$45,562.81 ~~$47,960.85~~

Lincoln Elite Dealer

Free Shipping

Lowest Price

Tactile seam tracking systems deliver precise automated seam tracking for SAW, GMAW, FCAW and GTAW welding processes

Overview

Lincoln ST450 10 x 10 Seam Tracker System with APC One-Pak K52011-1010

PRECISE AUTOMATED SEAM TRACKINGTactile seam tracking systems deliver precise automated seam tracking for submerged arc, GMAW, FCAW and GTAW welding processes. Ideal for repetitive welding applications, these systems are recommended over manual and semi-automatic welding to improve quality and consistency while reducing operational costs. A range of standard systems or customized solutions are available to meet the requirements of many tough production environments. Easy to Set Up Easy to Operate Operators can quickly learn to program and operate. Simple System Selection (Pre-configured systems are available) Select the desired level of automation one of two controllers and matching pendants. Choose a cross slide assembly based on load capacity required to handle the weight of the welding drive components. Determine the travel stroke length of each axis necessary to complete the weld. Select the application-specific seam sensor tip. Advanced Controls Available Gain these additional capabilities with the Advanced Programming Control (APC) Program the entire sequence of the weld cycle as a position-based or time-based configuration. Store up to 19 weld sequence programs. Widespread Integration Capability Build a system around almost any welding power source, feeder and controlled group.

Features

Tactile probe with multiple tip options to precisely track most joint configurations
Complete package for simplified ordering and installation
Flexible integration with any welding power source, feeder and controller
Advanced Controls Preinstalled
Remote I/O to send and receive signals from external devices

Specifications

Feature	Value
Typical Applications	Heat Exchangers Heavy Equipment Heavy Fabrication High Pressure Piping Marine Fabrication & Repair Offshore Oil & Gas Petrochemical Petrochemical Industry Pressure Vessels Process Piping Railcar Fabrication Robotics/ Hard Automation Shipbuilding Structural Fabrication
Processes	Flux-Cored (FCAW) MIG (GMAW) Submerged Arc (SAW)
Equipment Classification	Heavy Industrial

Includes

Order a Lincoln Electric One-Pak and get everything you need to complete a welding package - all with one order number.(Packages are unassembled.) K52021-1 Advanced Programming Control K52023-1 Advanced Process Pendant w/ 10 ft (3 m) Cable K52033-1 Cable 4 ft (1.2 m) K52030-1 Cable 10 ft (3 m) K52015-1010 CS450 Cross Slide 10 x 10 (254 x 254) K52019-1 Seam Sensor Assembly KP52026-1 Five Axis Probe Bracket KP52027-1 Weld Torch Mounting Kit KP52029-1 Sensor Insulator KP52028-1 Seam Sensor Tip PT012 1/8 in (3.2 mm) "
