Lincoln Start All 10,000A 12V Jump Pack - K5960-1

SKU: K5960-1
$1,070.16

Financing Options

As low as /mo with.
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
A built-to-last, lithium ion powered jump starter that will charge mobile devices and start the toughest Class 8 engines on demand - 10,000A at 12V with 133,200 joules.

Overview

Start•All® Jump•Pack, 10,000A, 12V, 133,200 Joules - instantly jump-start your Class 8 commercial vehicles. Built to last, the 10,000A, 133,200 joules, 12V Start•All® Jump•Pack starts the toughest engines up to 16 liters on demand. The Start•All® Jump•Pack is equipped with proprietary technology, which provides an instantaneous energy transfer to the battery the moment the cables are properly connected, which maximizes jump-starter performance. A 236.8 watt-hour lithium-ion battery also runs the built-in USB, USB-C and 12V DC ports, so the same pack that starts a semi charges phones, tablets and laptops on the job.

Features
  • Instantly Starts Engines up to 16 Liters Instantly starts gasoline and diesel engines up to 16 liters for trucks, semis, buses, construction and agriculture equipment. One pack covers a mixed Class 8 fleet instead of needing a separate starter for each vehicle size.
  • 10,000 Peak Amps at 12V Delivers 10,000A of peak starting current at 12V with 133,200 joules of starting energy, drawn from a 236.8 watt-hour (236,800 mWh) high output premium lithium-ion battery.
  • Instantaneous Energy Transfer The Start•All® Jump•Pack is equipped with proprietary technology which provides an instantaneous energy transfer to the battery the moment the cables are properly connected, maximizing jump-starter performance rather than waiting on a slow surface charge.
  • Multiple Power Ports for Mobile Devices Easily charge phones, tablets, laptops and portable gaming devices. Power ports include (1) DC auxiliary power port, (2) 2.1A USB ports and (1) 30W USB-C port.
  • 1/0-Gauge Cables with Large Metal Clamps Large metal clamps on 1/0-gauge jumper cables carry the full 10,000A without heating up, and bite through corrosion on truck battery posts and frame grounds.
  • Protect•All® Safety Technology Protect•All® safety technology provides longer durability and eliminates wear points. Built-in protection covers reverse polarity, low voltage, short circuit, overheat, over discharge, over voltage and open clamp.
  • 500 Lumen LED Emergency Light A 500 lumen LED emergency light with High/Low settings and an SOS emergency strobe function lets you work a roadside battery or flag traffic without a second flashlight.
  • Up to 5,000 Starts of Lifetime Performance Rated for up to 5,000 starts over the life of the pack, so it holds up to daily fleet and shop duty.
  • 11.1 lb Bare, 17 lb With Case The pack weighs 11.1 lb (5 kg) on its own and 17 lb (7.7 kg) packed in the included carrying case, light enough to carry to the vehicle instead of towing a cart.
  • Backed by a 1-Year Warranty Covered by Lincoln Electric's 1 year warranty. Genuine Lincoln Electric Start•All® Jump•Pack.
What's Included
  • Start•All® Jump•Pack
  • Jumper Cables

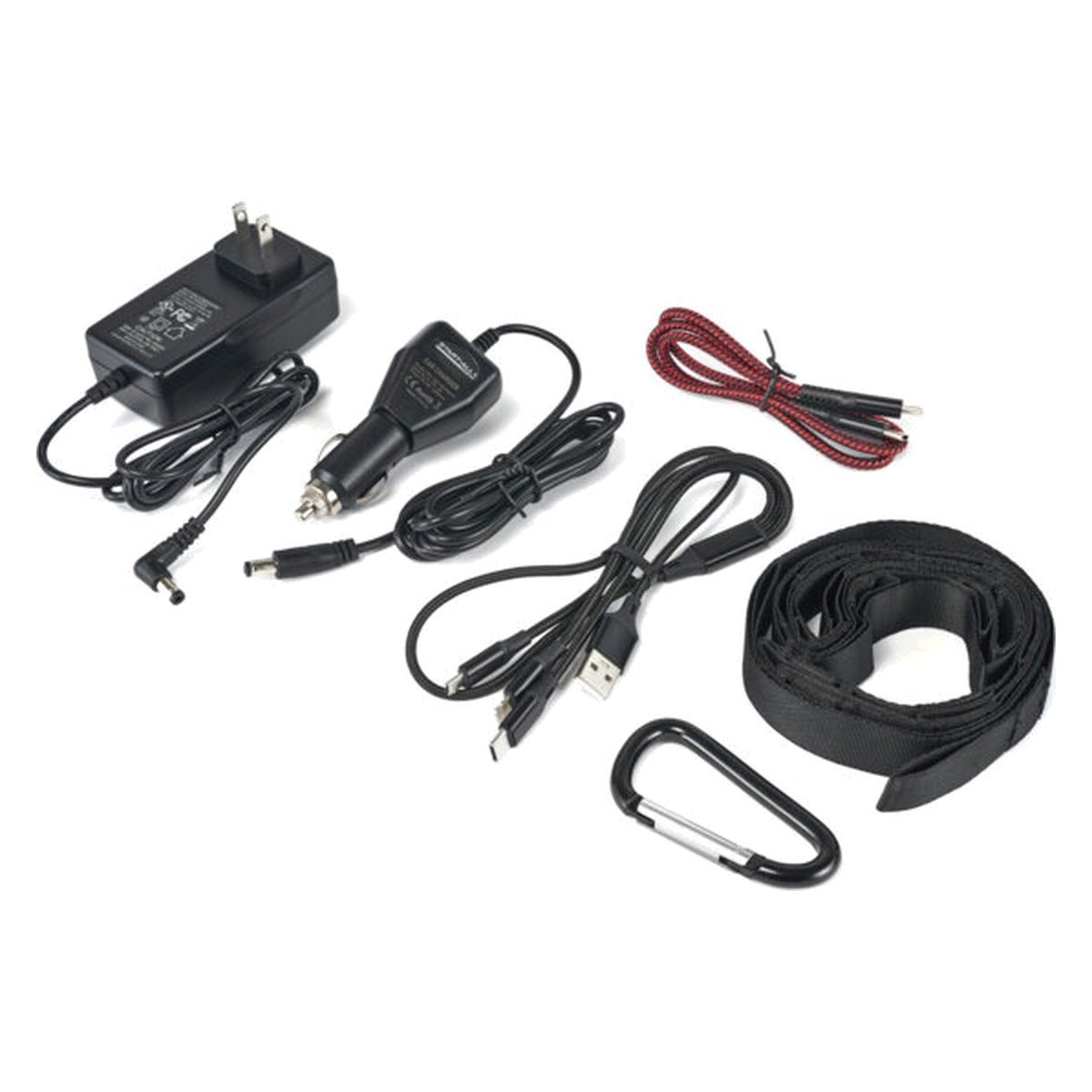

  • 18V 120-240V AC Wall Charger
  • 12V DC Port (Car) Charger
  • 3-in-1 Mobile Adapter
  • Safety Strap
  • Carabiner

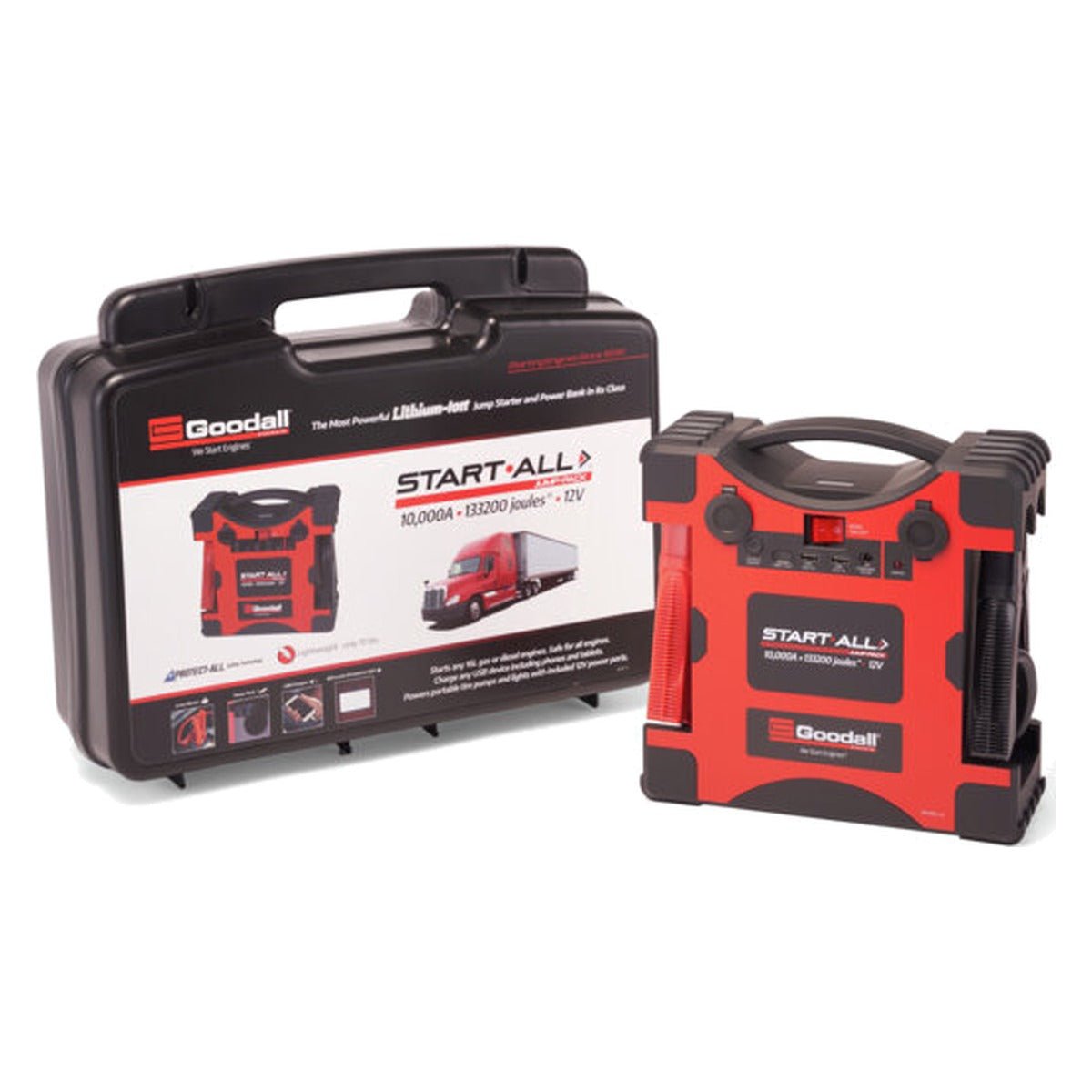

  • Carrying Case
Specifications

Specifications

Product Family — Start•All® Jump•Pack
Product Type — Lithium-Ion Battery Jump Starter & Power Pack
Engine Capability — Instantly jump-starts gasoline and diesel engines up to 16 liters
Peak Amps — 10,000A
System Voltage — 12V
Starting Energy — 133,200 joules
Battery Type — High Output Premium Lithium-Ion
Battery Capacity — 236.8 Watt-Hours (236,800 mWh)
Lifetime Performance — Up to 5,000 starts
Jumper Cables — 1/0-gauge with large metal clamps
Power Ports — (1) DC auxiliary power port, (2) 2.1A USB ports, (1) USB-C 30W port
Work Light — 500 lumen LED with High/Low and SOS emergency strobe
Safety Protection — Protect•All® - reverse polarity, low voltage, short circuit, overheat, over discharge, over voltage, open-clamp
Storage Temperature — 40 °F to 75 °F (4 °C to 24 °C)
Dimensions (H x W x D) — 10.78 x 4.33 x 10.93 in (274 x 110 x 278 mm)
Net Weight — 11.1 lb (5 kg); 17 lb (7.7 kg) with case
Spec Sheet — Lincoln Electric publication E17.22
Order Number — K5960-1

Typical Applications

  • Class 8 Trucks and Semis
  • Buses and Motorcoaches
  • Construction Equipment
  • Agricultural Equipment
  • Fleet Maintenance and Repair
  • Roadside Assistance and Towing
  • Mobile Service Trucks

Warranty

1 Year
