Lincoln Electric — Lincoln Large Wire Twinarc Kit K225
Large Wire Twinarc® Kit for 5/64", 3/32" or 1/8" diameter wires.
Specifications
- Typical Applications: Heavy Fabrication
- Equipment Classification: Heavy Industrial
- Part number: K225

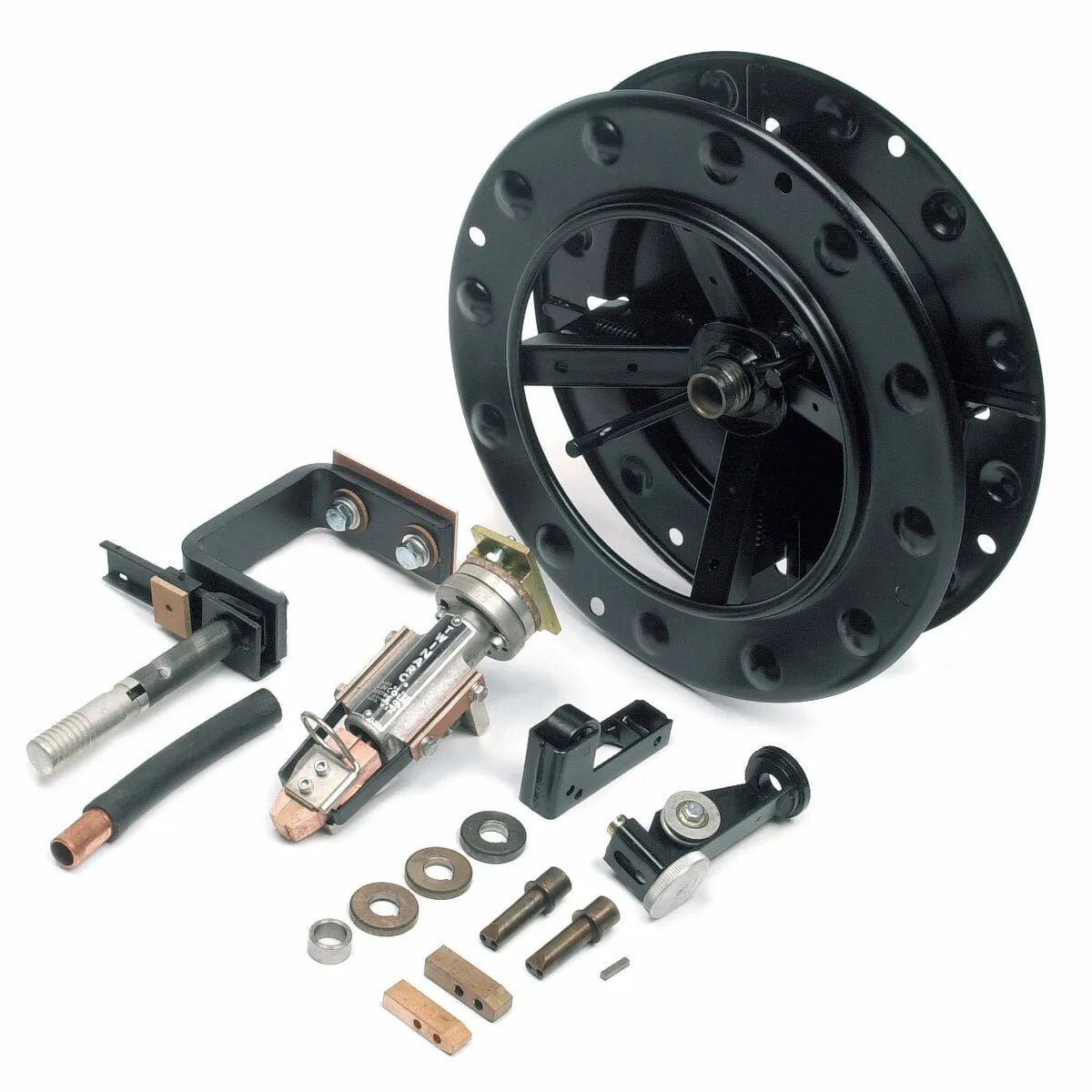

What's in the box
- Wire reel
- insulated reel mounting bracket
- drive rolls
- drive roll locating collar
- idle roll assembly
- wire straightener
- dual wire guides
- nozzle
- contact block.
Compatibility & sizing
- Lincoln category: Guns & Torches - Submerged Arc Torches
Why pros choose this
A wire feeder must match the wire-size range, drive-roll configuration, and voltage class of the power source. Boom and bench feeders trade off portability against duty cycle.
Warranty
1 Year
From the manufacturer
Large Wire Twinarc Kit allows for the Twinarc submerged arc welding process for wire diameters 5/64-1/8" diameter. Both wires must be the same size. The kit includes a wire reel, insulated reel mounting bracket, drive rolls, drive roll locating collar, idle roll assembly, wire straightener, dual wire guides, nozzle, contact block.
An NA-3S, NA-4 or NA-5 with a 142/1 gear ratio should be used.
Contact nozzle assembly has two spring loaded jaws for consistent electrical contact and electrical stick out.Features
- Feeds two 5/64 in (2.0 mm), 3/32 in (2.4 mm) or 1/8 in (3.2 mm) wires
- Submerged arc welding on "Fast-Fill" joints or hardfacing beads
