What shielding gas or flux type does the Lincoln Supercore 316LCF - 0.047 in (1.2 mm) - 15KG (33LB) Spool - SC316LCF-12 require?

Stainless steel MIG wire typically uses 98% Ar/2% O2 or tri-mix (He/Ar/CO2) shielding gas. For Lincoln Supercore 316LCF - 0.047 in (1.2 mm) - 15KG (33LB) Spool - SC316LCF-12: AWS E316LT1-1/4 J applications — 308L suits 304/308 stainless; 309L suits dissimilar metal joints; 316L adds molybdenum for corrosion resistance in marine and chemical environments; 317L provides higher molybdenum content than 316L. Always use the correct filler alloy for your base metal to maintain corrosion resistance across the weld zone.

What is the deposit strength of the Lincoln Supercore 316LCF - 0.047 in (1.2 mm) - 15KG (33LB) Spool - SC316LCF-12?

For E316LT1-1/4 J: Deposit tensile strength for mild steel solid MIG wire (ER70S-x) is approximately 70,000 PSI (483 MPa) minimum. For stainless filler metals, the deposit strength matches the base alloy grade. For flux-core wires, strength and chemistry vary by classification — refer to the AWS classification on the package for the exact mechanical property requirements.

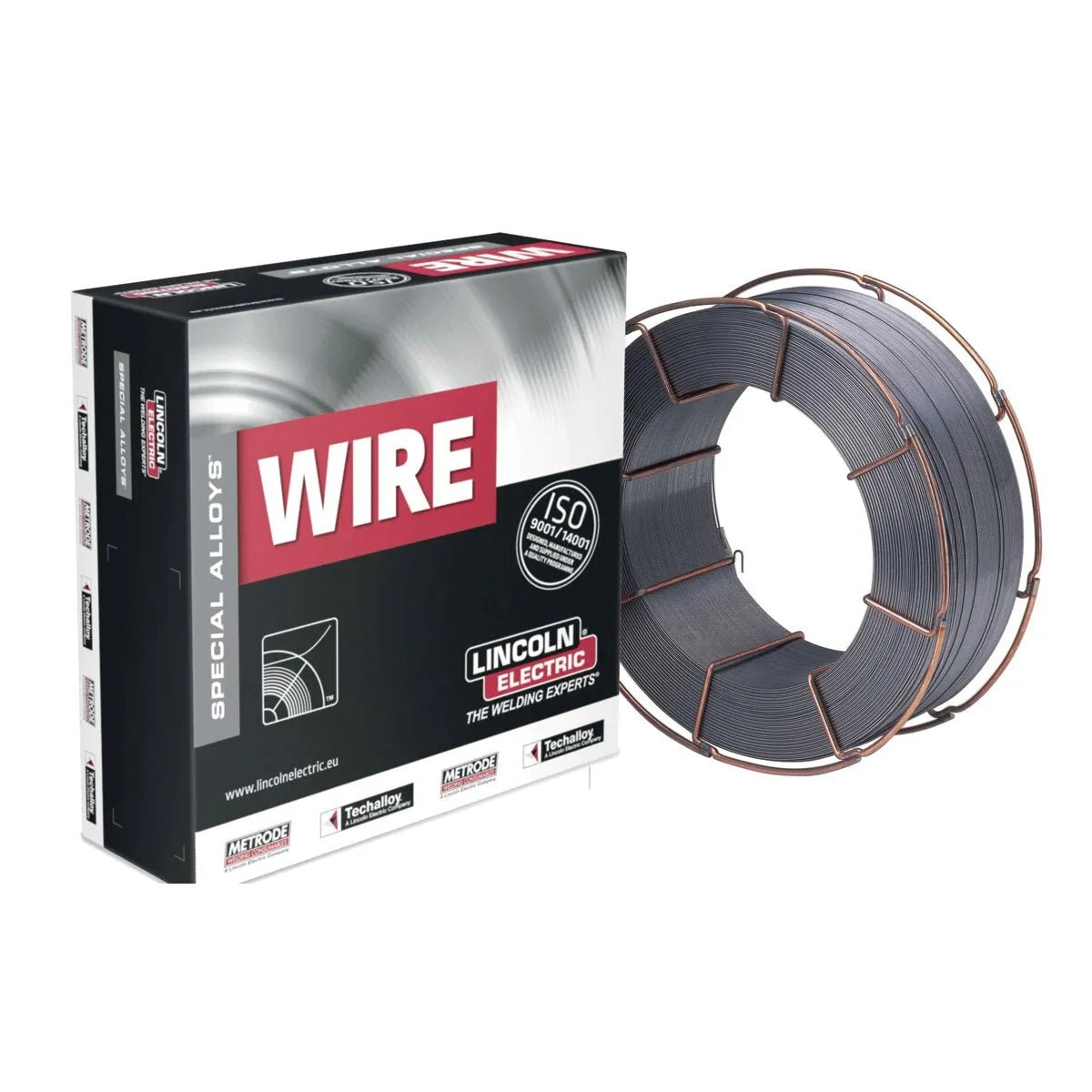

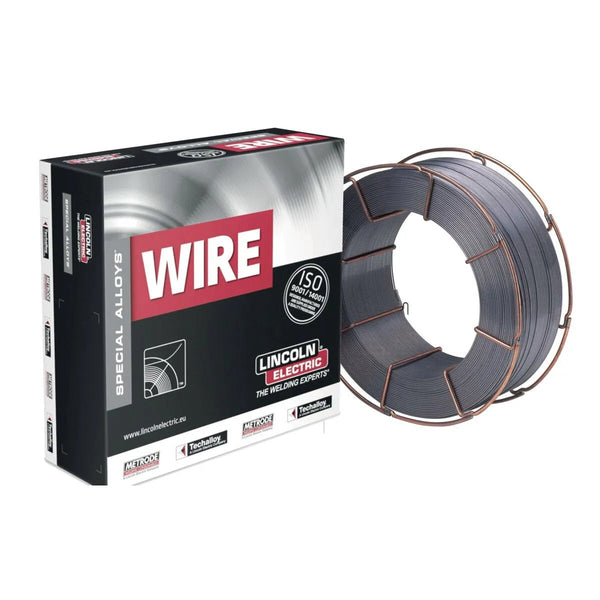

Lincoln Supercore 316LCF - 0.047 in (1.2 mm) - 15KG (33LB) Spool - SC316LCF-12

Q: What wire diameter is the Lincoln Supercore 316LCF - 0.047 in (1.2 mm) - 15KG (33LB) Spool - SC316LCF-12 available in?

The Lincoln Supercore 316LCF - 0.047 in (1.2 mm) - 15KG (33LB) Spool - SC316LCF-12 is available in .045 diameter. Wire diameter selection depends on base metal thickness and travel speed requirements: .023 in suits thin sheet metal (up to 3/16 in), .030 in is versatile for 1/8–1/4 in, .035 in is the most common all-purpose diameter for 3/16–1/2 in steel, and .045 in or larger suits heavy plate and high-deposition applications.

Q: What spool size is the Lincoln Supercore 316LCF - 0.047 in (1.2 mm) - 15KG (33LB) Spool - SC316LCF-12 available in?

MIG wire spool sizes range from 2 lb (small hobbyist spools) to 600 lb bulk drums. Most production feeders accept 12 in (33–44 lb) spools. Check your wire feeder's spool capacity before ordering — some compact machines only accept 4 in (10 lb) spools. Using the largest spool that fits your feeder minimizes change-over time.

Q: How should I store the Lincoln Supercore 316LCF - 0.047 in (1.2 mm) - 15KG (33LB) Spool - SC316LCF-12 to prevent weld quality issues?

Store MIG wire in a clean, dry location away from humidity. Moisture absorption causes porosity in the weld — mild steel wire is particularly susceptible. If wire has been exposed to moisture, it may show surface rust; lightly rusted wire can sometimes be used but should be wiped before feeding. Flux-core and low-hydrogen electrodes require stricter moisture control than solid wire. Keep spools in their original packaging or sealed containers with desiccant packets when not in use.

SKU: SC316LCF-12

$795.42

Lincoln Elite Dealer

Free Shipping

Lowest Price

Controlled Low Ferrite (Range 3-5)

AWS / Classification: AWS A5.22: E316LT1-1/4 J

Overview

SUPERCORE™ 316LCF provides controlled low ferrite for 316L stainless steel and austenitic steel base metals with service temperatures down to -196°C (-320°F).

Features

Controlled Low Ferrite (Range 3-5)
Charpy V-Notch test results capable of exceeding 27 J (20 ) @ -196°C (-320°F)
Exceeds 15 mils (0.38 mm) of lateral expansion @ -196°C (-320°F)
Batch Managed Inventory

Specifications

Feature	Value
LECO Diameter	0.047 in (1.2 mm)
LECO Package	33 lb Spool
Diameter (in)	0.047

Includes

Safe Use Guide; SDS available online

Reviews

Q&A

Product Overview

SUPERCORE™ 316LCF provides controlled low ferrite for 316L stainless steel and austenitic steel base metals with service temperatures down to -196°C (-320°F).

Features

Controlled Low Ferrite (Range 3-5)
Charpy V-Notch test results capable of exceeding 27 J (20 ) @ -196°C (-320°F)
Exceeds 15 mils (0.38 mm) of lateral expansion @ -196°C (-320°F)
Batch Managed Inventory

Specifications

Feature	Value
LECO Diameter	0.047 in (1.2 mm)
LECO Package	33 lb Spool
Diameter (in)	0.047
