What diameter is the Lincoln T2133MN-24 21.33.MnNb TIG GTAW Cut Lengths, 3/32in. 5kg Tube available in, and how do I choose the right size?

TIG filler rod diameter selection: match the rod diameter approximately to the base metal thickness. 1/16 in (1.6 mm) for thin sheet, 3/32 in (2.4 mm) for medium gauge, 1/8 in (3.2 mm) for heavy plate. Using a rod that is too large requires excessive heat to melt the rod and can cause overheating of thin base metal.

What shielding gas should I use with the Lincoln T2133MN-24 21.33.MnNb TIG GTAW Cut Lengths, 3/32in. 5kg Tube?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the Lincoln T2133MN-24 21.33.MnNb TIG GTAW Cut Lengths, 3/32in. 5kg Tube?

TIG filler rods carry an AWS classification (e.g., ER70S-2 for mild steel, ER308L for 304 stainless, ER4043 for aluminum) that specifies the chemical composition and mechanical properties of the deposited weld metal. Always verify the AWS class when writing or qualifying a Welding Procedure Specification (WPS) for code work.

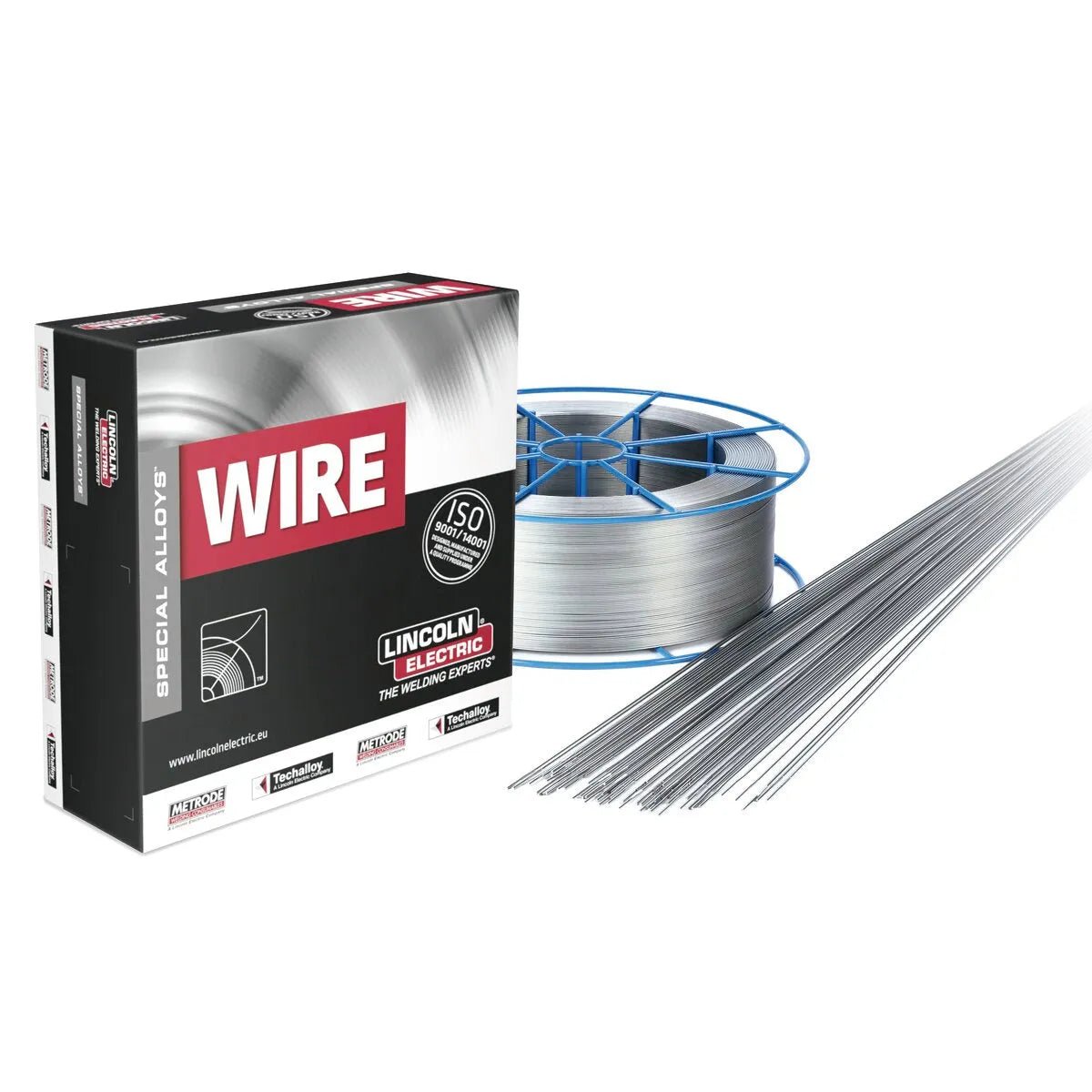

Lincoln T2133MN-24 21.33.MnNb TIG GTAW Cut Lengths, 3/32in. 5kg Tube

Q: What is the Lincoln T2133MN-24 21.33.MnNb TIG GTAW Cut Lengths, 3/32in. 5kg Tube used for?

TIG (GTAW) filler rods are used in the gas tungsten arc welding process, where the welder manually feeds the rod into the weld pool while maintaining the arc with the torch. TIG welding produces the highest quality, lowest spatter welds and is the process of choice for precision work on stainless, aluminum, titanium, and exotic alloys.

Q: How should I store the Lincoln T2133MN-24 21.33.MnNb TIG GTAW Cut Lengths, 3/32in. 5kg Tube to maintain weld quality?

The Lincoln T2133MN-24 21.33.MnNb TIG GTAW Cut Lengths, 3/32in. 5kg Tube is sold in 10 lb packages. TIG rods are 36 in long and sold by weight (1 lb, 5 lb, 10 lb, 25 lb tubes). Store rods in a dry location — TIG rods, especially low-hydrogen stainless and nickel alloy rods, are sensitive to moisture. Keep tubes sealed and store at room temperature with low humidity.

SKU: T2133MN-24

$342.30

Lincoln Elite Dealer

Free Shipping

Lowest Price

SOLID TIG WIRE FOR 800H AND SIMILAR HEAT RESISTING ALLOYS

Overview

Lincoln T2133MN-24 21.33.MnNb TIG GTAW Cut Lengths, 3/32in. 5kg Tube

This is a high Mn, 21%Cr-33%Ni-1%Nb, micro-alloyed wire for TIG welding of 800H alloys and similar heat resisting alloys

Features

• Design for hot cracking resistance in highly restrained welds
• Optimum resistance to ageing embritlement
• Available in PE tube

Specifications

Feature	Value
LECO Diameter	3/32 in (2.4 mm)
LECO Package	5 kg Tube
Diameter (in)	3/32
