What shielding gas should I use with the Lincoln T316S92-16 316S92 TIG GTAW Welding Rod Cut Lengths, 1/16in. 5kg Tubes?

TIG welding shielding gas selection: use pure argon (99.995% purity) for most TIG applications including steel, stainless, aluminum, and titanium. Helium additions (25–75% He/Ar mix) increase heat input and travel speed for heavy section work and aluminum welding where higher deposition is needed. Never use CO2 or mixed gases designed for MIG welding in TIG torches.

What is the AWS classification of the Lincoln T316S92-16 316S92 TIG GTAW Welding Rod Cut Lengths, 1/16in. 5kg Tubes?

The Lincoln T316S92-16 316S92 TIG GTAW Welding Rod Cut Lengths, 1/16in. 5kg Tubes carries AWS ER316L classification, confirming it meets the American Welding Society's chemical composition and mechanical property requirements for that filler metal category. The AWS classification appears on the rod tube label and verifies the rod's chemistry for code-compliance welding procedures (WPS/PQR).

Lincoln Electric TIG Rod 1/16" – 5 kg

Q: What is the Lincoln T316S92-16 316S92 TIG GTAW Welding Rod Cut Lengths, 1/16in. 5kg Tubes used for?

AWS ER316L Stainless TIG rod is used for GTAW (TIG) welding of stainless steel base metals. Match the filler alloy to the base material: ER308L for 304/308 stainless, ER309L for dissimilar welds (stainless to carbon steel), ER316L for marine and chemical service, ER317L for higher corrosion resistance than 316L. Using the wrong filler can reduce corrosion resistance at the weld zone.

Q: What diameter is the Lincoln T316S92-16 316S92 TIG GTAW Welding Rod Cut Lengths, 1/16in. 5kg Tubes available in, and how do I choose the right size?

TIG filler rod diameter selection: match the rod diameter approximately to the base metal thickness. 1/16 in (1.6 mm) for thin sheet, 3/32 in (2.4 mm) for medium gauge, 1/8 in (3.2 mm) for heavy plate. Using a rod that is too large requires excessive heat to melt the rod and can cause overheating of thin base metal.

SKU: T316S92-16

$241.98

Lincoln Elite Dealer

Free Shipping over $250

Lowest Price

Solid TIG wire with extra low carbon for welding stainless CrNiMo-steels

AWS / Classification: AWS A5.9: ER316L

Overview

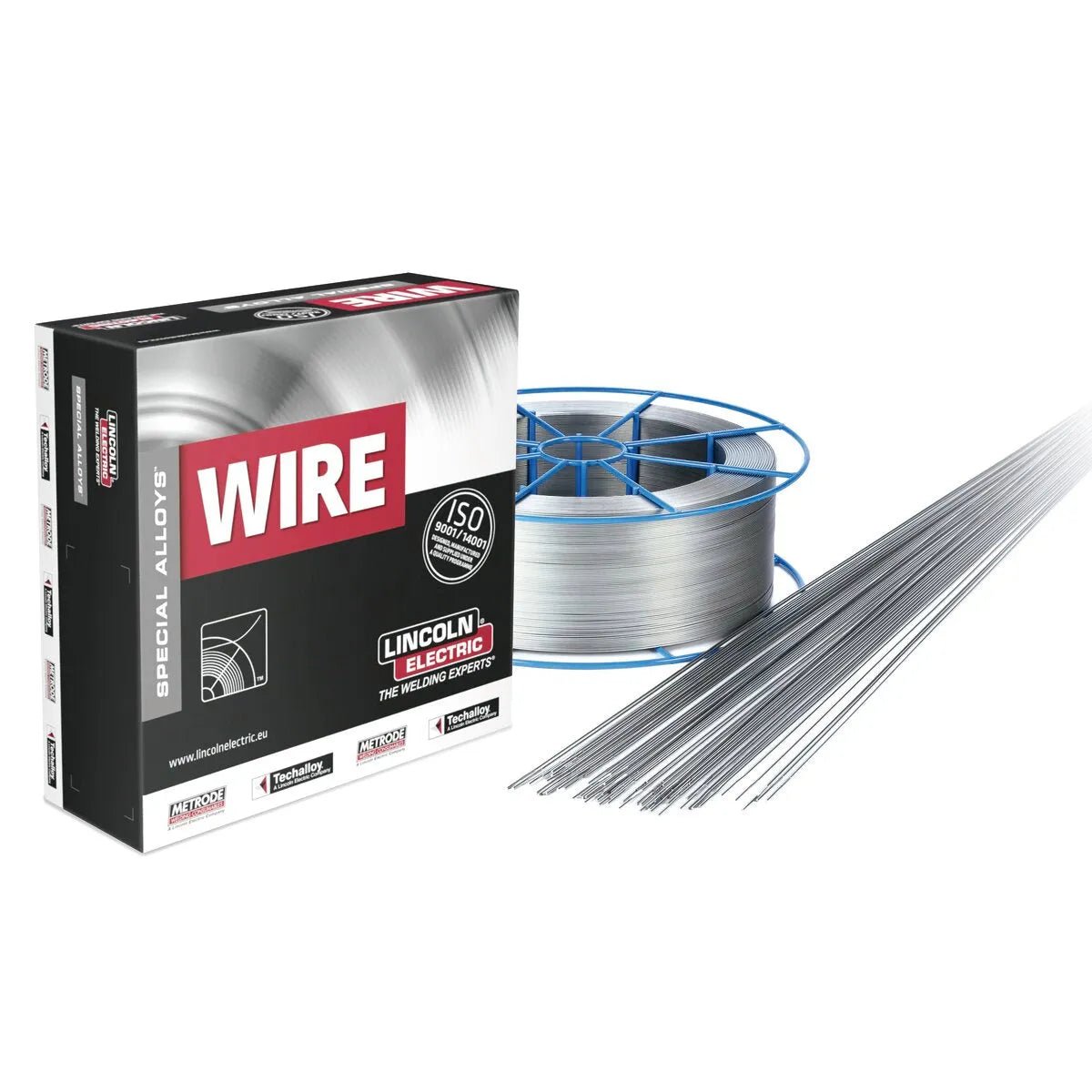

Lincoln T316S92-16 316S92 TIG GTAW Welding Rod Cut Lengths, 1/16in. 5kg Tubes

316S92 is used for welding of 316 and 316L grade stainless steels. It is used for a wide range of applications including pipework and plate fabrication, vessel production etc. The weld metal has a high resistance to crevice corrosion by oxidising acids.

Features

• High resistance to intergranular corrosion and general corrosion conditions
• Ferrite number between 3-10
• Available in PE tube

Specifications

Feature	Value
LECO Diameter	1/16 in (1.6 mm)
LECO Package	5 kg Tube
Diameter (in)	1/16

Reviews

Q&A

Product Overview

Lincoln T316S92-16 316S92 TIG GTAW Welding Rod Cut Lengths, 1/16in. 5kg Tubes

Features

• High resistance to intergranular corrosion and general corrosion conditions
• Ferrite number between 3-10
• Available in PE tube

Specifications

Feature	Value
LECO Diameter	1/16 in (1.6 mm)
LECO Package	5 kg Tube
Diameter (in)	1/16
