Lincoln Electric Welding Wire

SKU: T5CRMO-24
$124.68
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
ER80S-B6
AWS / Classification: AWS A5.28M: ER80S-B6
Overview

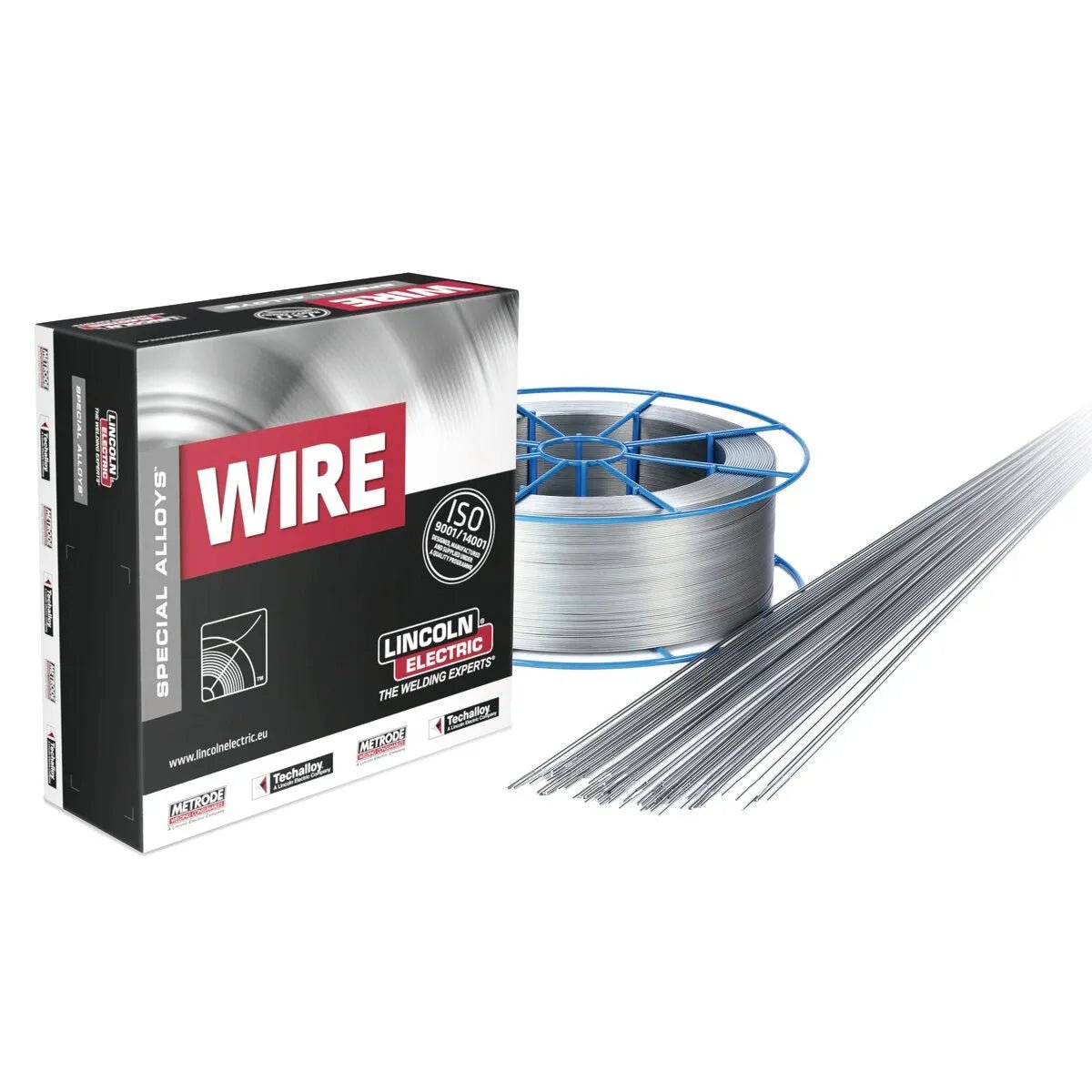

Lincoln T5CRMO-24 5CRMO Welding Wire GTAW, 2.4, 5. kg tube

Low Alloy Steel • AWS A5.28M ER80S-B6

Features
  • B6 alloyed steel: 5% chromium, 0.5% molybdenum alloyed steel consumable for elevated temperature service up to 600°C (1112°F)
  • Designed for high strength and improved corrosion resistance in superheated steam, hot hydrogen gas and high sulphur crude oils

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.28 ER80S-B6
Classification Postweld Heat TreatmentShielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %
ER80S-B6 Requirement 100% ArDC-470 (68) min.550 (80) min.17 min.
Typical Result, Stress relieved 1 hour @ 750°C (1380°F)100% ArDC-560 (82)670 (97)25
Classification Shielding Gas
Typical Result 100% Ar
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%Total Cu
ER80S-B6 Requirement 0.10 min.4.50 - 6.000.40 - 0.700.45 - 0.650.60 max.0.025 max.0.025 max.0.50 min.0.35 max.
Typical Result 0.085.660.480.560.100.0100.0080.400.10
LECO Diameter 3/32 in (2.4 mm)
LECO Package 5 kg Tube
Diameter (in) 3/32
Length (in) 39.4
