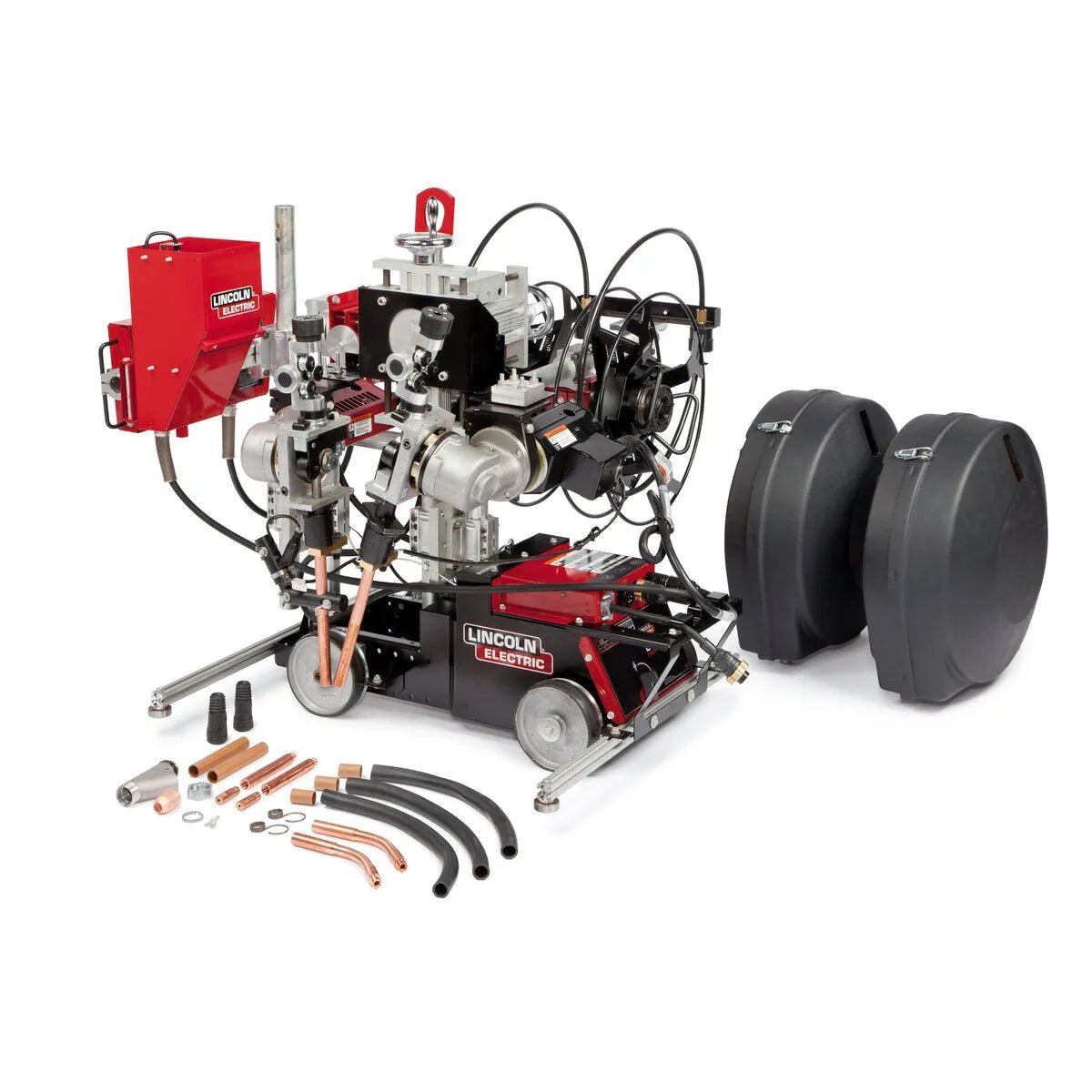

Lincoln Electric — Lincoln Tandem Cruiser Tractor K3083-1
The Tandem Cruiser Tractor submerged arc welding tractor is ideal for bridge or barge decking, large tank fabrication or shipbuilding.
Specifications
- Typical Applications: Heavy Fabrication, Pipeline & Offshore, Piping, Power Generation, Pressure Vessels, Process Piping, Robotics/ Hard Automation
- Processes: Submerged Arc (SAW)
- Welding Technology: Inverter/Chopper
- Part number: K3083-1
- UPC/EAN: 015082533827
What's in the box
- Conduit Tubing – 5 feet (1.5 m)
- 5/32 in. (4.0 mm ) 600 Amp Contact Nozzle Assembly
- 5/32 in. Contact Tip
- Nozzle Extension – 5 in. (127 mm)
- Curved Nozzle Extension 45°
- Nozzle Extension Insulator
- Flux Tubing
- Flux Hose Clamps
- Wire Reel Assembly
- Wheels for Track Operation
- Cross Slide Assembly (2)
- Front and Rear Outriggers
- Enclosed Wire Reel (2)
- Wire Straightener (2) (K1733-5)
- Note: Control cable not included
Compatibility & sizing
- Lincoln category: Welding Equipment - Submerged Arc Feeders
- Compatible families: Cruiser
Why pros choose this
A wire feeder must match the wire-size range, drive-roll configuration, and voltage class of the power source. Boom and bench feeders trade off portability against duty cycle.
Warranty
5 Years
From the manufacturer
The self propelled, modular Cruiser travel carriage, used with the Power Wave AC/DC 1000 SD power source, can deliver deposition rates up to 30 lbs (13.61 kg) per arc, per hour for butt and fillet joints on lengthy plate welding applications common in bridge or barge decking, large tank fabrication or shipbuilding.Features
- Reliable Operation – Strong, rigid and stiff especially where you need it most. Sturdy welded base frame. Substantial steel mast stands up to daily construction site use. Simple cast wheels – Equipped with high temperature and slip resistant rubber tires. Robust tube and clamp design – Troublefree feeding component mounting. Adjustable extended length outriggers– Make it easy to guide tractor movement.
- Advanced Control Pendant Removable, lightweight, impact resistant aluminum user interface can be used to save procedures, apply limits and lockouts for any or all controls.
- Common Expendable Parts All drive rolls, nozzles, contact tips and wire straighteners are shared with the MAXsa submerged arc wire drives.
- Multiple Configurations Flexible system allows set up with or without a track and three or four wheel operation.
