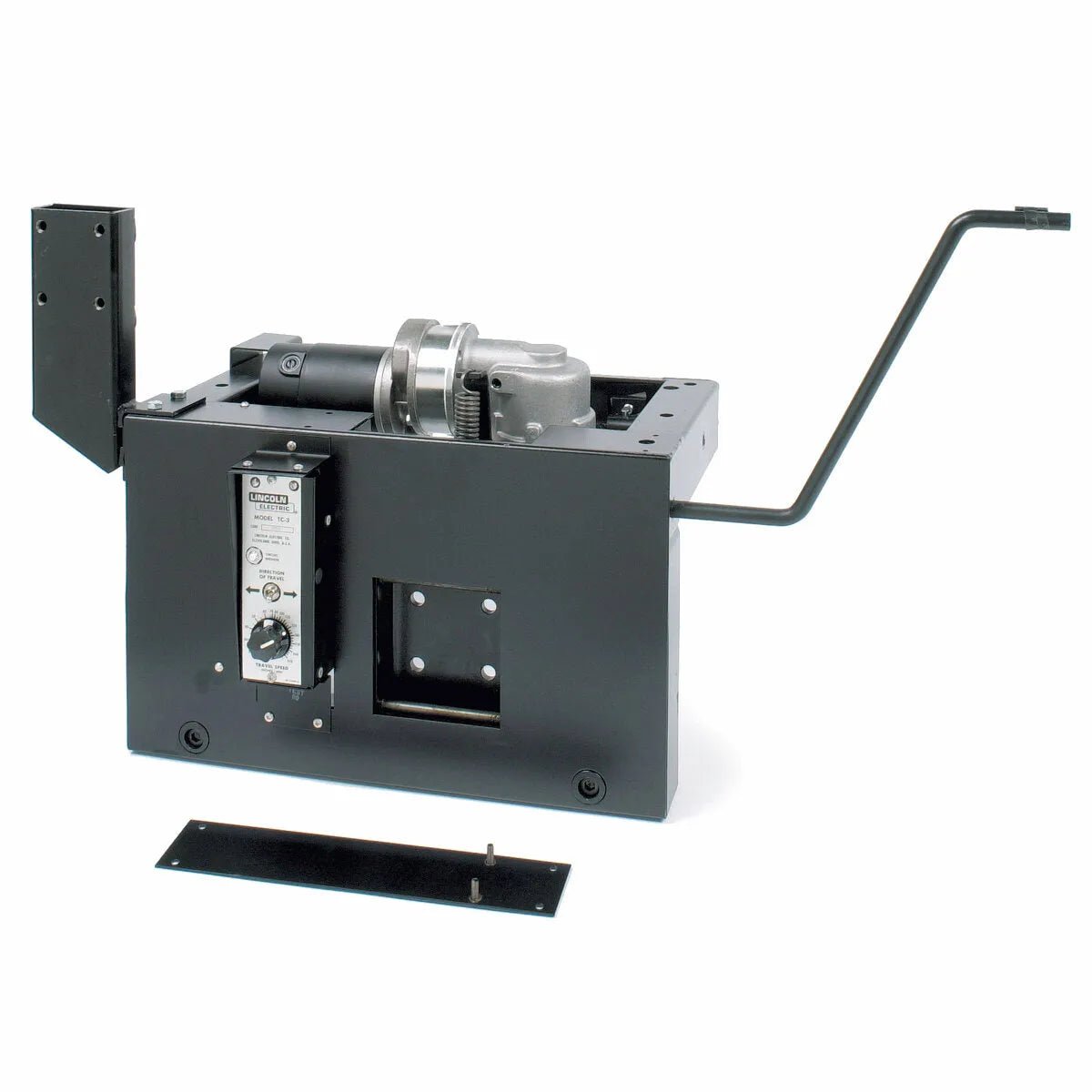

Lincoln TC-3 Self-Propelled High Capacity Travel Carriage K325HCS
Carries head and controls in either direction on a beam of suitable length. It operates either automatically with the weld controls or manually. The speed range, set with a continuous speed control without gear changes, is 5-75 ipm (.1-1.9 m/min). Requires 115V AC, 60 or 50 hertz power available from Lincoln power sources. For tandem arc (2 or 3 heads) and Twinarc-tandem arc (up to 4 wires) installations.Features
- "The TC-3 travel carriage allows the mounting of up to two feed heads/ controllers and wire reels to a beam for basic hard automation installations."
- Use with NA-3, NA-4, NA-5 controllers for hard automation side beam applications
