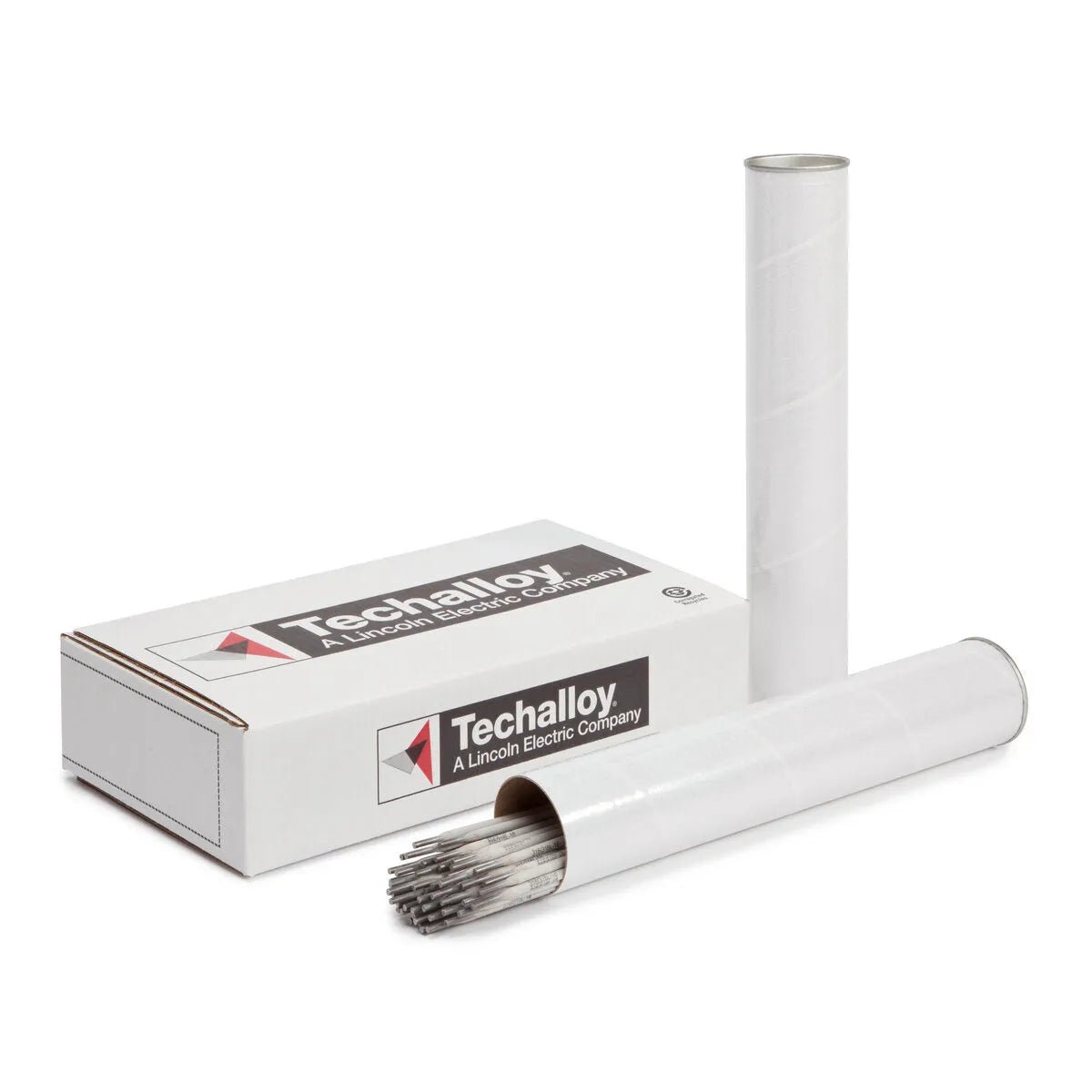

Lincoln Tech Rod 117 is an AWS A5.11/A5.11M ENiCrCoMo-1 SMAW stick electrode family with 100 ksi minimum tensile and DC+ only, all positions operation. WeldingMart stocks 4 package and diameter variants of this grade, all sharing the same AWS classification - select the diameter and package format that fits your application below.
ENiCrCoMo-1 is an AWS A5.11 nickel-chromium-cobalt-molybdenum SMAW electrode (~52 Ni / 22 Cr / 12.5 Co / 9 Mo / UNS W86117) with 100 ksi minimum tensile, designed for welding Inconel 617 (UNS N06617) and similar high-temperature nickel-cobalt alloys used in gas turbine combustors, heat-treatment furnaces, and ultra-supercritical power generation operating above 1800 deg F. The cobalt addition extends elevated-temperature creep strength. DC+ in all positions.
| AWS classification | AWS A5.11/A5.11M ENiCrCoMo-1 |
|---|---|
| Minimum tensile | 100 ksi minimum |
| Polarity / position | DC+ only, all positions |
| Available diameters | 3/32 in through 1/4 in (varies by package) |
| Package formats | see size variants below |
- Brand-authorized distributor - factory-fresh stock, full warranty pass-through
- Multiple diameter and package variants in stock - select the SKU below that matches your job
- US warehouse fulfillment, 1 business day ship time
- 30-day returns on unopened cartons
