Lincoln Electric TIG Rod 5/32" – 10 lb

SKU: TG276156638
$394.32 $436.20
Lincoln Elite Dealer
Free Shipping
Lowest Price
TECHALLOY® 276 Tungsten Inert Gas Rod designed for use with low carbon, nickel-chromium-molybdenum filler metal used in LNG applications.
AWS / Classification: AWS ERNiCrMo-4
Overview

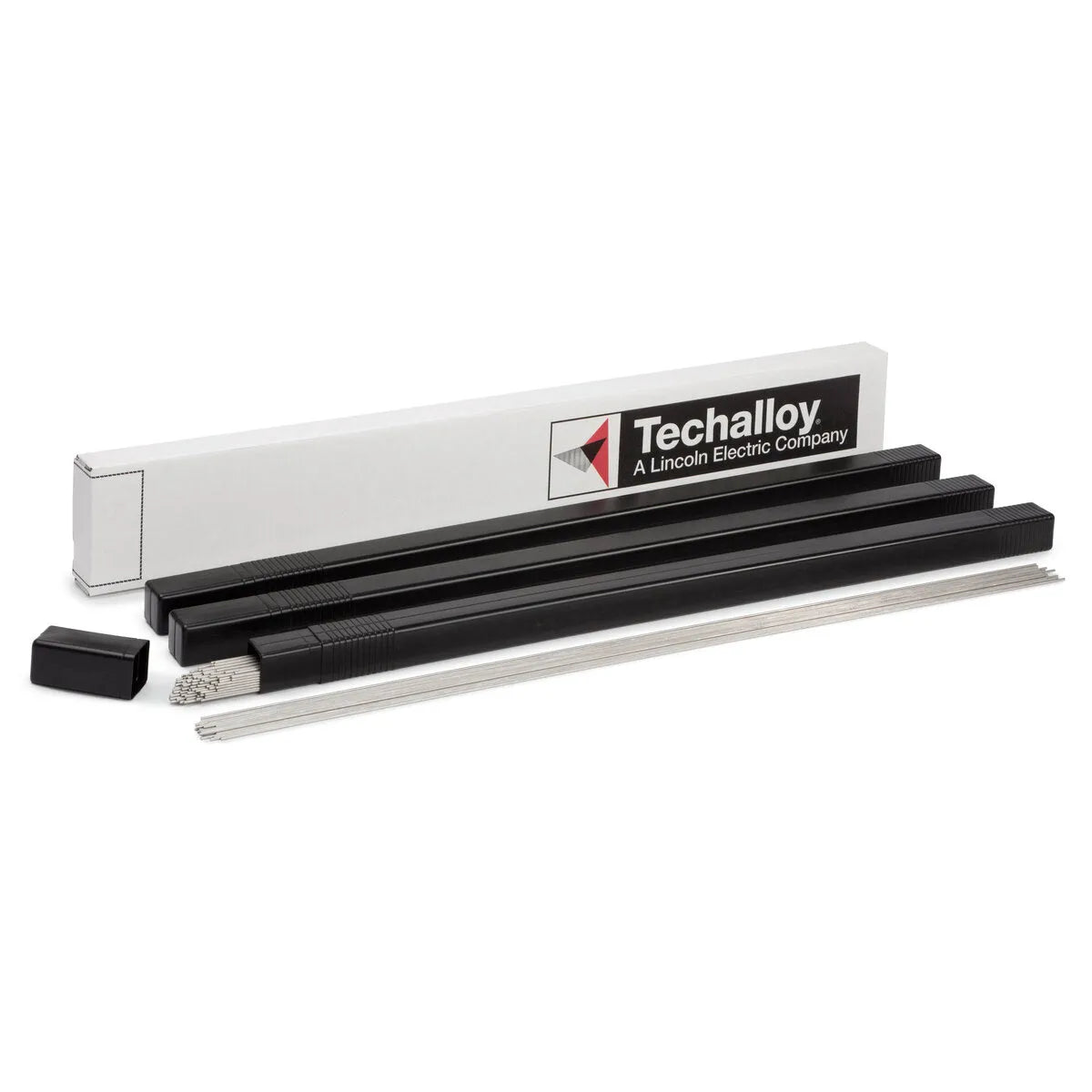

Lincoln TG276156638 Techalloy 276 TIG GTAW Welding Rod, 5/32 in,  10 lb Tube

TECHALLOY® 276 is ideal for welding materials of similar composition due to high molybdenum content, this alloy offers excellent resistance to stress corrosion cracking, pitting and crevice corrosion. Can also be used for dissimilar welding between nickel base alloys and stainless steels for cladding operations.

Features
  • Used for welding materials of similar composition
  • Due to high molybdenum content, this alloy offers excellent resistance to stress corrosion cracking, pitting and crevice corrosion
  • Q2 Lot® - Certificate showing actual wire composition available online
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.14ERNiCrMo-4
CWB AWS A5.14ERNiCrMo-4
Classification %C%Co%Cr%Cu%Fe%Mn%Mo%Ni%P%S%Si%V%W
ERNiCrMo-4 Requirement 0.02 max.2.5 max.14.5 - 16.50.50 max.4.0 - 7.01.0 max.15.0 - 17.0Remainder0.04 max.0.03 max.0.08 max.0.35 max.3.0 - 4.5
Typical Result 0.01 max.0.0 max.15.5-15.80.01-0.095.5-5.80.515.5-16.158-590.01 max.0.003 max.0.01-0.030.00 max.3.6-4.2
LECO Diameter 5/32 in (4.0 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 5/32
Length (in) 36
