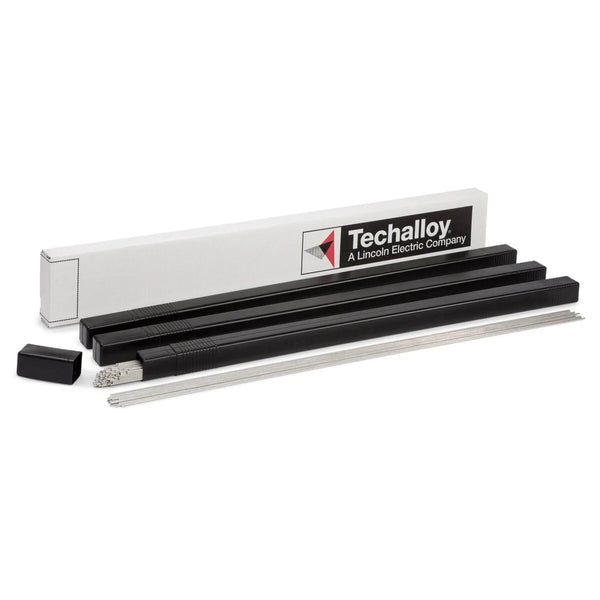

Lincoln TG617093638 Techalloy 617 TIG GTAW Welding Rod, 3/32 in, 10 lb Tube

SKU: TG617093638
$422.76 $468.80
Lincoln Elite Dealer
Free Shipping
Lowest Price
TECHALLOY® 617 Tungsten Inert Gas Rod designed for MIG, TIG and SAW welding of nickel-chrome-cobalt-molybdenum alloys.
AWS / Classification: AWS ERNiCrCoMo-1
Overview
Lincoln TG617093638 Techalloy 617 TIG GTAW Welding Rod, 3/32 in,  10 lb Tube

TECHALLOY® 617 ideal for use when optimum strength and oxidation resistance are required at temperatures from 1500°F (815°C) up to 2100°F (1150°C).

Features
  • The weld metal provides optimum strength and oxidation resistance from 1500°F (815°C) up to 2100°F (1150°C)
  • Q2 Lot® - Certificate showing actual wire composition available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.14ERNiCrCoMo-1
CWB AWS A5.14ERNiCrCoMo-1
Classification %Al%C%Co%Cr%Cu%Fe%Mn%Mo%Ni%P%S%Si%Ti
ERNiCrCoMo-1 Requirement 0.8 - 1.50.05 - 0.1510.0 - 15.020.0 - 24.00.50 max.3.0 max.1.0 max.8.0 - 10.0Remainder0.03 max.0.015 max.1.0 max.0.60 max.
Typical Result 1.0-1.40.06-0.0710.8-11.621.5-22.90.02 max.0.3-0.90.4 max.8.7-8.854-550.003 max.0.003 max.0.3 max.0.31-0.45
LECO Diameter 3/32 in (2.4 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 3/32
Length (in) 36
