Lincoln Electric TIG Rod 1/8" – 10 lb

SKU: TG622125638
$460.75 $466.40
Lincoln Elite Dealer
Free Shipping
Lowest Price
TECHALLOY® 622 Tungsten Inert Gas Rod is a nickel based alloy with chromium, molybdenum, and tungsten as the principal alloying elements designed for cladding overlay as well as thermal spray applications.
AWS / Classification: AWS ERNiCrMo-10
Overview

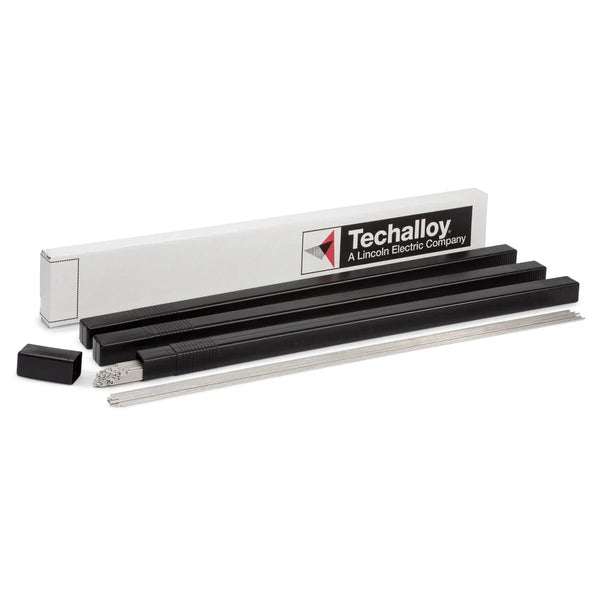

Lincoln TG622125638 Techalloy 622 TIG GTAW Welding Rod, 1/8 in, 10 lb Tube

TECHALLOY® 622 provides excellent corrosion resistance in oxidizing as well as reducing media in a wide variety of chemical process environments and the wire offers an outstanding resistance to stress corrosion cracking, pitting and crevice corrosion operations.

Features
  • Excellent corrosion resistance in oxidizing as well as reducing media in a wide variety of chemical process environments
  • Outstanding resistance to stress corrosion cracking, pitting and crevice corrosion
  • Q2 Lot® - Certificate showing actual wire composition available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.14ERNiCrMo-10
CWB AWS A5.14ERNiCrMo-10
Classification %C%Co%Cr%Cu%Fe%Mn%Mo%Ni%P%S%Si%V%W
ERNiCrMo-10 Requirement 0.015 max.2.5 max.20.0 - 22.50.50 max.2.0 - 6.00.50 max.12.5 - 14.5Remainder0.02 max.0.010 max.0.08 max.0.35 max.2.5 - 3.5
Typical Result 0.006-0.0100.1 max.21.4-22.30.07 max.4.40.02-0.2013.9-14.0560.003 max.0.003 max.0.03-0.070.02 max.3.0-3.3
LECO Diameter 1/8 in (3.2 mm)
LECO Package (3) 10 lb Tube
Diameter (in) 1/8
Length (in) 36
